SZ-60 KH EFI (53RE2PUD050) - Cub Cadet 60" Tank Zero-Turn Mower, Kohler EFI (2015) Control Group Parts Diagram

60" Tank Zero-Turn Mower, Kohler EFI

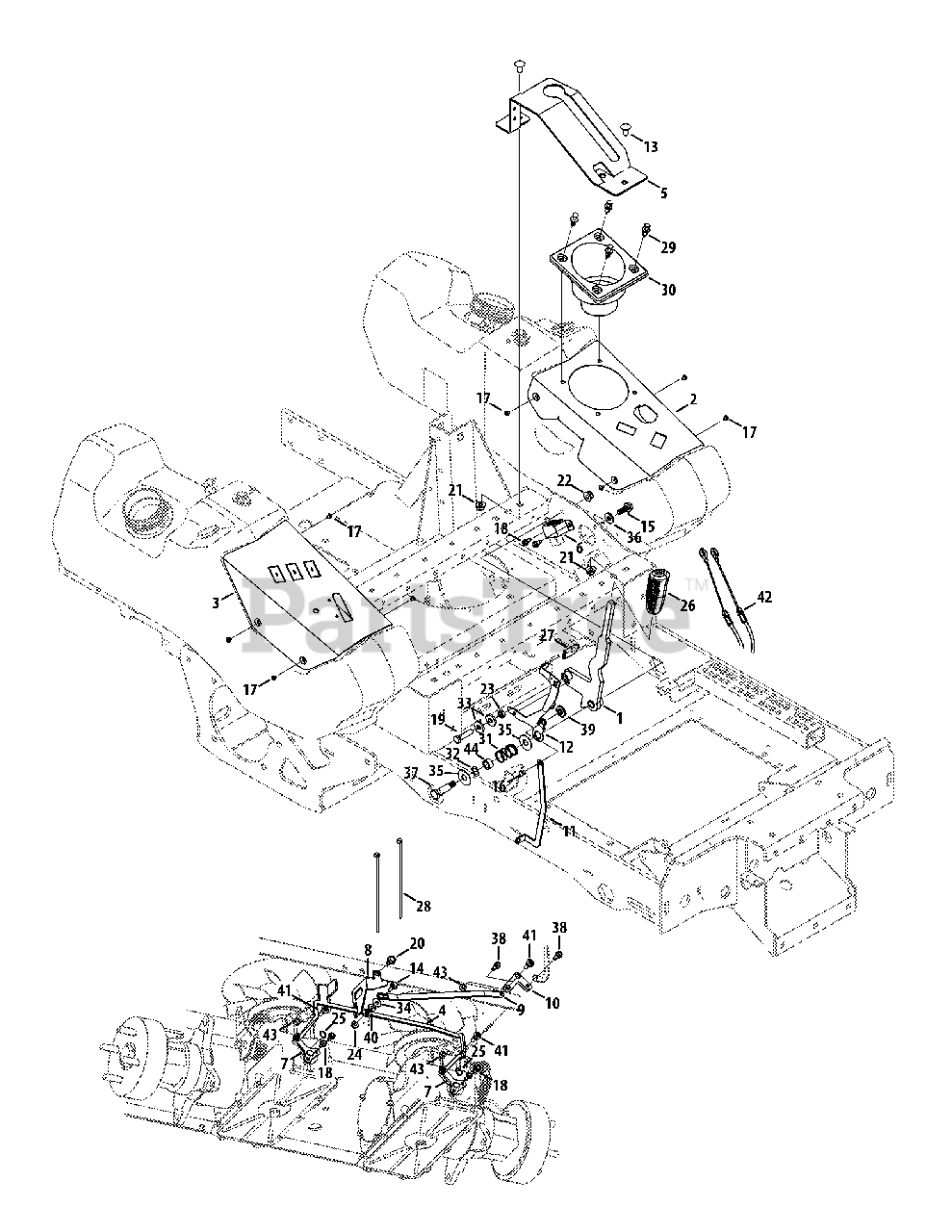

Control Group Parts Diagram

  • Title
1

Cub Cadet 680-00339-0637

Brake Handle Assembly

$59.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-08123-4021

LH Control Panel

$41.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-10024-4021

RH Control Panel

$72.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-09587A

Dump Valve Actuator Bracket

$21.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-09592-0637

Boot Brake Bracket

$36.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-09604-0637

Brake Switch Mount

$19.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-09665-0637

Transmission Bypass Lever
(Superseded to 703E09665)

$6.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-09701-0637

Neutral Switch Bracket
(Superseded to 703E09701)

$16.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-09703

Transmission Actuator Arm

$44.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-09731

Neutral Pivot Control Lever

$10.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-09739A

Neutral Arm

$18.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-09912

Dump Valve Release Lever

$52.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-0389

Carriage Bolt, 3/8-16 x .75

$4.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-04666

Hex Flange Screw, 1/4-20 x .75

$6.99

$

In Stock, only 3 left!

0

15

Cub Cadet 710-04683C

Screw, 3/8-16 x 1.00

$6.49

$

In Stock, only 4 left!

0

16

Cub Cadet 710-05132

Screw, M6 x 8mm

$3.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-05421

Machine Screw, #10-32 x .25

$3.99

$

In Stock, only 3 left!

0

18

Cub Cadet 710-0599

Hex Flange Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-06021

Hex Cap Screw, 3/8-16 x 1.50

$3.99

$

In Stock, Qty 13

0

20

Cub Cadet 710-0607

Screw, 5/16-18 x .50

$6.99

$

In Stock, Qty 9

0

21

Cub Cadet 712-04065

Nut, 3/8-16, Flangelock

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 912-0431

Nut, 3/8-16, Flangelock

$4.99

$

In Stock, Qty 20+

0

23

Cub Cadet 912-3008

Jam Nut, 3/8-16

$4.99

$

In Stock, Qty 16

0

24

Cub Cadet 912-3027

Nut, 1/4-20, Hexflange

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 916-0114

Retainer Ring

$6.99

$

In Stock, only 2 left!

0

26

Cub Cadet 720-04139B

Grip, .50 ID

$18.99

$

In Stock, Qty 10

0

27

Cub Cadet 720-0433

Grip, Seat, Adjustment (Yellow)

$10.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 728-0199

Rivet, .3125

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 731-08438

Cup Holder

$10.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 732-04481

Compression Spring, .844 x .97 x 1.5

$5.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 936-0232

Washer, Wave, .531 x .781 x .013
(Superseded to 736-0232)

$4.99

$

In Stock, Qty 12

0

33

Cub Cadet 736-0258

Flat Washer, .385 x 1.00 x .135

$4.49

$

In Stock, only 4 left!

0

34

Cub Cadet 736-0342

Flat Washer, .283 x .750 x .030

$7.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 736-04237

Flat Washer, .508 x 1.325 x .040

$3.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 936-3004

Flat Washer, .406 x .875 x .105
(Superseded to 736-3004)

$

$

Not available

37

Cub Cadet 738-0213

Shoulder Screw, .498 x 1.445

$7.99

$

In Stock, only 2 left!

0

38

Cub Cadet 738-04425

Shoulder Screw, .342 x .335, 1/4-28

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 738-04446

Shoulder Spacer, M6

$6.99

$

In Stock, only 3 left!

0

40

Cub Cadet 738-04483

Shoulder Spacer, .375 x .625 x .20

$3.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 738-0706C

Shoulder Screw, .375 x .280, 1/4-14
(Superseded to 738-0706D)

$4.49

$

In Stock, only 2 left!

0

42

Cub Cadet 946-05103

Brake Cable
(Superseded to 946-05103A)

$42.99

$

In Stock, only 1 left!

0

43

Cub Cadet 750-05297

Spacer, .256 x .500 x .240

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 750-06360

Spacer, .51 x .75 x .390

$6.49

$

Usually ships in 3-6 days

0
