SZ-54 KW (53YI2PUC050) - Cub Cadet 54" Tank Zero-Turn Mower, Kawasaki (2015) Mower Deck 54-Inch Parts Diagram

54" Tank Zero-Turn Mower, Kawasaki

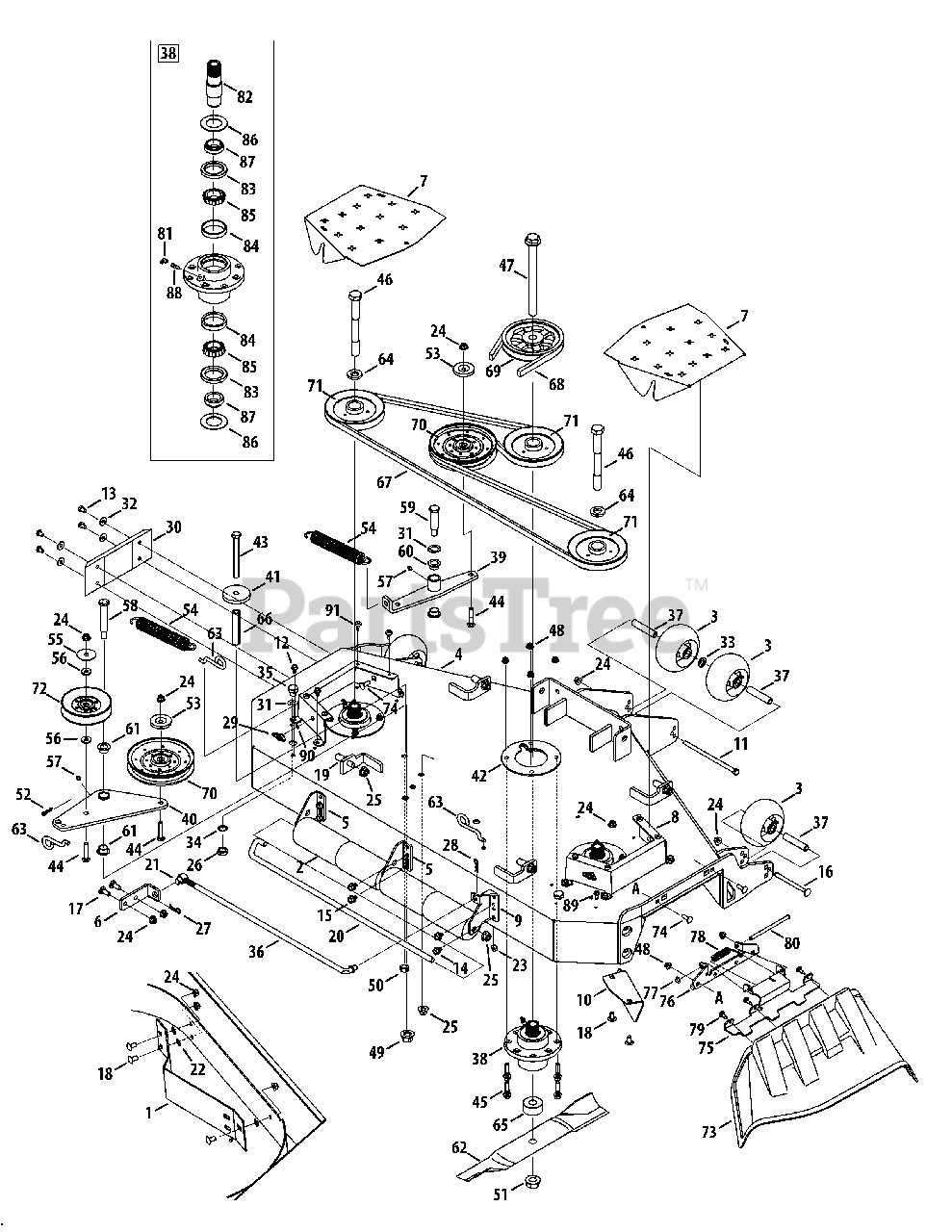

Mower Deck 54-Inch Parts Diagram

  • Title

1

Cub Cadet 02005693-0637

Baffle, 54" Adjustment
(Superseded to 703-26732-0637)

$36.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 631-05115

Anti-Scalp Roller Assembly

$26.99

$

In Stock, only 3 left!

0

3

Cub Cadet 634-3159

Complete Wheel, 5.00 Dia.

$34.99

$

In Stock, Qty 20+

0

4

Cub Cadet 680-00334-4021

54" Deck
(Superseded to 759-05120B)

$1424.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-09137-0637

Rear Roller Mount Bracket
(Superseded to 703-09137A-0637)

$23.99

$

In Stock, only 3 left!

0

6

Cub Cadet 703-09380-0637

Deck Stabilizer Mount Bracket

$23.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-09922-4021

Deck Belt Cover

$73.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-09921-4021

Deck Belt Cover Bracket

$73.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-09579-0637

Rear Roller Bracket, RH

$33.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-09593-0637

Chute Baffle
(Superseded to 703-09593A-0637)

$28.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-04692

Hex Cap Screw, 3/8-16 x 7.25

$9.49

$

In Stock, only 1 left!

0

12

Cub Cadet 710-0607

Screw, 5/16-18 x .500

$6.99

$

In Stock, Qty 12

0

13

Cub Cadet 710-06156

Screw, 5/16-18 x .500

$5.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-0623

Screw, 3/8-16 x .750

$4.49

$

In Stock, only 2 left!

0

15

Cub Cadet 710-0773

Screw, 3/8-16 x .500

$7.49

$

In Stock, only 3 left!

0

16

Cub Cadet 710-1649

Carriage Screw, 3/8-16 x 4.50

$17.99

$

In Stock, only 2 left!

0

17

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .750

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 711-05604

Pin, 1/2-13 x .625 x 1.2

$11.99

$

In Stock, Qty 14

0

20

Cub Cadet 711-05664

J-Hook w/ Threaded Roller

$22.99

$

In Stock, only 1 left!

0

21

Cub Cadet 911-0770

Ferrule

$

$

Not available

22

Cub Cadet 712-0229

Push Nut, 3/8

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-0266A

Jam Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 11

0

24

Cub Cadet 712-04065

Nut, 3/8-16, Flangelock

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 712-04150

Nut, 1/2-13, Flangelock

$4.49

$

In Stock, only 1 left!

0

26

Cub Cadet 912-0641

Hex Nut, M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

27

Cub Cadet 914-0145

Click Pin, .092 x 1.64
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 914-04023

Internal Cotter Pin
(Superseded to 714-04023)

$4.49

$

In Stock, only 4 left!

0

29

Cub Cadet 720-04122

Wing Knob

$6.99

$

In Stock, Qty 5

0

30

Cub Cadet 731-10336

Skid Guard Plate

$67.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 936-0287

Washer, .793 x 1.24 x .06
(Superseded to 736-0287)

$

$

Not available

32

Cub Cadet 736-0371

Flat Washer, .343 x .880 x .062

$4.49

$

In Stock, only 3 left!

0

33

Cub Cadet 736-04296

Flat Washer, .632 x 1.00 x .160

$3.49

$

In Stock, only 1 left!

0

34

Cub Cadet 936-0760

Lock Washer, 17 x 23.8 x 1.95

$4.49

$

In Stock, Qty 13

0

35

Cub Cadet 738-04146

Plug, Screw, M16-1.5

$9.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 747-06273

Deck Support Rod, 1/2" Dia.

$58.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 750-3193

Wheel Spacer

$18.99

$

In Stock, Qty 20+

0

38

Cub Cadet 918-05132

Spindle Assembly

$354.99

$

In Stock, only 4 left!

0

39

Cub Cadet 680-00167A-0637

Deck Idler Arm
(Superseded to 680E00167A)

$74.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 680-00319-0637

Idler Assembly
(Superseded to 680E00319)

$117.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 703-08855-0637

Spacer, .5375 x 2.75 x .375
(Superseded to 703E08855)

$17.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 703-09434-0637

Spindle Support Plate

$23.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 710-0382

Hex Cap Screw, 1/2-13 x 5.00

$12.99

$

In Stock, only 2 left!

0

44

Cub Cadet 710-04157

Screw, 3/8-16 x 2.00

$8.99

$

In Stock, only 1 left!

0

45

Cub Cadet 710-04831A

Bolt, 5/16-18 x 1.25

$7.99

$

In Stock, Qty 12

0

46

Cub Cadet 710-05387

Hex Cap Screw, 3/4-16 x 7.00

$14.99

$

In Stock, only 2 left!

0

47

Cub Cadet 710-05388

Hex Cap Screw, 3/4-16 x 9.00

$32.99

$

In Stock, Qty 5

0

48

Cub Cadet 712-04063

Nut, 5/16-18, Flangelock

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet 712-04327

Nut, 5/8-18, Flangelock

$7.49

$

Usually ships in 3-6 days

0

50

Cub Cadet 712-3022

Nut, 1/2-13, Hexlock

$3.99

$

In Stock, Qty 8

0

51

Cub Cadet 712-3078

Nut, 3/4-16, Flangelock

$9.99

$

In Stock, Qty 20+

0

52

Cub Cadet 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

53

Cub Cadet 721-04516

Pulley Cap

$14.99

$

In Stock, only 2 left!

0

54

Cub Cadet 732-04911

Extension Spring, 1.248 x 8.5

$15.99

$

In Stock, only 2 left!

0

55

Cub Cadet 736-3040

Washer, .406 x 1.92 x .060

$6.49

$

In Stock, Qty 8

0

56

Cub Cadet 736-3052

Washer, .406 x 1.00 x .105

$4.49

$

In Stock, Qty 20+

0

57

Cub Cadet 937-0146

Grease Fitting

$5.49

$

In Stock, only 2 left!

0

58

Cub Cadet 738-05030

Shoulder Bolt, 1.0 x 3.15, 5/8-18

$27.99

$

In Stock, only 1 left!

0

59

Cub Cadet 938-3110

Shoulder Bolt, .750 x 2.23, 1/2-13

$33.99

$

In Stock, Qty 5

0

60

Cub Cadet 741-0338

Flange Bearing, .75 x .52

$9.49

$

In Stock, only 2 left!

0

61

Cub Cadet 741-04552

Flange Bearing, 1.00 x .75

$9.49

$

In Stock, only 2 left!

0

62

Cub Cadet 942-04416

Hi-Lift Blade, 19.0

$28.99

$

In Stock, Qty 20+

0

63

Cub Cadet 747-05658

Spring Rod Hook

$8.49

$

In Stock, only 2 left!

0

64

Cub Cadet 750-05553

Spacer, .812 x .218

$9.99

$

In Stock, Qty 20+

0

65

Cub Cadet 750-05617

Spacer, .760 x 2.00 x .925

$12.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 750-3213

Spacer, .405 x .75 x 3.875

$15.99

$

In Stock, only 2 left!

0

67

Cub Cadet 954-04327

Deck Belt

$119.99

$

In Stock, only 1 left!

0

68

Cub Cadet 954-04328

V-Belt

$127.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 756-04485

Pulley, 6.96 OD x .750 ID

$171.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 756-04487

Idler Pulley

$66.99

$

In Stock, only 1 left!

0

71

Cub Cadet 756-04500

Spindle Pulley

$34.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 756-04522

Idler Pulley

$39.99

$

In Stock, Qty 5

0

73

Cub Cadet 631-05176

Discharge Chute Assembly
(Superseded to 631-05544)

$106.99

$

In Stock, only 1 left!

0

74

Cub Cadet 710-0276

Carriage Bolt, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 14

0

75

Cub Cadet 703-09625A-0637

Chute Bracket

$52.99

$

In Stock, only 1 left!

0

76

Cub Cadet 703-09626

Chute Bracket
(Superseded to 703-09626A)

Variations

Cub Cadet 703-09626-0637

USE 703-09626A-0637 BRKT-CHUT - POWDER BLACK (0637)

$25.99

$

In Stock, only 1 left!

0

$20.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 726-04009

Push Cap
(Superseded to 726-04009A)

$7.49

$

In Stock, only 1 left!

0

78

Cub Cadet 732-05128A

Torsion Spring

$4.49

$

In Stock, only 1 left!

0

79

Cub Cadet 738-04549A

Shoulder Screw, 1/4-20

$7.49

$

In Stock, only 2 left!

0

80

Cub Cadet 747-06318

Chute Rod
(Superseded to 747-06318A)

$10.99

$

In Stock, only 1 left!

0

81

Cub Cadet 737-3001

Grease Fitting, 45 degree, 1/4-28

$12.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 911-05758

Spindle Shaft

$71.99

$

In Stock, only 1 left!

0

83

Cub Cadet 921-0385

Seal, Oil

$27.99

$

In Stock, only 2 left!

0

84

Cub Cadet 941-3050

Cup Bearing

$23.99

$

In Stock, only 2 left!

0

85

Cub Cadet 941-3051

Cone Bearing

$48.99

$

In Stock, only 2 left!

0

86

Cub Cadet 736-04642

Washer, 1.50 x 2.52 x .075

$7.49

$

In Stock, only 2 left!

0

87

Cub Cadet 750-05695

Ring, Seal

$32.99

$

Usually ships in 3-6 days

0

88

Cub Cadet 737-04373

Straight Adapter Fitting

$11.99

$

In Stock, only 4 left!

0

89

Cub Cadet 710-0599

Hex Flange Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

90

Cub Cadet 726-0201

Speed Nut, .3125

$6.99

$

Usually ships in 3-6 days

0

91

Cub Cadet 735-0271A

Bumper, .62 Dia. x .3

$8.99

$

In Stock, only 4 left!

0
