SZ-54 KH (53RN2PUC050) - Cub Cadet 54" Tank Zero-Turn Mower, Kohler (2014) Pedal Controls Parts Diagram

54" Tank Zero-Turn Mower, Kohler

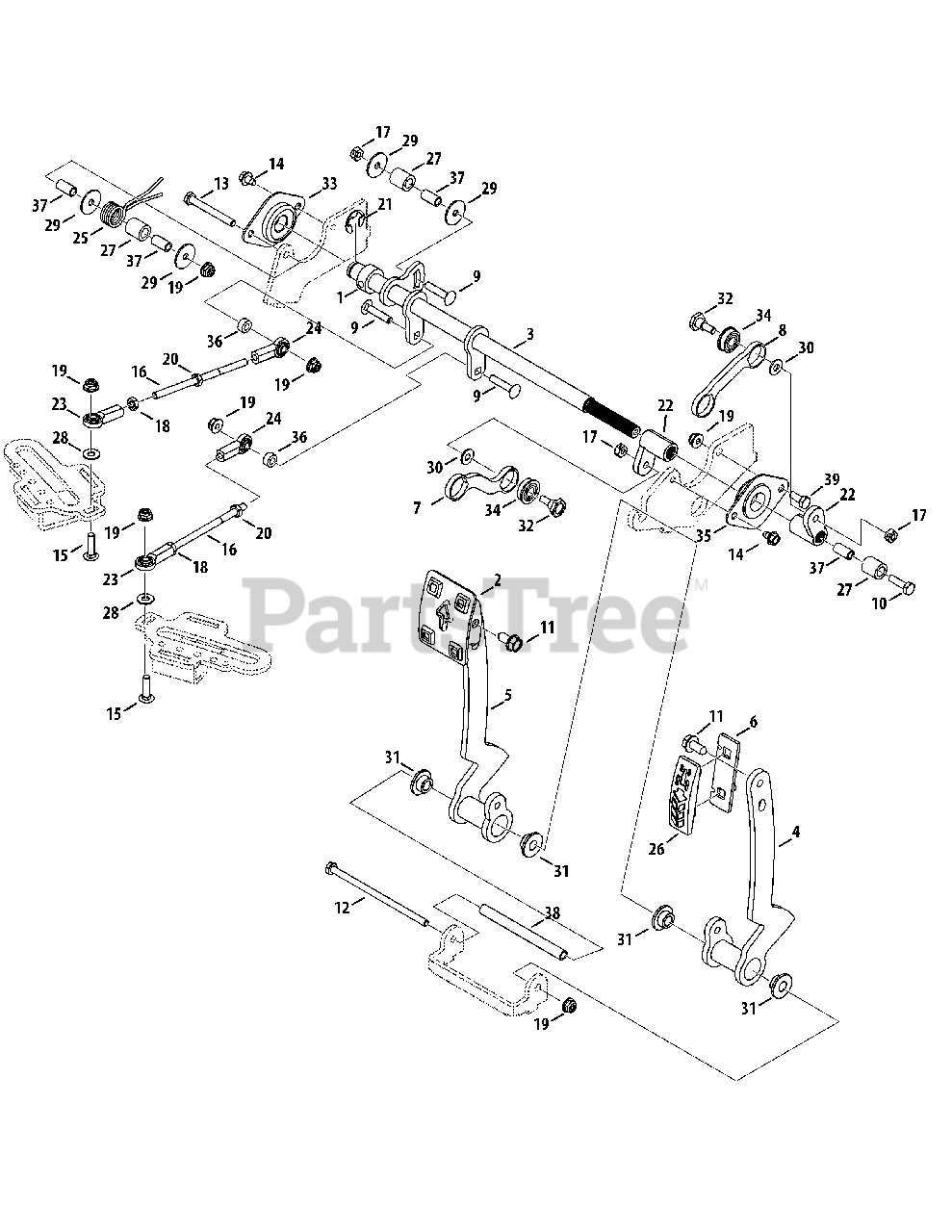

Pedal Controls Parts Diagram

  • Title

1

Cub Cadet 01006350

Shaft Collar, .625 x 1.0 x .438

$24.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-04752-0637

Forward Pedal Assembly

$58.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680-00145

Speed Control Arm Assembly

$63.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 680-00187A

Reverse Pedal Assembly
(Superseded to 680-00187B)

$63.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 680-00189A

Forward Pedal Assembly
(Superseded to 680Z00189B)

$63.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-08518

Reverse Pedal Bracket

$16.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-08782A

Forward Pedal Link

$21.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-08783A

Reverse Pedal Link

$12.99

$

In Stock, only 1 left!

0

9

Cub Cadet 710-0111

Carriage Screw, 1/4-20 x 1.25

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-1062

Hex Cap Screw, 1/4-20 x 1.25

$6.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-05418

Hex Cap Screw, 1/4-20 x 5.00

$

$

Not available

13

Cub Cadet 710-0641

Hex Cap Screw, 1/4-20 x 2.25

$4.49

$

In Stock, only 2 left!

0

14

Cub Cadet 710-0653

Screw, 1/4-20 x .375

$4.49

$

In Stock, Qty 13

0

15

Cub Cadet 710-0932A

Carriage Screw, 1/4-20 x 1.00

$3.99

$

In Stock, only 4 left!

0

16

Cub Cadet 711-05493

Speed Control Link Rod

$17.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 912-0291

Nut, 1/4-20, Hexlock
(Superseded to 712-0291)

$

$

Not available

18

Cub Cadet 712-0314

Jam Nut, 1/4-28

$3.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 712-04064

Nut, 1/4-20, Flangelock

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-04326

Jam Nut, 1/4-28, LH

$14.99

$

In Stock, only 1 left!

0

21

Cub Cadet 716-0106A

E-Ring, .625

$5.49

$

In Stock, only 2 left!

0

22

Cub Cadet 718-04858

Pedal Shaft Arm
(Superseded to 718-04858A)

$20.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 723-04077

Rod End, 1/4-28

$22.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 723-04088

Rod End, 1/4-28, LH

$26.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 732-04955

Torsion Spring, .70 ID

$4.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 735-04113

Foot Pad

$8.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 750-0807

Spacer, .385 x .625 x .700

$6.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 736-04446

Washer, .250 x .630 x .052

$4.49

$

In Stock, only 2 left!

0

29

Cub Cadet 736-04511

Washer, .255 x 1.00 x .060

$3.49

$

In Stock, only 3 left!

0

30

Cub Cadet 936-3020

Washer, .271 x .630 x .065
(Superseded to 736-3020)

$

$

Not available

31

Cub Cadet 738-04503

Shoulder Spacer, .38 x .62 x 1.00

$4.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 738-1023A

Shoulder Screw, .375 x .280, 1/4-20

$4.49

$

In Stock, Qty 5

0

33

Cub Cadet 741-04566

Ball Bearing, .625

$15.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 741-04568

Bearing, .375 x .875 x .281

$38.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 741-04569

Ball Bearing, .750

$25.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 750-05297

Spacer, .256 x .500 x .240

$4.49

$

In Stock, only 3 left!

0

37

Cub Cadet 750-05369

Spacer, .260 x .375 x .75

$5.49

$

Usually ships in 3-6 days

0

38

Cub Cadet 750-05666

Spacer, .255 x .375 x 4.28

$16.99

$

In Stock, only 1 left!

0

39

Cub Cadet 710-3015

Hex Cap Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0
