SZ-54 KH (53RN2PUC050) - Cub Cadet 54" Tank Zero-Turn Mower, Kohler (2014) Kohler CV742-3016 Head, Valve & Breather Parts Diagram

54" Tank Zero-Turn Mower, Kohler

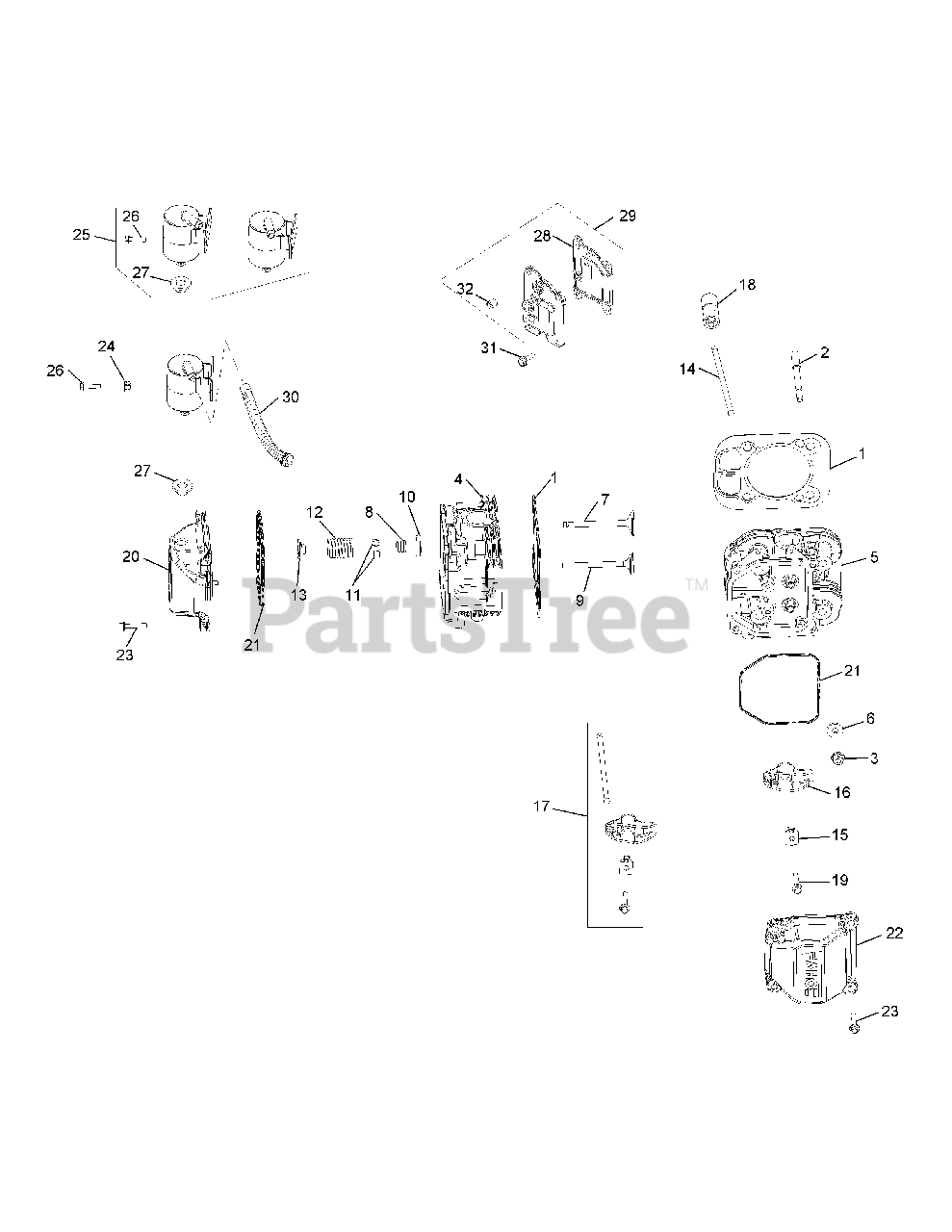

Kohler CV742-3016 Head, Valve & Breather Parts Diagram

  • Title

1

Cub Cadet KH-24-841-04-S

Cylinder Head Gasket Kit

Note: (Inc. Head Mounting Hardware)

$45.99

$

In Stock, Qty 20+

0

2

Cub Cadet KH-24-072-09-S

Stud, M8 x 1.25

$6.49

$

In Stock, only 4 left!

0

3

Cub Cadet KH-24-100-10-S

Flange Nut, M8 x 1.25

$4.49

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-24-318-155-S

#1 Cylinder Head Assembly Kit
(Superseded to KH-24-818-03-S)

$248.99

$

Usually ships in 3-6 days

0

5

Cub Cadet KH-24-318-156-S

#2 Cylinder Head Assembly Kit
(Superseded to KH-24-818-04-S)

$248.99

$

Usually ships in 3-6 days

0

6

Cub Cadet KH-24-468-16-S

Flat Washer, 8.6 mm

$2.49

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-24-017-01

Intake Valve (STD)

$

$

Not available

7

Cub Cadet KH-24-017-02

Intake Valve (.25)

$

$

Not available

8

Cub Cadet KH-25-032-14-S

Valve Band Seal

$11.99

$

In Stock, Qty 8

0

9

Cub Cadet KH-24-016-01

Exhaust Valve (STD)
(Superseded to KH-32-016-01-S)

$15.99

$

In Stock, only 4 left!

0

9

Cub Cadet KH-24-016-02

Exhaust Valve (.25)

$

$

Not available

10

Cub Cadet KH-235011-S

Spring Retainer

$6.49

$

In Stock, only 2 left!

0

11

Cub Cadet KH-12-755-03

Retainer Kit

$5.99

$

In Stock, only 2 left!

0

12

Cub Cadet KH-24-089-02

Valve Spring

$

$

Not available

13

Cub Cadet KH-25-173-28-S

Valve Spring Cap

$8.49

$

In Stock, Qty 5

0

14

Cub Cadet KH-24-411-05

Push Rod

$

$

Not available

15

Cub Cadet KH-24-599-02-S

Rocker Arm Pivot

$2.49

$

In Stock, Qty 8

0

16

Cub Cadet KH-25-186-01

Rocker Arm

$

$

Not available

17

Cub Cadet KH-24-755-66

Valve Train Kit

$

$

Not available

18

Cub Cadet KH-25-351-11-S

Hydraulic Valve Lifter Kit

$23.99

$

In Stock, only 4 left!

0

19

Cub Cadet KH-M-640034-S

Flange Screw, M6 x 1.0 x 34

$2.49

$

In Stock, Qty 18

0

20

Cub Cadet KH-24-755-142-S

Valve Cover Kit

$38.99

$

In Stock, only 1 left!

0

21

Cub Cadet KH-24-153-30-S

Valve Cover O-Ring

$11.99

$

In Stock, Qty 7

0

22

Cub Cadet KH-24-755-141-S

Plain Rocker Cover Kit

$35.99

$

In Stock, only 2 left!

0

23

Cub Cadet KH-M-651030-S

Flange Screw, M6 x 1.0 x 30
(Superseded to KH-25-086-797-S)

$2.99

$

Usually ships in 3-6 days

0

24

Cub Cadet KH-24-100-02-S

Plastic Nut

$2.49

$

Usually ships in 2-5 days

0

25

Cub Cadet KH-24-755-241-S

Breather Separator Kit (Inc. 26-27)

$90.99

$

In Stock, Qty 6

0

26

Cub Cadet KH-25-086-157-S

Hi-Lo Hex Flange Screw

$2.49

$

In Stock, only 2 left!

0

27

Cub Cadet KH-25-313-05-S

Rubber Grommet

$5.49

$

In Stock, only 1 left!

0

28

Cub Cadet KH-24-041-67-S

Breather Gasket

$13.99

$

In Stock, Qty 9

0

29

Cub Cadet KH-24-033-03

Breather Cover Kit w/ Gskt. (Inc. 28 & 33)

$

$

Not available

30

Cub Cadet KH-24-326-124-S

Breather Hose

$5.49

$

Usually ships in 2-5 days

0

31

Cub Cadet KH-25-086-396-S

Flange Screw, M6 x 1.0 x 20

$2.49

$

In Stock, only 1 left!

0

32

Cub Cadet KH-25-139-60-S

Pipe Plug, 1/8

$3.49

$

In Stock, only 2 left!

0
