SZ-48 (53AH2PUB250) - Cub Cadet 48" Tank Zero-Turn Mower (2012) Steering Column Parts Diagram

48" Tank Zero-Turn Mower

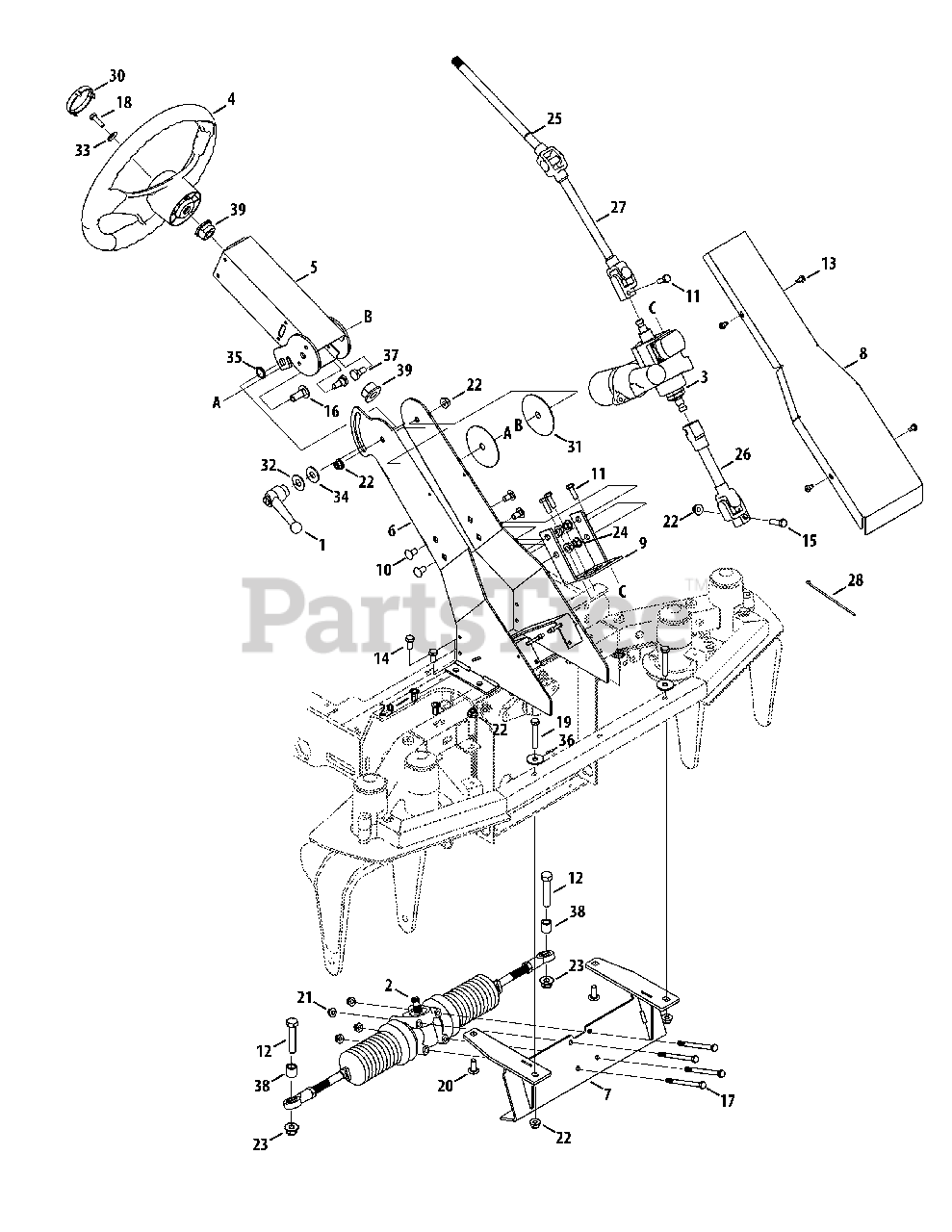

Steering Column Parts Diagram

  • Title

1

Cub Cadet 02005058

Steering Column Adjustment Lever

$72.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 917-04088

Steering Gearbox
(Superseded to 759-05642B)

$1086.99

$

In Stock, only 1 left!

0

2

Cub Cadet 723-05001

Ball Joint

$42.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 918-04994

Power Steering Arm
(Superseded to 759-05682)

$2457.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 925-06705

Module, EPS Control
(Superseded to 759-05682)

$2457.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 631-04556A

Steering Wheel

$95.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 680-00195-0637

Upper Column
(Superseded to 680-00195)

$126.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 680-00203-0637

Base Column
(Superseded to 680-00203A-0637)

$168.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 680-00207-0637

Steering Rack Mount

$98.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-08320-0637

Front Column Cover

$59.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-08626-0637

Power Steering Mount
(Superseded to 703E08626A)

$67.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0389

Carriage Bolt

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-04629

Hex Cap Screw

$3.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-04824

Hex Cap Screw

$8.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-05070A

Screw

$6.99

$

In Stock, Qty 7

0

14

Cub Cadet 710-0514

Hex Cap Screw

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0520

Hex Cap Screw

$4.49

$

In Stock, Qty 5

0

16

Cub Cadet 710-05375

Carriage Bolt

$6.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-05410

Hex Cap Screw

$3.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-0643

Hex Cap Screw

$6.99

$

In Stock, Qty 5

0

19

Cub Cadet 710-0859

Hex Cap Screw

$6.99

$

In Stock, Qty 17

0

20

Cub Cadet 710-3168

Carriage Bolt

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-04063

Nut, Flangelock

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-04065

Nut, Flangelock

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-04150

Nut, Flangelock

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 912-0431

Nut, Flangelock

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 916-0171

Retainer Ring

$5.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 917-04872

Steering Shaft
(Superseded to 759-05642B)

$1086.99

$

In Stock, only 1 left!

0

27

Cub Cadet 917-04905

Steering Shaft

$228.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 728-04062A

Rivet
(Superseded to 728-04062B)

$4.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 731-04039

Cap

$8.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 731-08236

Column Wear Plate

$17.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 936-0179

Washer
(Superseded to 736-0179)

$4.99

$

In Stock, only 2 left!

0

33

Cub Cadet 736-0242

Bevel Washer

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 736-04602

Washer

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 936-0760

Lock Washer

$4.49

$

In Stock, Qty 13

0

36

Cub Cadet 736-3052

Washer

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 738-0143

Shoulder Bolt 3/8-16

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 748-0190

Spacer

$6.49

$

In Stock, Qty 11

0

39

Cub Cadet 948-0209

Flange Bearing

$22.99

$

Usually ships in 3-6 days

0
