SZ-48 (53AH2PUB050) - Cub Cadet 48" Tank Zero-Turn Mower (2013) Kohler CV680-3042 Oil Pan & Lubrication Parts Diagram

48" Tank Zero-Turn Mower

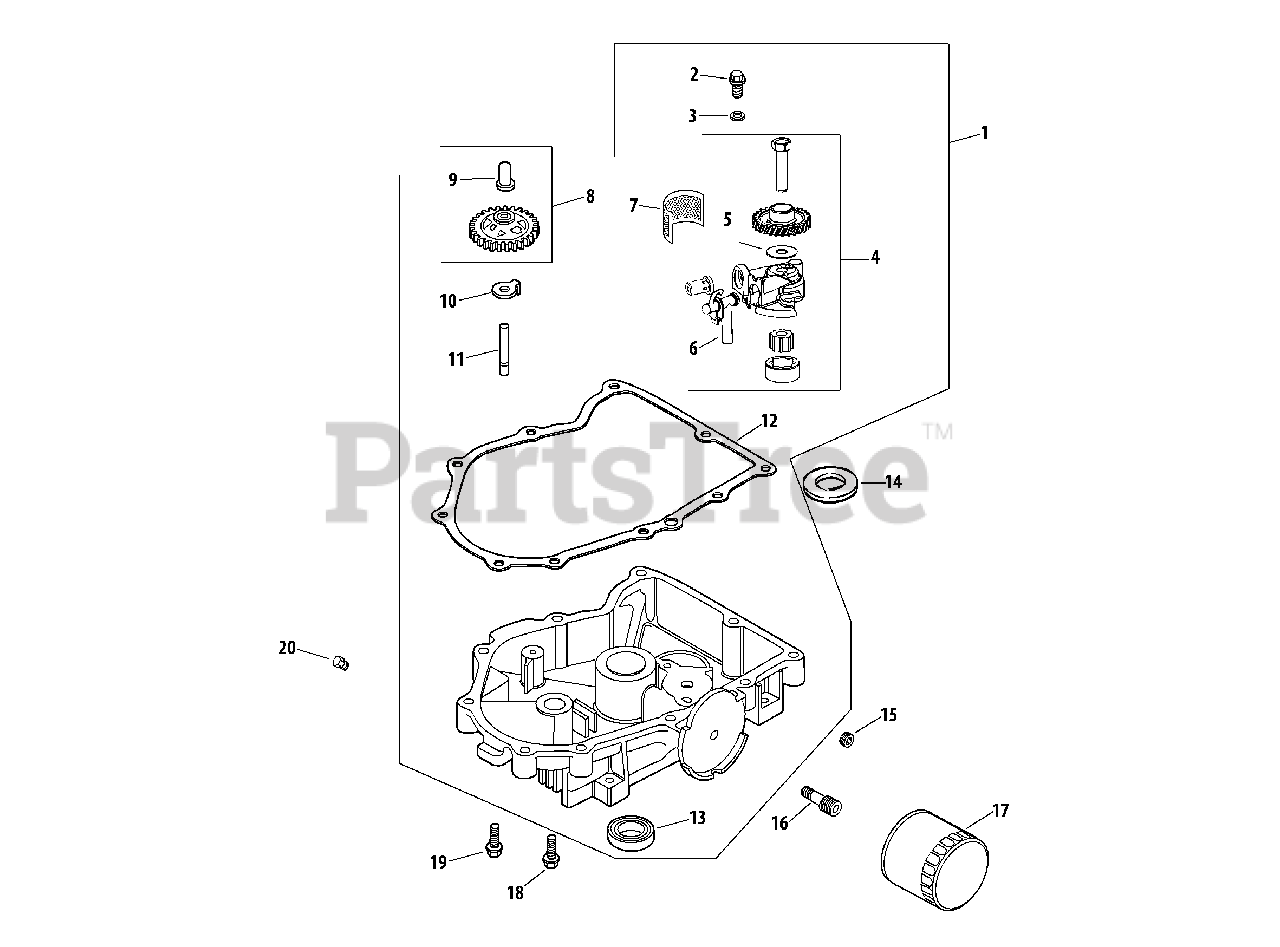

Kohler CV680-3042 Oil Pan & Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-24-199-21-S

Oil Pan Assembly Kit (Inc. 2-10)
(Superseded to KH-24-199-35-S)

$337.99

$

In Stock, only 1 left!

0

2

Cub Cadet KH-M-645025-S

Screw
(Superseded to KH-25-086-395-S)

$2.49

$

In Stock, only 3 left!

0

3

Cub Cadet KH-M-631005

Washer

$

$

Not available

4

Cub Cadet KH-24-393-53-S

Oil Pump Assembly Kit (Inc. 5 & 6)

$

$

Not available

5

Cub Cadet KH-24-153-01

O-Ring

$

$

Not available

6

Cub Cadet KH-24-381-11-S

Oil Pick-Up Tube (CV)

$

$

Not available

7

Cub Cadet KH-24-162-26-S

Oil Screen

$17.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-24-043-12

Governor Gear Kit w/ Pin (Inc. 9)

$

$

Not available

9

Cub Cadet KH-12-380-01

Pin

$

$

Not available

10

Cub Cadet KH-24-448-01-S

Locking Tab

$2.49

$

In Stock, only 2 left!

0

11

Cub Cadet KH-12-144-02

Shaft

$

$

Not available

12

Cub Cadet KH-24-041-54-S

Oil Pan Gasket
(Superseded to KH-24-041-66-S)

$25.99

$

In Stock, Qty 8

0

13

Cub Cadet KH-25-032-06-S

Seal

$10.99

$

In Stock, Qty 20+

0

14

Cub Cadet KH-24-422-03-S

Thrust Shim

$

$

Not available

15

Cub Cadet KH-25-139-62-S

Pipe Plug

$3.49

$

In Stock, only 2 left!

0

16

Cub Cadet KH-24-136-01

Oil Filter Nipple
(Superseded to KH-24-136-09-S)

$6.99

$

Usually ships in 3-6 days

0

17

Cub Cadet KH-12-050-01-S

Oil Filter

$13.99

$

In Stock, Qty 20+

0

18

Cub Cadet KH-24-086-17-S

Hex Flange Screw

$2.49

$

In Stock, Qty 5

0

19

Cub Cadet KH-24-086-17-S

Hex Flange Screw

$2.49

$

In Stock, Qty 5

0

20

Cub Cadet KH-52-139-02

Plug

$

$

Not available
