SZ-48 (53AH2PUB050) - Cub Cadet 48" Tank Zero-Turn Mower (2013) Kohler CV680-3042 Head, Valve & Breather Parts Diagram

48" Tank Zero-Turn Mower

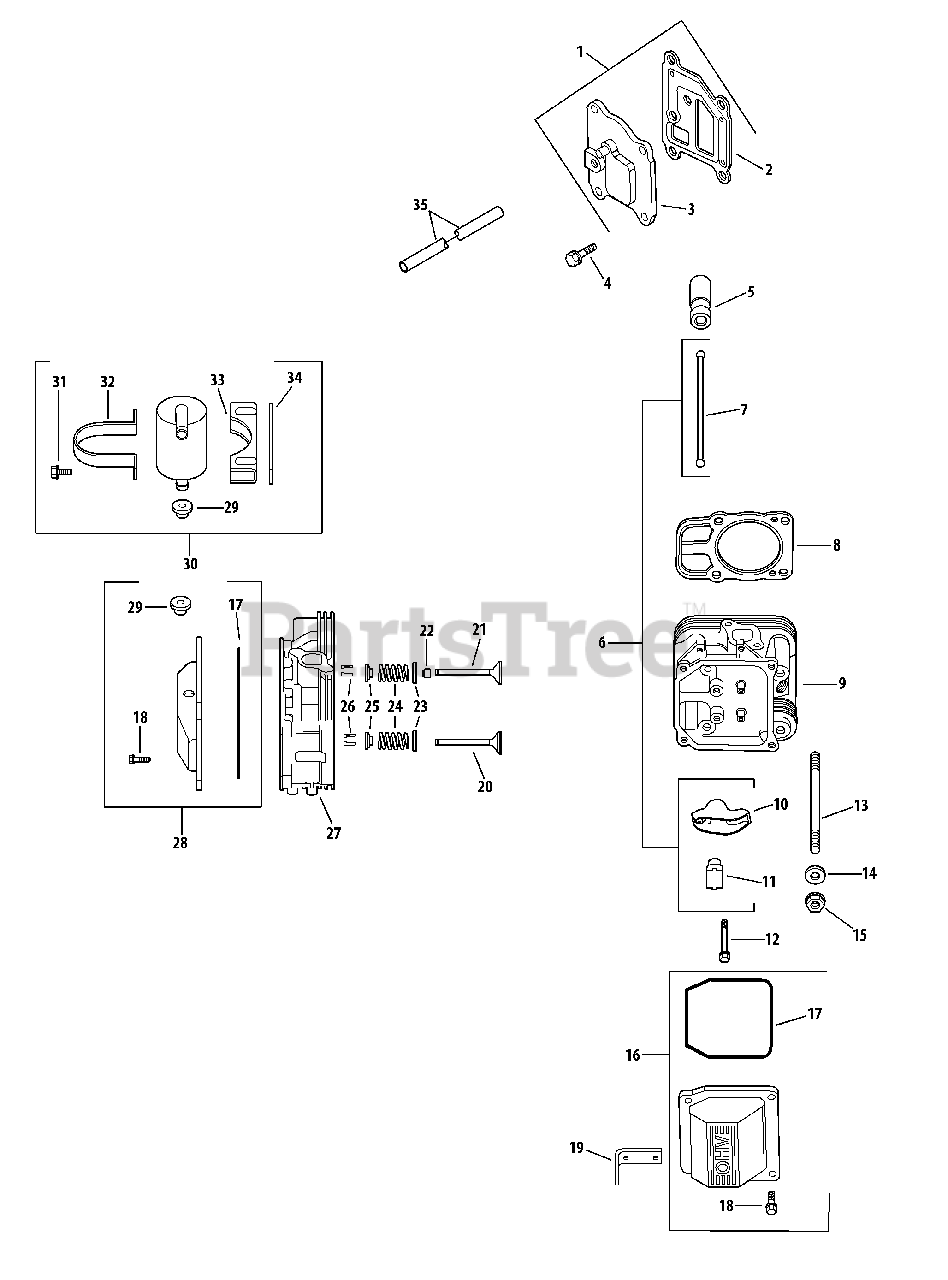

Kohler CV680-3042 Head, Valve & Breather Parts Diagram

  • Title

1

Cub Cadet KH-24-033-03

Breather Cover Kit w/ Gasket

Note: (Inc. 2,3 & KH25-139-60-S)

$

$

Not available

2

Cub Cadet KH-24-041-67-S

Gasket

$13.99

$

In Stock, Qty 9

0

3

Cub Cadet KH-24-096-125-S

Breather Cover Kit

$

$

Not available

4

Cub Cadet KH-25-086-396-S

Flange Screw, M6 x 1.0 x 20

$2.49

$

In Stock, only 1 left!

0

5

Cub Cadet KH-25-351-10-S

Lifter (Inc. KH-25-357-14-S)
(Superseded to KH-25-351-11-S)

$23.99

$

In Stock, only 4 left!

0

6

Cub Cadet KH-24-755-66

Valve Train Kit (Inc. 7, 17 & 18)

$

$

Not available

7

Cub Cadet KH-24-411-05

Rod Push

$

$

Not available

8

Cub Cadet KH-24-841-02-S

Gasket Cylinder Head Gasekt

Note: (Inc. Mounting Hardware)

$45.99

$

In Stock, only 2 left!

0

9

Cub Cadet KH-24-318-113-S

Cylinder Head Assembly
(Superseded to KH-24-318-195-S)

Note: (Inc. KH-25-072-04-S)

$

$

Not available

10

Cub Cadet KH-25-186-01

Arm Rocker

$

$

Not available

11

Cub Cadet KH-24-599-02-S

Pivot Rocker Arm

$2.49

$

In Stock, Qty 8

0

12

Cub Cadet KH-M-640034-S

Flange Screw, M6 x 1.0 x 34

$2.49

$

In Stock, Qty 18

0

13

Cub Cadet KH-24-072-09-S

Stud, M8 x 1.25

$6.49

$

In Stock, only 4 left!

0

14

Cub Cadet KH-24-468-16-S

Flat Washer, 8.6 mm

$2.49

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-24-100-10-S

Flange Nut, M8 x 1.25

$4.49

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-24-755-141-S

Valve Cover Kit (Plain) (Inc. 17 & 18)

$35.99

$

In Stock, only 2 left!

0

17

Cub Cadet KH-24-153-30-S

Valve Cover O-Ring

$11.99

$

In Stock, only 3 left!

0

18

Cub Cadet KH-M-651030-S

Flange Screw, M6 x 1.0 x 30
(Superseded to KH-25-086-797-S)

$2.99

$

Usually ships in 3-6 days

0

19

Cub Cadet KH-25-445-03-S

Lifting Strap

$

$

Not available

20

Cub Cadet KH-24-016-01

Valve Exhaust (Standard)
(Superseded to KH-32-016-01-S)

$15.99

$

In Stock, only 4 left!

0

20

Cub Cadet KH-24-016-02

Valve Exhaust (.25)

$

$

Not available

21

Cub Cadet KH-24-017-01

Valve Intake (Standard)

$

$

Not available

21

Cub Cadet KH-24-017-02

Valve Intake (.25)

$

$

Not available

22

Cub Cadet KH-66-032-05-S

Valve Stem Seal
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, only 2 left!

0

23

Cub Cadet KH-235011-S

Retainer Spring

$6.49

$

In Stock, only 2 left!

0

24

Cub Cadet KH-24-089-02

Spring Valve

$

$

Not available

25

Cub Cadet KH-25-173-28-S

Spring Cap Valve

$8.49

$

In Stock, Qty 5

0

26

Cub Cadet KH-12-755-03

Retainer Kit

$5.99

$

In Stock, only 2 left!

0

27

Cub Cadet KH-24-318-105-S

Cylinder Head Assembly
(Superseded to KH-24-318-194-S)

Note: (Inc. KH-25-072-04-S)

$246.99

$

Usually ships in 3-6 days

0

28

Cub Cadet KH-24-755-142-S

Valve Cover Kit (Inc. 17, 18 & 29)

$38.99

$

In Stock, only 1 left!

0

29

Cub Cadet KH-25-313-03-S

Rubber Grommet

$11.99

$

In Stock, only 3 left!

0

30

Cub Cadet KH-24-755-57-S

Breather Separator Kit (Inc. 29 & 31-34)
(Superseded to KH-24-755-241-S)

$90.99

$

In Stock, Qty 7

0

31

Cub Cadet KH-M-545016-S

Flange Screw, M5 x 0.8 x 16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

32

Cub Cadet KH-24-445-02

Breather Strap
(Superseded to KH-24-755-241-S)

$90.99

$

In Stock, Qty 7

0

33

Cub Cadet KH-24-126-44

Breather Separator Bracket

$

$

Not available

34

Cub Cadet KH-24-112-12

Spacer

$

$

Not available

35

Cub Cadet KH-24-326-63-S

Breather Hose

$6.99

$

In Stock, only 2 left!

0

Cub Cadet KH-M-545020-S

Flange Screw, M5 x .8 X 20
(Superseded to KH-25-086-473-S)

Note: (Not Shown)

$2.49

$

In Stock, Qty 6

0

Cub Cadet KH-24-755-147-S

Cylinder Head Hardware Kit

Note: (Inc. 7, 10-12 & 20-26)(Not Shown)

$96.99

$

In Stock, only 3 left!

0

Cub Cadet KH-25-139-60-S

Countersink Pipe Plug, 1/8

Note: (Not Shown)

$3.49

$

In Stock, only 2 left!

0

Cub Cadet KH-25-357-14-S

Camshaft Lubricant

Note: (Not Shown)

$2.49

$

In Stock, only 3 left!

0

Cub Cadet KH-25-072-24-S

Stud

Note: (Not Shown)

$3.99

$

In Stock, only 3 left!

0
