SZ-48 (53AH2PUB050) - Cub Cadet 48" Tank Zero-Turn Mower (2013) Kohler CV680-3042 Blower Housing & Baffles Parts Diagram

48" Tank Zero-Turn Mower

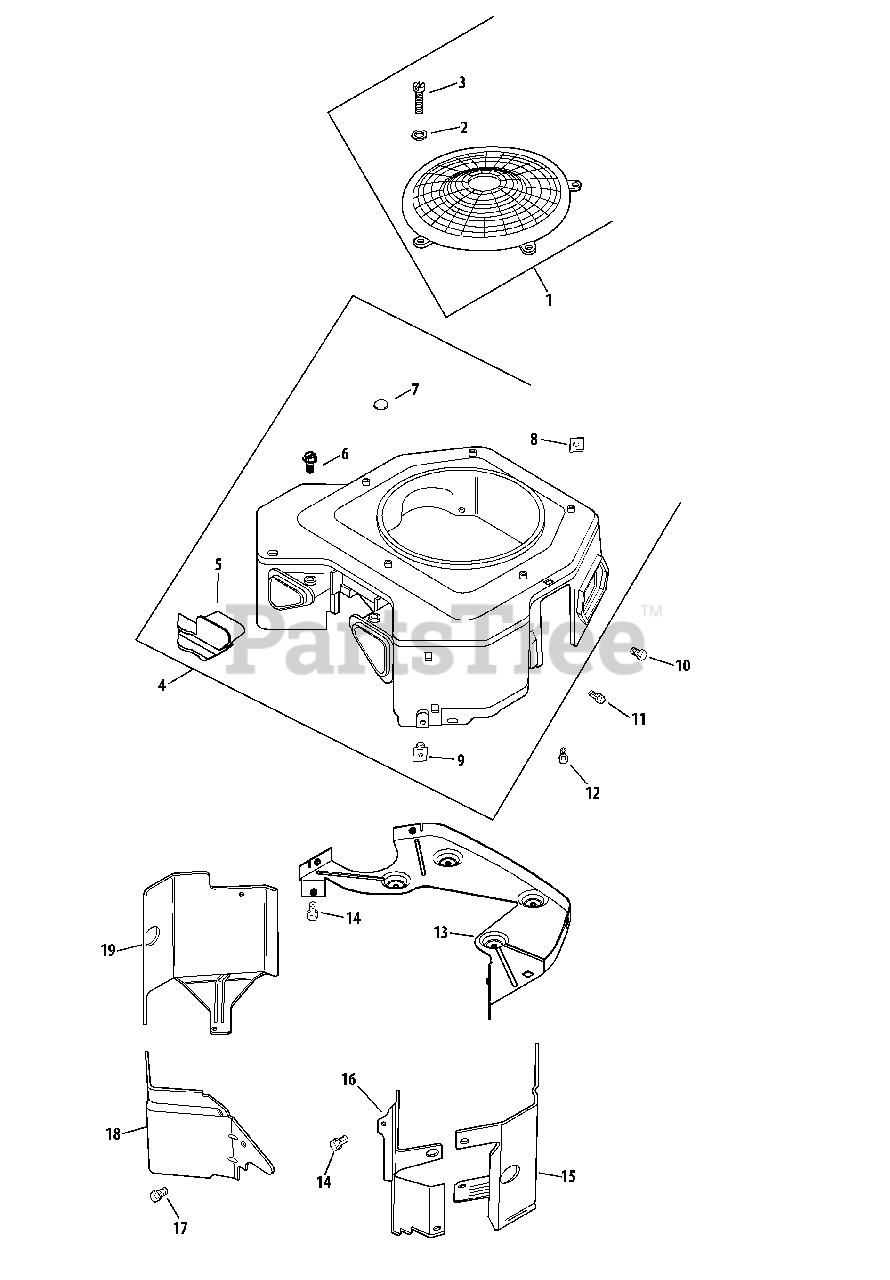

Kohler CV680-3042 Blower Housing & Baffles Parts Diagram

  • Title
1

Cub Cadet KH-24-755-81-S

Fixed Guard Kit

Note: (Inc. 2, 3, 24, KH-24-113-18-S & KH-24-332-01-S)

$52.99

$

In Stock, only 2 left!

0

2

Cub Cadet KH-24-468-10

Flat Washer, 7/32

$

$

Not available

3

Cub Cadet KH-24-086-35-S

Pan Screw, M5 x 0.8 x 10

$2.49

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-24-027-197-S

Blower Housing Kit

Note: (Inc. 5-9 & KH-24-332-01-S)

$150.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-24-096-119-S

Blower Housing Cover
(Superseded to KH-24-096-161-S)

$2.49

$

In Stock, only 1 left!

0

6

Cub Cadet KH-25-086-91-S

Washer Screw, #8-18 X 1/2

$3.49

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-25-139-16

Button Plug, 9/16

$

$

Not available

8

$2.49

$

Usually ships in 2-5 days

0

9

$2.49

$

In Stock, Qty 9

0

10

Cub Cadet KH-M-545016-S

Thread Forming Void Screw
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-M-545016-S

Flange Screw, M5 x 0.8 x 16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-M-545020-S

Flange Screw, M5x.8X20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 6

0

13

Cub Cadet KH-24-146-59-S

Backing Plate

$15.99

$

In Stock, only 1 left!

0

14

Cub Cadet KH-M-645016-S

Flange Screw, M6 x 1.0 x 16

$3.99

$

In Stock, Qty 15

0

$28.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-24-063-94-S

Valley Baffle, #2

$9.49

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-M-0545010

Flange Screw, M5 x .8 X 10

$

$

Not available

18

Cub Cadet KH-24-063-93-S

Valley Baffle, #1

$

$

Not available

$17.99

$

In Stock, only 1 left!

0

Cub Cadet KH-25-154-11-S

Repair Clip (Speed Nut)

Note: (Not Shown)

$3.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-332-01-S

Threaded Inserted

Note: (Not Shown)

$

$

Not available

Cub Cadet KH-41-037-10-S

Service Nameplate

Note: (Not Shown)

$8.99

$

In Stock, only 4 left!

0
