SZ-48 (53AH2PUB050) - Cub Cadet 48" Tank Zero-Turn Mower (2013) Hydro Controls Parts Diagram

48" Tank Zero-Turn Mower

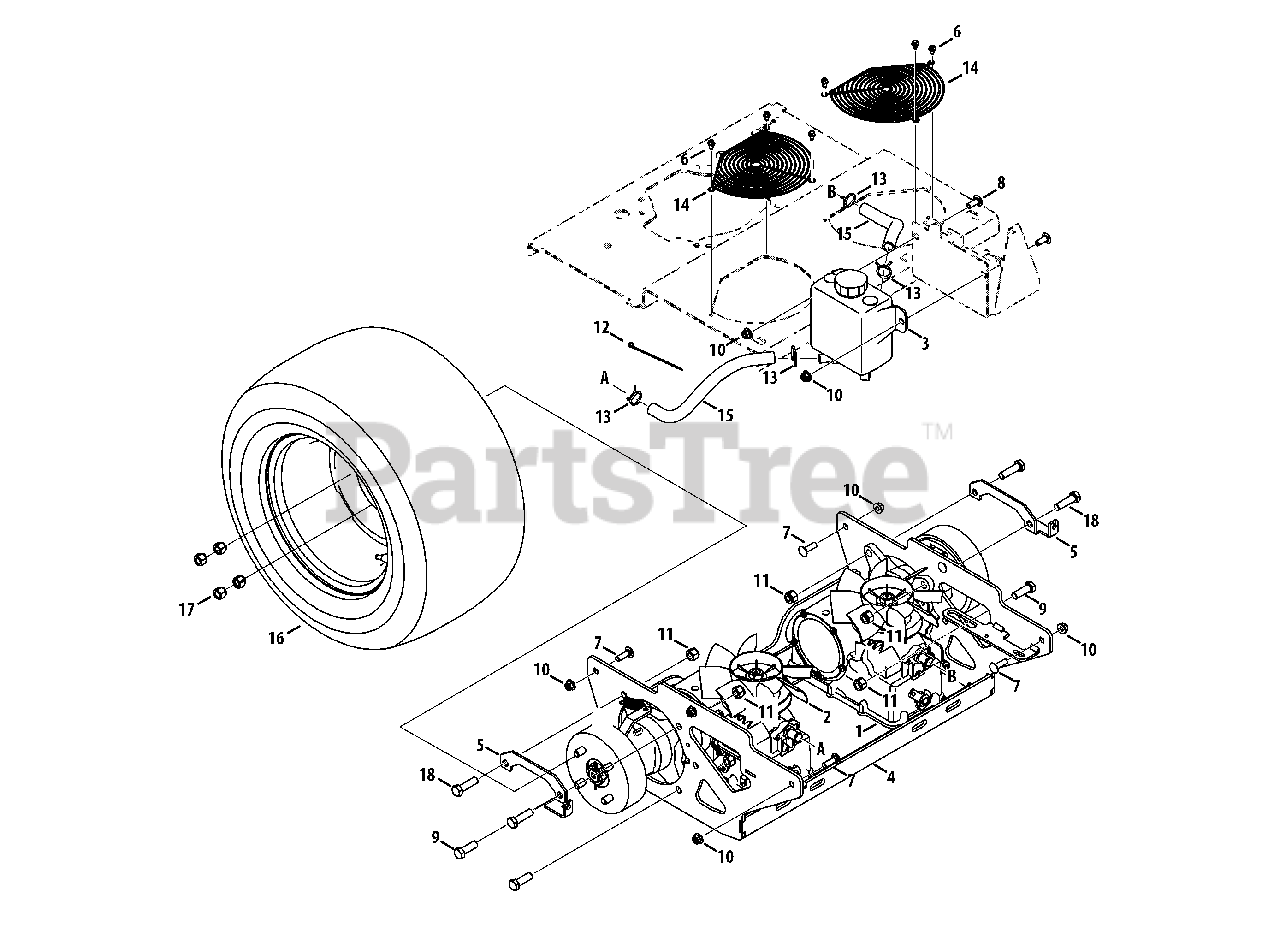

Hydro Controls Parts Diagram

  • Title

1

Cub Cadet 918-05007

Transmission, LH
(Superseded to 918-07021B)

$3440.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-05008

Transmission, RH
(Superseded to 918-07022B)

$3440.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 931-04566

Hydro Tank Assembly

$51.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 680-00177-0637

Transmission Bracket Assembly

$

$

Not available

5

Cub Cadet 703-08249A-0637

Transmission Brake Bracket

$

$

Not available

6

Cub Cadet 1767754

Screw, 10-24 x .500
(Superseded to 710-04460)

$

$

Not available

7

Cub Cadet 710-05408

Carriage Bolt, 3/8-16 x 1.25

$3.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3181

Hex Cap Screw, 1/2-13 x 1.50

$6.99

$

In Stock, only 1 left!

0

10

Cub Cadet 712-04065

Nut, 3/8-16, Flangelock

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-04150

Nut, 1/2-13, Flangelock

$4.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

13

Cub Cadet 726-05017

Hose Clamp, .9375

$4.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 732-04833

Fan Cover

$19.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 751-12281

Hose, 5/8 ID x 12.00 LG

$10.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 634-04749

Wheel Assembly, 24 x 9.5-12 (48")

$472.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 712-04311

Lug Nut, 1/2-13

$3.99

$

In Stock, only 4 left!

0

18

Cub Cadet 710-3067

Hex Cap Screw, 1/2-13 x 1.75

$6.99

$

In Stock, only 2 left!

0
