SZ-48 (53AH2PUB050) - Cub Cadet 48" Tank Zero-Turn Mower (2013) Control Group Parts Diagram

48" Tank Zero-Turn Mower

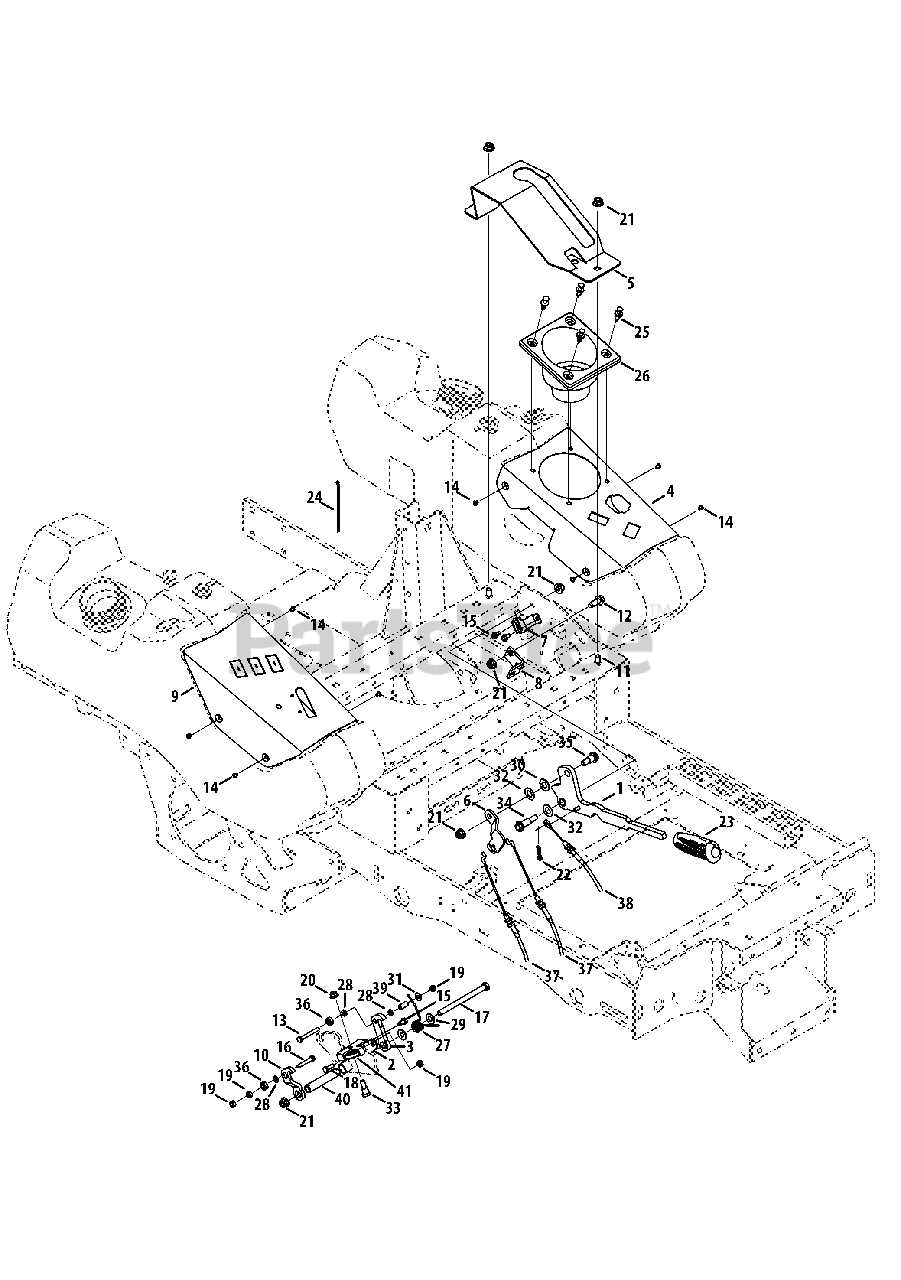

Control Group Parts Diagram

  • Title

1

Cub Cadet 680-00191A-0637

Brake Handle Weldment

$

$

Not available

2

Cub Cadet 680-00232A

Brake Control Bracket Assembly

$

$

Not available

3

Cub Cadet 703-07898B

Lock Control Plate

$14.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-08123-4021

LH Control Panel

$41.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-08209-0637

Boot Brake Bracket

$

$

Not available

6

Cub Cadet 703-08337A

Pivot Brake Bracket

$

$

Not available

7

Cub Cadet 703-08370-0637

Brake Switch Bracket

$

$

Not available

8

Cub Cadet 703-08467A

Lockout Cable Mounting Bracket

$

$

Not available

9

Cub Cadet 703-08482-4021

RH Control Panel

$40.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-08732A

Lock Control Plate

$

$

Not available

11

Cub Cadet 710-0389

Carriage Bolt, 3/8-16 x .75

$4.49

$

In Stock, Qty 10

0

12

Cub Cadet 710-04683A

Screw, 3/8-16 x 1.00
(Superseded to 710-04683C)

$6.49

$

In Stock, only 2 left!

0

13

Cub Cadet 710-0501

Hex Cap Screw, 1/4-20 x 2.00

$7.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-05421

Machine Screw, #10-32 x .25

$3.99

$

In Stock, only 3 left!

0

15

Cub Cadet 710-0599

Hex Flange Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0606

Carriage Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 9

0

17

Cub Cadet 710-0615A

Hex Cap Screw, 3/8-16 x 5.00

$6.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-3015

Hex Cap Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 912-0291

Nut, 1/4-20, Hexlock
(Superseded to 712-0291)

$

$

Not available

20

Cub Cadet 712-04063

Nut, 5/16-18, Flangelock

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-04065

Nut, 3/8-16, Flangelock

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

23

Cub Cadet 720-04139B

Grip, .50 ID

$18.99

$

In Stock, only 1 left!

0

24

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

25

Cub Cadet 728-0199

Rivet, .3125

$4.49

$

In Stock, Qty 15

0

26

Cub Cadet 731-08438

Cup Holder

$10.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 732-04955

Torsion Spring, .70 ID

$4.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 936-0142

Washer, .281 x .500 x .063
(Superseded to 736-0142)

$4.99

$

In Stock, only 4 left!

0

29

Cub Cadet 936-0267

Washer, .385 x .87 x .06
(Superseded to 736-0267)

$4.49

$

In Stock, only 1 left!

0

30

Cub Cadet 936-0272

Washer, .510 x 1.00 x .060
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 736-04446

Washer, .250 x .630 x .052

$4.49

$

In Stock, only 2 left!

0

32

Cub Cadet 936-3013

Washer, .531 x 1.00 x .030
(Superseded to 736-3013)

$4.49

$

In Stock, only 3 left!

0

33

Cub Cadet 738-0138A

Shoulder Screw, .437 x .470, 5/16-18

$6.99

$

In Stock, only 2 left!

0

34

Cub Cadet 738-0966A

Shoulder Bolt, .50 x .925, 3/8-16

$4.99

$

In Stock, Qty 19

0

35

Cub Cadet 738-1007

Shoulder Screw, .50 x .50, 3/8-16

$

$

Not available

36

Cub Cadet 741-04425

Ball Bearing, .250 x .625

$14.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 946-04734

Brake Cable

$35.99

$

In Stock, only 2 left!

0

38

Cub Cadet 946-04762

Brake Lockout Cable

$26.99

$

In Stock, only 1 left!

0

39

Cub Cadet 750-05369

Spacer, .260 x .375 x .75

$5.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 750-05551

Spacer, .385 x .625 x 3.293

$

$

Not available

41

Cub Cadet 756-04331

Roller Cable Pulley, 1.69 Dia.

$6.99

$

In Stock, Qty 16

0
