SZ 2454 (2691567-00) (17BRCACA007) - Snapper 54" Zero-Turn Mower, 24hp Seat Group Parts Diagram

54" Zero-Turn Mower, 24hp

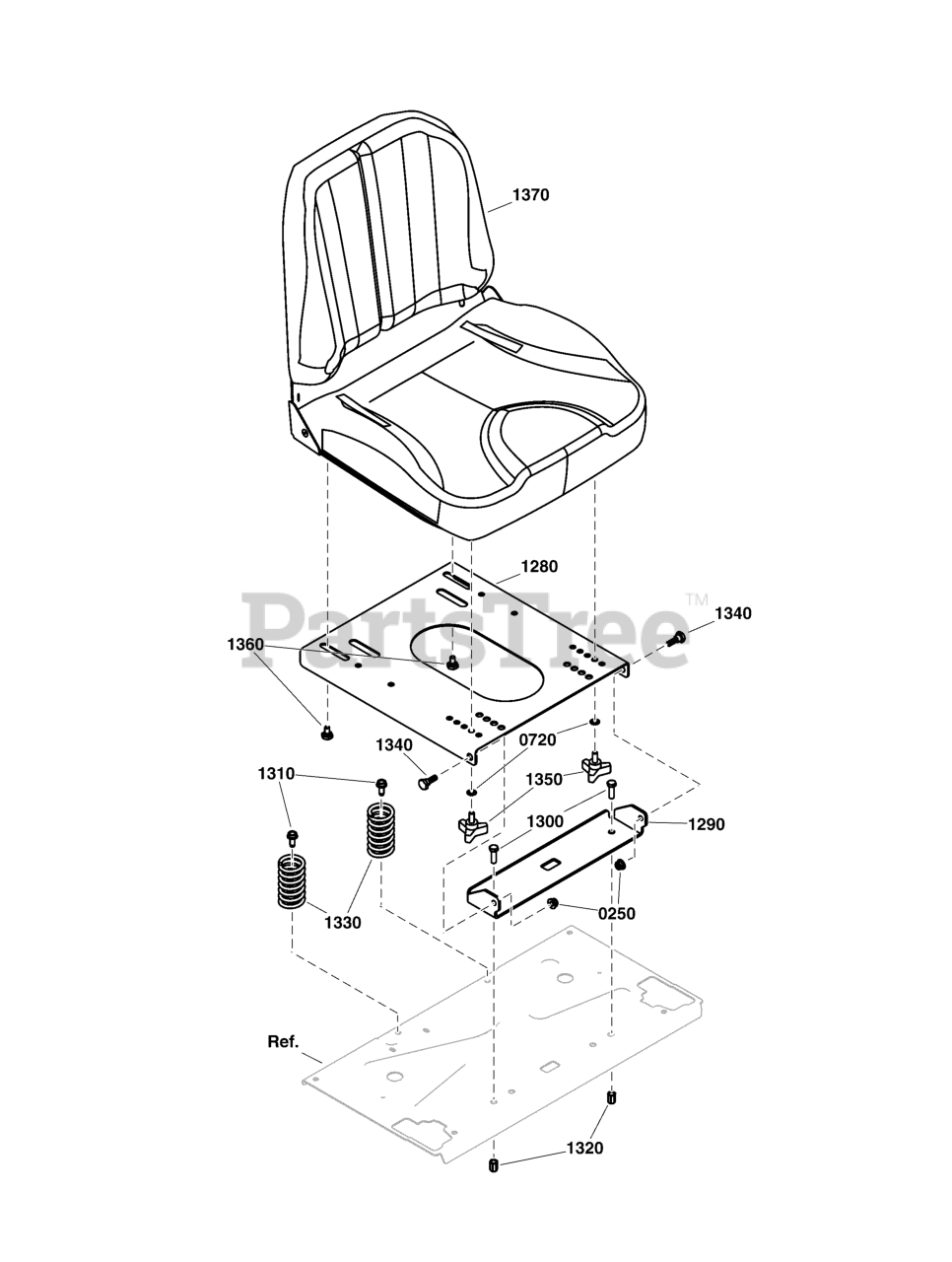

Seat Group Parts Diagram

  • Title
0560

Snapper 771177

SCREW, 5/16-18 X .750, Hex Washer

$5.49

$

Usually ships in 2-12 days

0

1280

Snapper 84003482

BASE, Seat Plate Dual Knob

$182.99

$

Usually ships in 2-12 days

0

1290

Snapper 84003483

BRACKET, Seat Pivot

$68.99

$

Usually ships in 2-12 days

0

1300

Snapper 771238

SCREW, 5/16-18 X 1.00 GR5

$11.99

$

Usually ships in 2-12 days

0

1310

Snapper 771311

SCREW, 5/16-18 X .750, Hex Washer

$6.99

$

Usually ships in 2-12 days

0

1320

Snapper 771239

NUT, Rivet,  5/16-18

$8.49

$

Usually ships in 2-12 days

0

1330

Snapper 84003498

SPRING, Compression

$19.99

$

Usually ships in 2-12 days

0

1340

Snapper 771242

SCREW, .437, Shoulder

$4.99

$

Usually ships in 2-12 days

0

1350

Snapper 84003500

KNOB, Three Arm

$22.99

$

Usually ships in 2-12 days

0

1360

Snapper 84003501

SCREW, Shoulder

$13.99

$

Usually ships in 2-12 days

0

1370

Snapper 84003502

SEAT, (Black)

$752.99

$

Usually ships in 2-12 days

0

2010

Snapper 771318

NUT, 5/8-18 Hex Flange

$10.99

$

In Stock, Qty 6

0
