SZ 2454 (2691567-00) (17BRCACA007) - Snapper 54" Zero-Turn Mower, 24hp Engine Group Parts Diagram

54" Zero-Turn Mower, 24hp

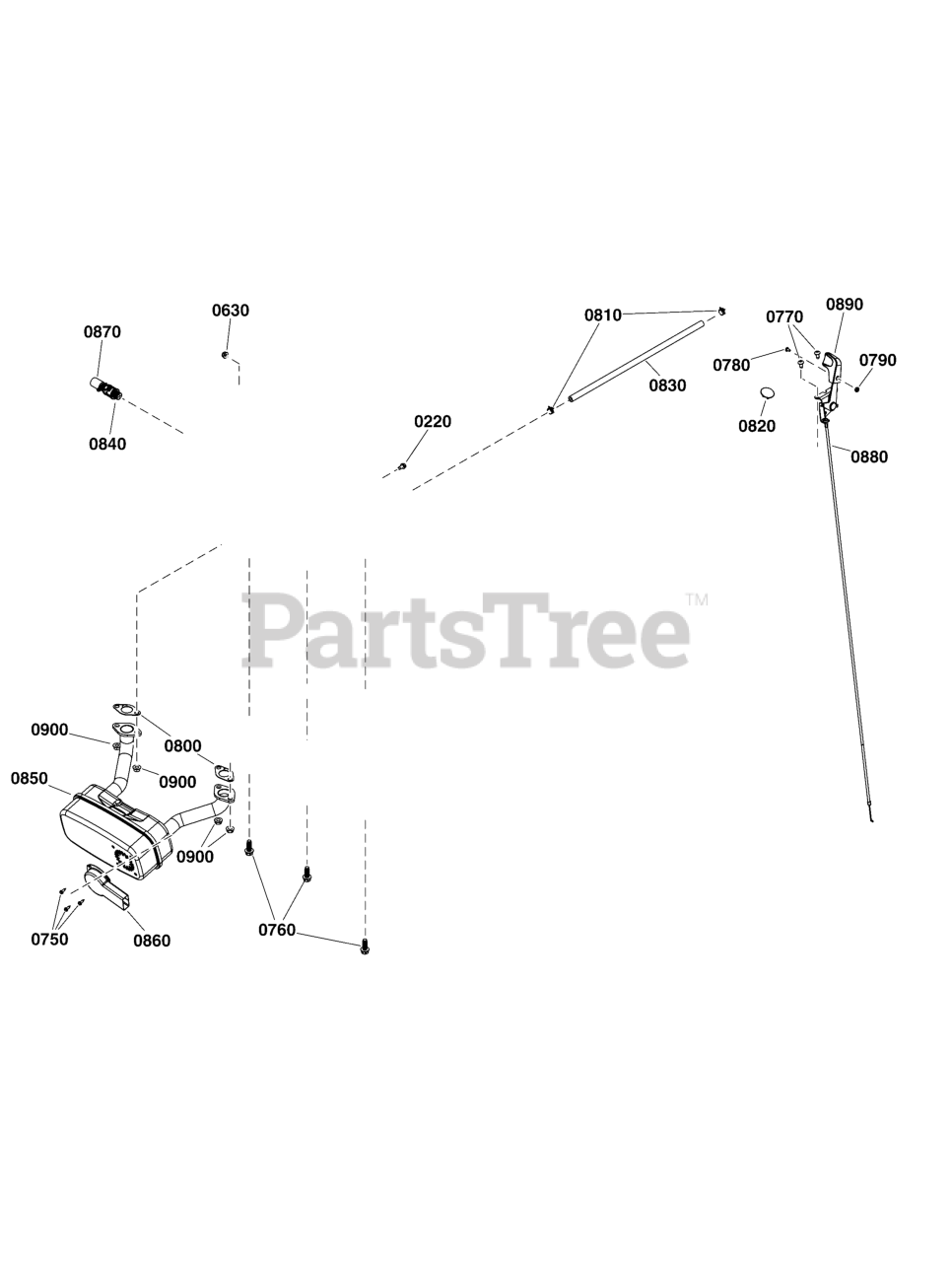

Engine Group Parts Diagram

  • Title

0220

Snapper 703624

SCREW, TT, 1/4-20 x 1/2

$

$

Currently unavailable

0630

Snapper 703463

NUT, Flange Nylock , 1/4-20

$4.49

$

In Stock, Qty 20+

0

0750

Snapper 771194

SCREW, #8-18 X .500, Hex Washer

$7.99

$

Usually ships in 2-12 days

0

0760

Snapper 707904

SCREW, Engine Mounting, 3/8-16 x 1

$15.99

$

Usually ships in 2-12 days

0

0770

Snapper 771195

SCREW, 1/4-20 X .50

$12.99

$

Usually ships in 2-12 days

0

0780

Snapper 771197

SCREW, #8-32 X .375

$11.99

$

Usually ships in 2-12 days

0

0790

Snapper 771198

NUT, #8-32, Hex

$8.49

$

Usually ships in 2-12 days

0

0800

Snapper 771199

GASKET, Exhaust

$7.49

$

Usually ships in 2-12 days

0

0810

Snapper 771200

CLAMP, .490 DIA., Hose

$7.99

$

Usually ships in 2-12 days

0

0820

Snapper 771202

PLUG, Choke

$11.99

$

Usually ships in 2-12 days

0

0830

Snapper 771360

HOSE, Fuel

$11.99

$

Usually ships in 2-12 days

0

0840

Snapper 771205

DRAIN, Oil

$30.99

$

Usually ships in 2-12 days

0

0850

Snapper 771361

MUFFLER, Exhaust (Twin)

$168.99

$

Usually ships in 2-12 days

0

0860

Snapper 771207

DEFLECTOR, Muffler, Long

$10.99

$

Usually ships in 2-12 days

0

0870

Snapper 771208

HOSE, Oil Drain

$15.99

$

Usually ships in 2-12 days

0

0880

Snapper 771203

CABLE, Throttle/Choke Control

$

$

Not available

0890

Snapper 771201

KNOB, Throttle Control

$14.99

$

Usually ships in 2-12 days

0

0900

Snapper 771362

NUT, M8, Hex Flange

$8.49

$

Usually ships in 2-12 days
