SZ 2454 (2691567-00) (17BRCACA007) - Snapper 54" Zero-Turn Mower, 24hp Deck Lift Group Parts Diagram

54" Zero-Turn Mower, 24hp

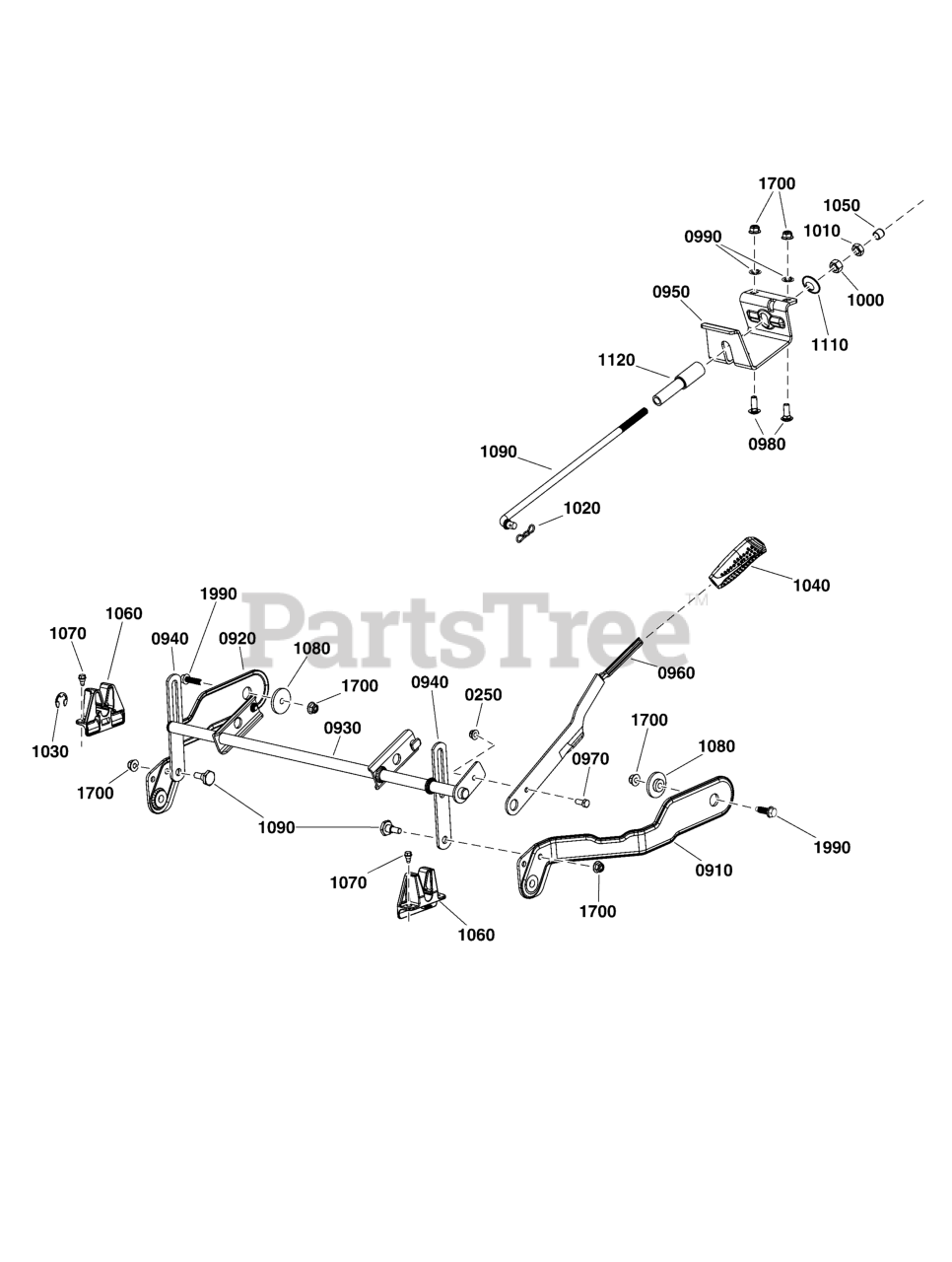

Deck Lift Group Parts Diagram

  • Title

0250

Snapper 704783

NUT, Lock

$

$

Currently unavailable

0910

Snapper 771255

PLATE, Deck Lift, RH

$122.99

$

Usually ships in 2-12 days

0

0920

Snapper 771256

PLATE, Deck Lift, LH

$121.99

$

Usually ships in 2-12 days

0

0930

Snapper 771257

ASSEMBLY, Deck Lift Shift

$139.99

$

Usually ships in 2-12 days

0

0940

Snapper 771258

PLATE, Lift Link

$23.99

$

Usually ships in 2-12 days

0

0950

Snapper 771259

BRACKET, Rod Support Mounting

$33.99

$

Usually ships in 2-12 days

0

0960

Snapper 771260

HANDLE, Deck Lift

$28.99

$

Usually ships in 2-12 days

0

0970

Snapper 771261

SCREW, 5/16-18 X .75, Hex Cap

$7.99

$

Usually ships in 2-12 days

0

0980

Snapper 771262

BOLT, 3/8-16 X 1.00, Carriage

$7.99

$

Usually ships in 2-12 days

0

0990

Snapper 771263

NUT, 3/8, Push

$5.99

$

Usually ships in 2-12 days

0

1000

Snapper 771264

NUT, 1/2-13, Hex Nylock

$8.99

$

In Stock, only 1 left!

0

1010

Snapper 771265

NUT, 1/2-13, Hex

$14.99

$

Usually ships in 2-12 days

0

1020

Snapper 771266

PIN, Bow Tie Cotter

$6.49

$

Usually ships in 2-12 days

0

1030

Snapper 771267

E-RING

$7.99

$

Usually ships in 2-12 days

0

1040

Snapper 771268

GRIP

$27.99

$

Usually ships in 2-12 days

0

1050

Snapper 771269

END CAP, Lift Rod

$5.99

$

In Stock, only 1 left!

0

1060

Snapper 771270

BRACKET, Deck Lift

$10.99

$

Usually ships in 2-12 days

0

1070

Snapper 703521

BOLT, Shoulder, 1/4-20 x 1/2"

$11.99

$

Usually ships in 2-12 days

0

1080

Snapper 771271

SPACER, Shoulder -S

$9.49

$

Usually ships in 2-12 days

0

1090

Snapper 771272

SCREW, 3/8-16, Shoulder

$8.49

$

Usually ships in 2-12 days

0

1100

Snapper 771273

ROD, Deck Front Lift

$37.99

$

Usually ships in 2-12 days

0

1110

Snapper 771274

CUP, Lift Pivot

$6.49

$

Usually ships in 2-12 days

0

1120

Snapper 771275

SLEEVE, .55 ID X 4.50 LG

$35.99

$

Usually ships in 2-12 days

0

1700

Snapper 703333

NUT, 3/8-16, Flanged Lock, GR5

$4.99

$

In Stock, Qty 20+

0

1970

Snapper 771319

SCREW, 5/16-18 X 1.00, Hex Cap

$7.99

$

Usually ships in 2-12 days

0

1990

Snapper 771315

SCREW, 3/8-16, Hex Flange

$4.99

$

Usually ships in 2-12 days

0
