SZ 2454 (2691567-00) (17BRCACA007) - Snapper 54" Zero-Turn Mower, 24hp Bumper Group Parts Diagram

54" Zero-Turn Mower, 24hp

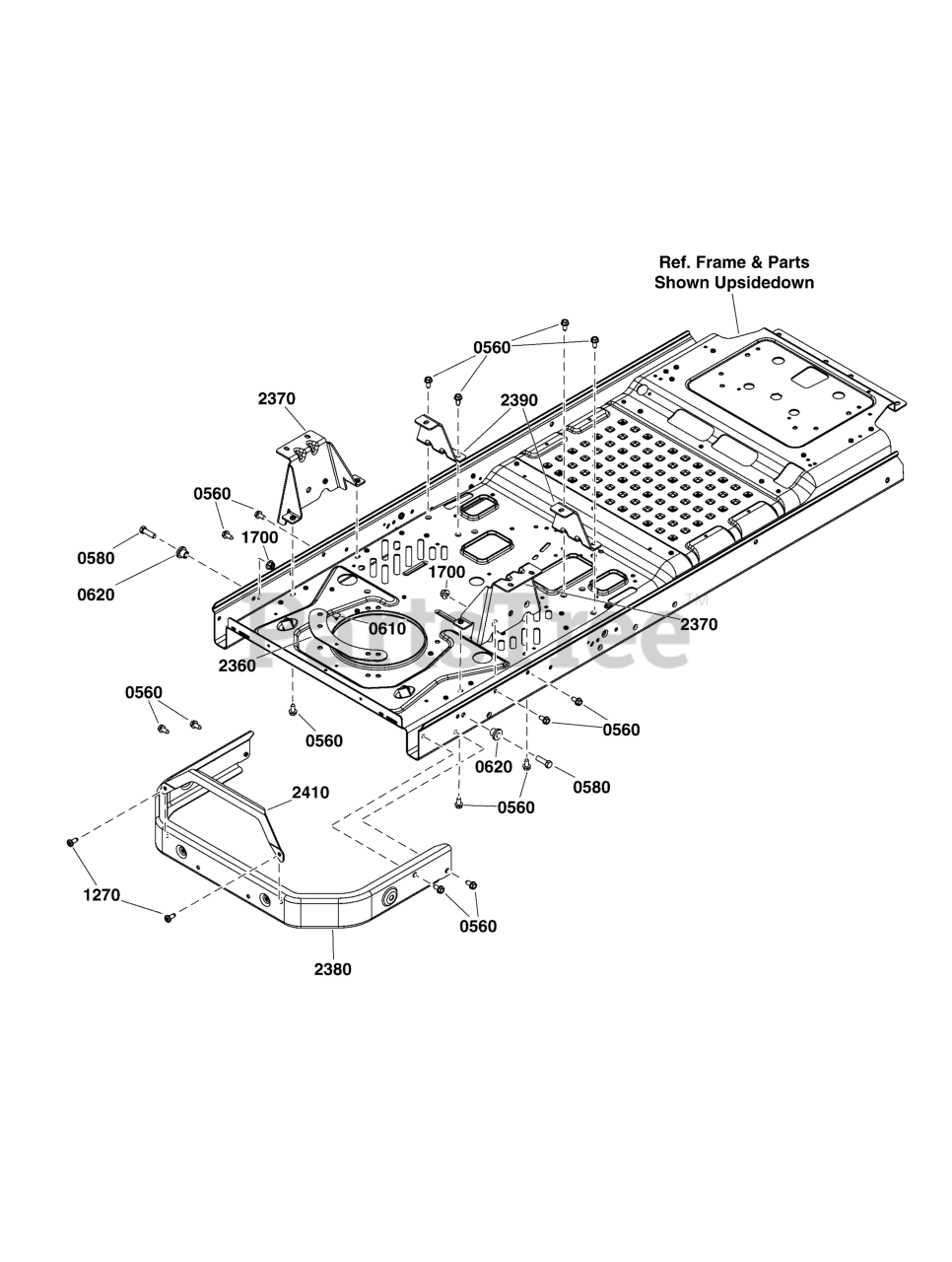

Bumper Group Parts Diagram

  • Title
0560

Snapper 771177

SCREW, 5/16-18 X .750, Hex Washer

$5.49

$

Usually ships in 2-12 days

0

0580

Snapper 771179

SCREW, 3/8-16 X 1.25, Hex

$7.49

$

Usually ships in 2-12 days

0

0610

Snapper 771144

CLIP, .250 DIA. X .500 LG

$7.49

$

Usually ships in 2-12 days

0

0620

Snapper 771145

SCREW, 3/8-16 X1.250

$6.49

$

Usually ships in 2-12 days

0

1270

Snapper 771193

SCREW, 5/16-18, 0.750, Self-Tapping

$11.99

$

Usually ships in 2-12 days

0

1700

Snapper 703333

NUT, 3/8-16, Flanged Lock, GR5

$4.99

$

In Stock, Qty 20+

0

2360

Snapper 84003508

PLATE, Retainer

$

$

Currently unavailable

2370

Snapper 771349

BRACKET, Transmission Mounting (RH)

$38.99

$

Usually ships in 2-12 days

0

2380

Snapper 771173

BUMPER, Bumper

$99.99

$

Usually ships in 2-12 days

0

2390

Snapper 771350

BRACKET, Transmission Mounting (LH)

$23.99

$

Usually ships in 2-12 days

0

2400

Snapper 771351

FRAME

Note: (Not a Serviceable Part)

$

$

Currently unavailable

2410

Snapper 771192

BRACKET, Rear Muffler Shield

$54.99

$

Usually ships in 2-12 days

0
