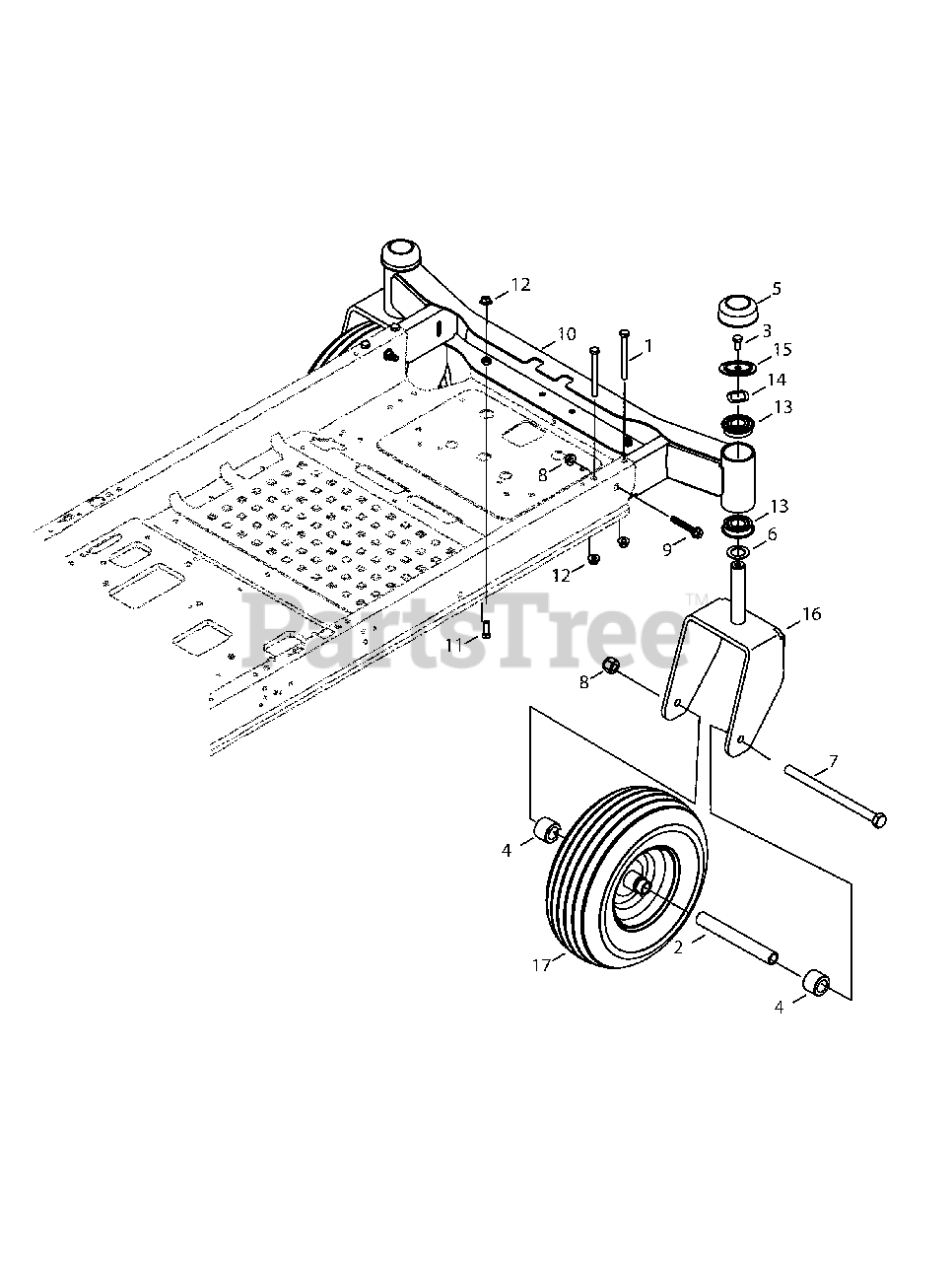

SZ 2454 (2691422-00) (17ADCACW007) - Snapper 54" Zero-Turn Mower, 24hp Front Axle Group Parts Diagram

54" Zero-Turn Mower, 24hp

Front Axle Group Parts Diagram

  • Title

1

Snapper 771210

SCREW, 3/8-16 X 3.75 GR5

$9.99

$

Usually ships in 2-12 days

0

2

Snapper 771363

SPACER

$

$

Not available

3

Snapper 771146

SCREW, 3/8-16 X .75 GR 5

$11.99

$

Usually ships in 2-12 days

0

4

Snapper 771364

HUB

$13.99

$

In Stock, only 2 left!

0

5

Snapper 771213

CAP, Caster Axle

$11.99

$

Usually ships in 2-12 days

0

6

Snapper 771214

WASHER, 1.010X1.560X.060

$13.99

$

Usually ships in 2-12 days

0

7

Snapper 771365

BOLT, Shoulder

$23.99

$

Usually ships in 2-12 days

0

8

Snapper 771366

NUT

$10.99

$

Usually ships in 2-12 days

0

9

Snapper 771217

SCREW, 3/8-16 X 2.00 GR5

$9.49

$

Usually ships in 2-12 days

0

10

Snapper 771367

ASSEMBLY, Front Axle

$647.99

$

Usually ships in 2-12 days

0

11

Snapper 771143

SCREW, 3/8-16 X 1 GR5

$7.99

$

Usually ships in 2-12 days

0

12

Snapper 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

13

Snapper 771219

BEARING, Ball

$

$

Currently unavailable

14

Snapper 771220

WASHER, Wave

$5.99

$

Usually ships in 2-12 days

0

15

Snapper 771221

SPACER, Shoulder

$12.99

$

Usually ships in 2-12 days

0

16

Snapper 771368

YOKE, Caster Wheel

$151.99

$

Usually ships in 2-12 days

0

17

Snapper 771369

WHEEL, Caster

$196.99

$

Usually ships in 2-12 days

0
