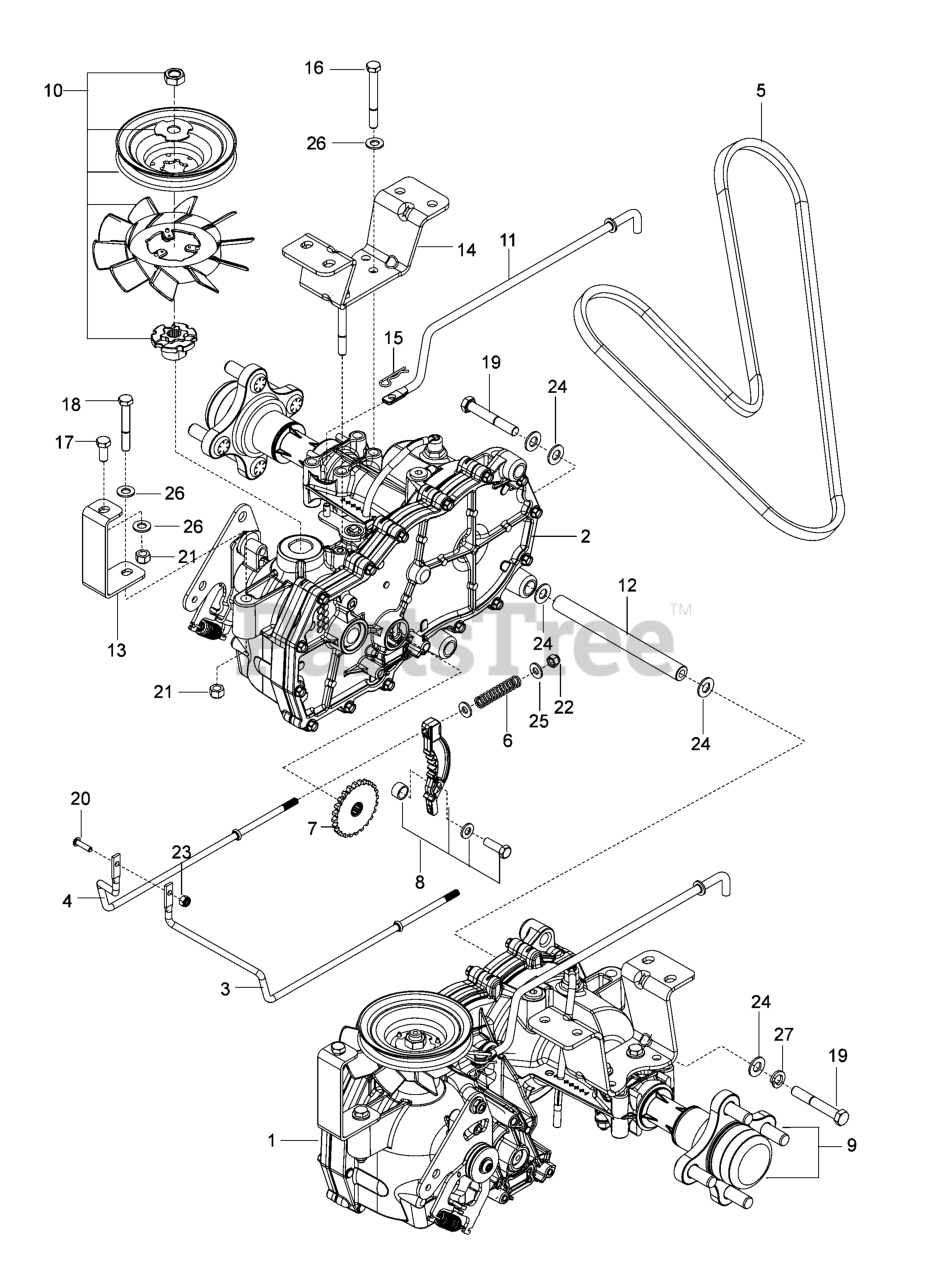

SZ 2242 (2691572-00) (967947701) - Snapper 42" Zero-Turn Mower, 22hp Transmission Group Parts Diagram

42" Zero-Turn Mower, 22hp

Transmission Group Parts Diagram

  • Title

1

Snapper 84005956

TRANSAXLE, Hydro Gear, LH

$2108.99

$

Usually ships in 2-12 days

0

2

Snapper 84005941

TRANSAXLE, Hydro Gear, RH

$2108.99

$

Usually ships in 2-12 days

0

3

Snapper 84005823

ROD, Brake, Left

$

$

Currently unavailable

4

Snapper 84005824

ROD, Brake, Right

$

$

Currently unavailable

5

Snapper 84005825

V-BELT

$96.99

$

Usually ships in 2-12 days

0

6

Snapper 84005826

SPRING, Brake

$11.99

$

Usually ships in 2-12 days

0

7

Snapper 84005827

GEAR, Brake

$63.99

$

Usually ships in 2-12 days

0

8

Snapper 84005828

ARM, Brake

$72.99

$

Usually ships in 2-12 days

0

9

Snapper 84005942

HUB

$307.99

$

Usually ships in 2-12 days

0

10

Snapper 84005829

KIT, Pulley, Fan

$233.99

$

Usually ships in 2-12 days

0

11

Snapper 84005830

ROD, Bypass

$33.99

$

Usually ships in 2-12 days

0

12

Snapper 84005831

SPACER

$23.99

$

Usually ships in 2-12 days

0

13

Snapper 84005832

SUPPORT, Transaxle, Front

$8.49

$

Usually ships in 2-12 days

0

14

Snapper 84005833

SUPPORT, Transaxle, Rear

$

$

Currently unavailable

15

Snapper 84005834

PIN, Retainer

$7.99

$

Usually ships in 2-12 days

0

16

Snapper 84005883

CAPSCREW, 5/16-18 X 2-3/4 HEX HEAD

$14.99

$

Usually ships in 2-12 days

0

17

Snapper 84005867

CAPSCREW, 5/16-18 X 3/4 GR. 5 ZD

$7.99

$

Usually ships in 2-12 days

0

18

Snapper 84005870

CAPSCREW, 5/16-18 X 2-1/4 HEX HD

$11.99

$

Usually ships in 2-12 days

0

19

Snapper 84005921

CAPSCREW, 3/8-16 X 2-1/2

$8.49

$

Usually ships in 2-12 days

0

20

Snapper 84005922

SCREW, 10-24 X 3/4 SLOTTED ROUND HD

$7.99

$

Usually ships in 2-12 days

0

21

Snapper 705350

Nut, Lock 5/16-18 unc

$5.99

$

Usually ships in 2-12 days

0

22

Snapper 84005877

LOCKNUT, 1/4-20 HEX NYLOC

$5.49

$

Usually ships in 2-12 days

0

23

Snapper 84005915

LOCKNUT, 10-24 HEX NYLOC

$4.99

$

Usually ships in 2-12 days

0

24

Snapper 705335

Washer 13/32 x 13/16 x 16 Ga.

$5.99

$

Usually ships in 2-12 days

0

25

Snapper 84005872

WASHER, Flat, 1/4 SAE

$11.99

$

Usually ships in 2-12 days

0

26

Snapper 708477

WASHER, 11/32 x 11/16 x 16 Ga.

$12.99

$

Usually ships in 2-12 days

0

27

Snapper 84004024

WASHER, 3/8, SLW ZD

$9.99

$

Usually ships in 2-12 days

0
