SZ 2046 (2691421-00) (17BDCACT007) - Snapper 46" Zero-Turn Mower, 20hp Front Axle Group Parts Diagram

46" Zero-Turn Mower, 20hp

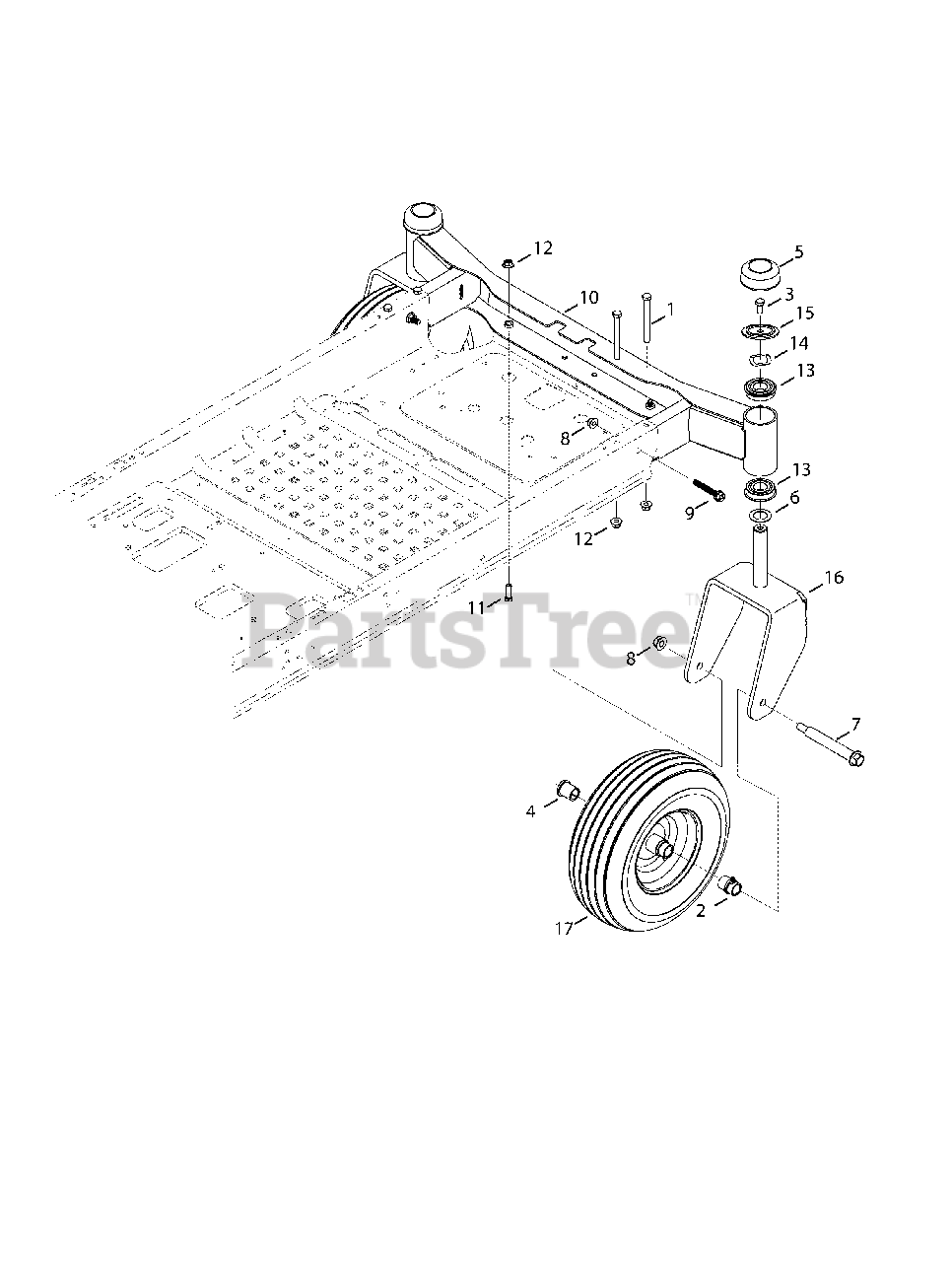

Front Axle Group Parts Diagram

  • Title

1

Snapper 771210

SCREW, 3/8-16 X 3.75 GR5

$9.99

$

Usually ships in 2-12 days

0

2

Snapper 771211

BEARING, Flange W/Zerk Fitting

$14.99

$

In Stock, only 1 left!

0

3

Snapper 771146

SCREW, 3/8-16 X .75 GR 5

$11.99

$

Usually ships in 2-12 days

0

4

Snapper 771212

BEARING, Flange

$9.99

$

In Stock, only 1 left!

0

5

Snapper 771213

CAP, Caster Axle

$11.99

$

Usually ships in 2-12 days

0

6

Snapper 771214

WASHER, 1.010X1.560X.060

$13.99

$

Usually ships in 2-12 days

0

7

Snapper 771215

BOLT, 1.00X4.75X1/2-13, Shoulder

$39.99

$

Usually ships in 2-12 days

0

8

Snapper 771216

NUT, 1/2-13, Flange Lock

$7.99

$

In Stock, only 1 left!

0

9

Snapper 771217

SCREW, 3/8-16 X 2.00 GR5

$9.49

$

Usually ships in 2-12 days

0

10

Snapper 771218

ASSEMBLY, Front Axle

$616.99

$

Usually ships in 2-12 days

0

11

Snapper 771143

SCREW, 3/8-16 X 1 GR5

$7.99

$

Usually ships in 2-12 days

0

12

Snapper 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

13

Snapper 771219

BEARING, Ball

$

$

Currently unavailable

14

Snapper 771220

WASHER, Wave

$5.99

$

Usually ships in 2-12 days

0

15

Snapper 771221

SPACER, Shoulder

$12.99

$

Usually ships in 2-12 days

0

16

Snapper 771222

YOKE, Caster Wheel

$178.99

$

Usually ships in 2-12 days

0

17

Snapper 771223

WHEEL, Caster

$227.99

$

Usually ships in 2-12 days

0
