SZ 2046 (2691421-00) (17BDCACT007) - Snapper 46" Zero-Turn Mower, 20hp Frame & Electrical Group Parts Diagram

46" Zero-Turn Mower, 20hp

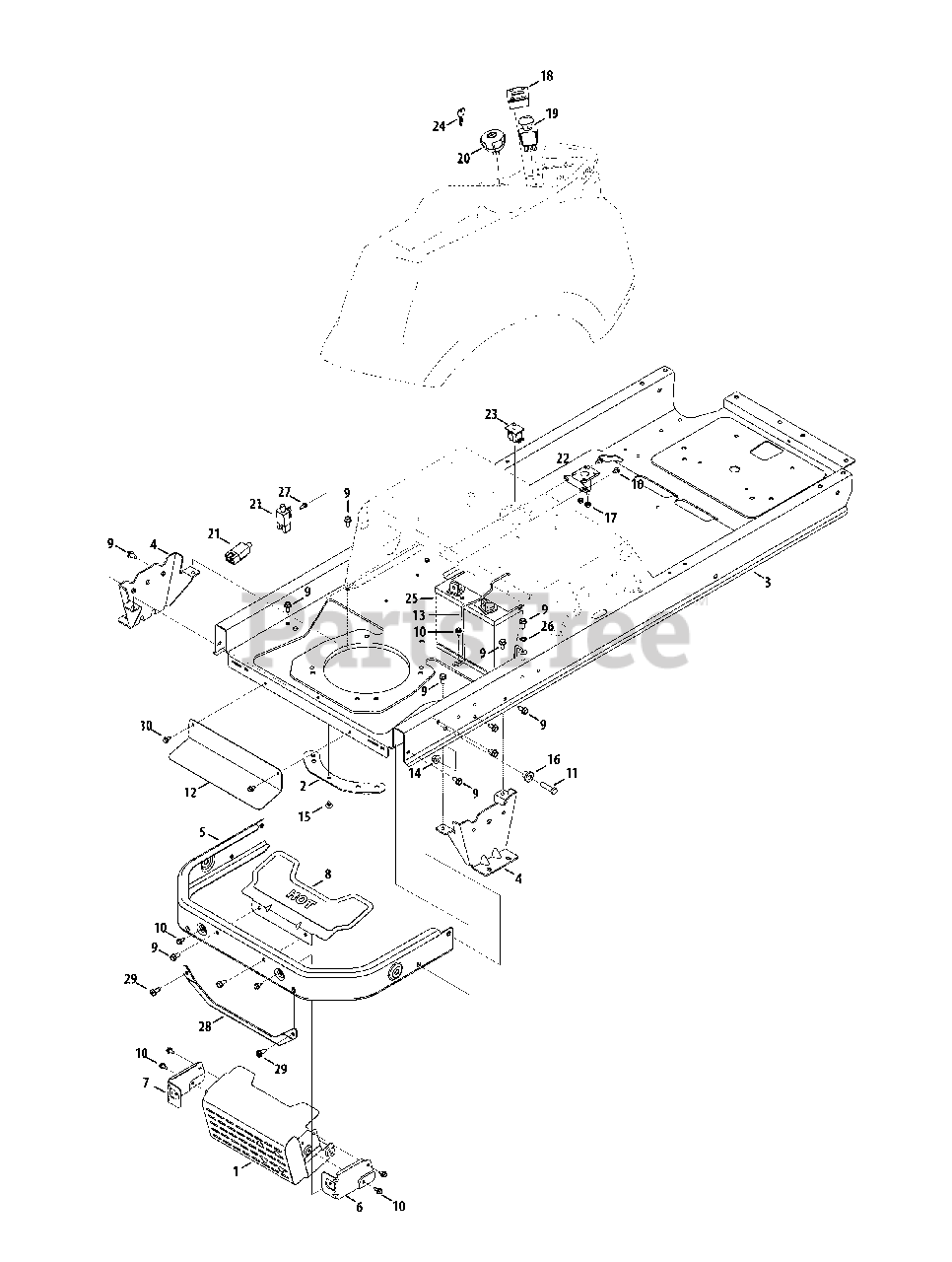

Frame & Electrical Group Parts Diagram

  • Title

1

Snapper 771169

ASSEMBLY, Muffler Shield

$127.99

$

Usually ships in 2-12 days

0

2

Snapper 771170

PLATE, Retainer

$32.99

$

Usually ships in 2-12 days

0

3

Snapper 771171

ASSEMBLY, Frame

$

$

Currently unavailable

4

Snapper 771172

BRACKET, Transmission Mounting

$58.99

$

Usually ships in 2-12 days

0

5

Snapper 771173

BUMPER, Bumper

$99.99

$

Usually ships in 2-12 days

0

6

Snapper 771174

BRACKET, Muffler Mounting Shield, RH

$15.99

$

Usually ships in 2-12 days

0

7

Snapper 771175

BRACKET, Muffler Mounting Shield, LH

$15.99

$

Usually ships in 2-12 days

0

8

Snapper 771176

SHIELD, Muffler

$62.99

$

Usually ships in 2-12 days

0

9

Snapper 771177

SCREW, 5/16-18 X .750, Hex Washer

$5.49

$

Usually ships in 2-12 days

0

10

Snapper 771178

SCREW, 1/4-20 X .625, Hex Washer

$4.99

$

In Stock, only 1 left!

0

11

Snapper 771179

SCREW, 3/8-16 X 1.25, Hex

$7.49

$

Usually ships in 2-12 days

0

12

Snapper 771180

SHIELD, Lower Heat

$35.99

$

Usually ships in 2-12 days

0

13

Snapper 771147

ROD, Battery

$26.99

$

In Stock, only 1 left!

0

14

Snapper 703333

NUT, 3/8-16, Flanged Lock, GR5, Zinc/Clear

$4.99

$

In Stock, Qty 20+

0

15

Snapper 771144

CLIP, .250 DIA. X .500 LG

$7.49

$

Usually ships in 2-12 days

0

16

Snapper 778881

SPACER, .38 X 1.0 X .70, Shoulder

$8.49

$

Usually ships in 2-12 days

0

17

Snapper 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 20+

0

18

Snapper 771182

HOUR METER/SERVICE MINDER

$71.99

$

Usually ships in 2-12 days

0

19

Snapper 771183

SWITCH, Electric PTO

$

$

Not available

20

Snapper 771184

SWITCH, Key (Ignition)

$113.99

$

Usually ships in 2-12 days

0

21

Snapper 771185

SWITCH, Interlock

$24.99

$

Usually ships in 2-12 days

0

22

Snapper 771186

SOLENOID

$63.99

$

Usually ships in 2-12 days

0

23

Snapper 771187

SWITCH, Seat

$47.99

$

Usually ships in 2-12 days

0

24

Snapper 771188

ASSEMBLY, Key

$11.99

$

Usually ships in 2-12 days

0

25

Snapper 771190

BATTERY

$141.99

$

Usually ships in 2-12 days

0

26

Snapper 771189

WASHER, 5/16, EXT., Lock

$7.99

$

Usually ships in 2-12 days

0

27

Snapper 771191

SCREW, #10-32 X .500, Shoulder

$10.99

$

Usually ships in 2-12 days

0

28

Snapper 771192

BRACKET, Rear Muffler Shield

$54.99

$

Usually ships in 2-12 days

0

29

Snapper 771193

SCREW, 5/16-18, 0.750, Self-Tapping

$11.99

$

Usually ships in 2-12 days

0

30

Snapper 925-06000A

ASSEMBLY, Harness

Note: Not Shown

$

$

Currently unavailable
