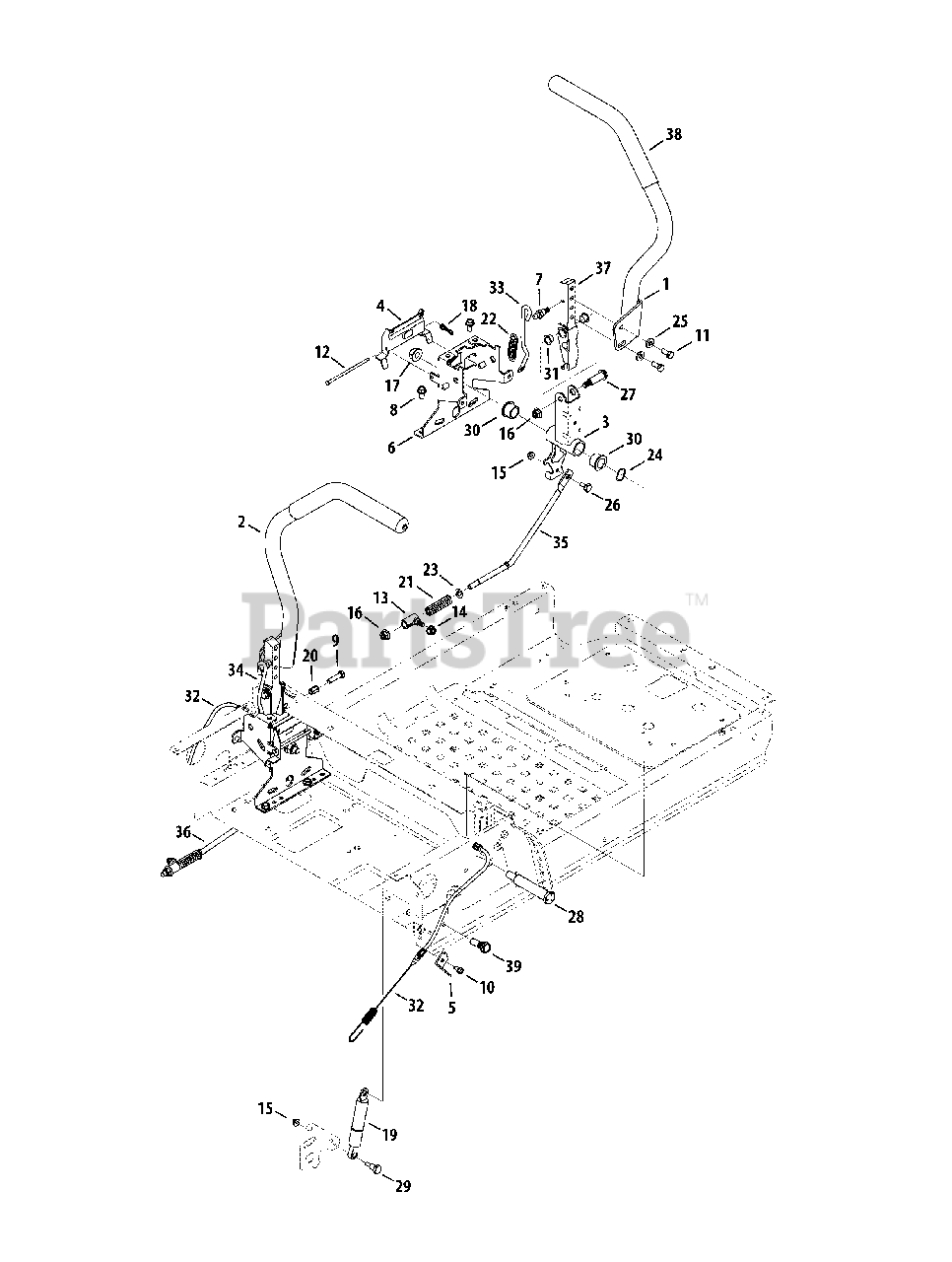

SZ 2046 (2691421-00) (17BDCACT007) - Snapper 46" Zero-Turn Mower, 20hp Controls Group Parts Diagram

46" Zero-Turn Mower, 20hp

Controls Group Parts Diagram

  • Title

1

Snapper 771276

ASSEMBLY, RH Lapbar Lever

$116.99

$

Usually ships in 2-12 days

0

2

Snapper 771277

ASSEMBLY, LH Lapbar Lever

$82.99

$

Usually ships in 2-12 days

0

3

Snapper 771278

BRACKET, Lapbar Pivot

$53.99

$

Usually ships in 2-12 days

0

4

Snapper 771279

ACTUATOR, Brake Lever

$12.99

$

Usually ships in 2-12 days

0

5

Snapper 771139

BRACKET, Brake Cable

$5.49

$

Usually ships in 2-12 days

0

6

Snapper 771280

BRACKET, Lapbar Pivot Support

$63.99

$

Usually ships in 2-12 days

0

7

Snapper 771281

SCREW, 5/16-18 X .48, Shoulder Ball

$27.99

$

Usually ships in 2-12 days

0

8

Snapper 771177

SCREW, 5/16-18 X .750, Hex Washer

$5.49

$

Usually ships in 2-12 days

0

9

Snapper 771282

SCREW, 5/16-18 X 1.25, Hex Cap

$8.49

$

Usually ships in 2-12 days

0

10

Snapper 704130

SCREW, Hex Head, 1/4-20 X 1/2

$3.99

$

In Stock, Qty 5

0

11

Snapper 771283

SCREW, 5/16-18 X .75, Hex Head Patch

$6.49

$

Usually ships in 2-12 days

0

12

Snapper 771284

PIN, .188 X 4.1

$13.99

$

Usually ships in 2-12 days

0

13

Snapper 771285

FERRULE, 3/8 ID X .420, Shoulder

$

$

Not available

14

Snapper 771318

NUT, 5/8-18 Hex Flange

$10.99

$

In Stock, Qty 6

0

15

Snapper 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 20+

0

16

Snapper 703333

NUT, 3/8-16, Flanged Lock, GR5, Zinc/Clear

$4.99

$

In Stock, Qty 20+

0

17

Snapper 771216

NUT, 1/2-13, Flange Lock

$7.99

$

In Stock, only 1 left!

0

18

Snapper 771150

PIN, 1/4-5/16, Bow Tie Cotter

$2.99

$

In Stock, only 1 left!

0

19

Snapper 771286

DAMPENER, .87 OD X 7.06 LG

$63.99

$

Usually ships in 2-12 days

0

20

Snapper 771287

NUT, 5/16-18

$7.49

$

Usually ships in 2-12 days

0

21

Snapper 771288

SPRING, .45 X 3.215, Compression

$8.49

$

Usually ships in 2-12 days

0

22

Snapper 771289

SPRING, .56 X 2.31 X .105, Extension

$14.99

$

Usually ships in 2-12 days

0

23

Snapper 771290

WASHER, .385 X .62 X .063, Flat

$12.99

$

Usually ships in 2-12 days

0

24

Snapper 771291

WASHER, .785 X 1.0 X .012, Wave

$28.99

$

Usually ships in 2-12 days

0

25

Snapper 771292

WASHER, .344 X .750 X .120, Flat

$7.49

$

Usually ships in 2-12 days

0

26

Snapper 771293

SCREW, .375 DIA. X .181, Shoulder

$6.49

$

Usually ships in 2-12 days

0

27

Snapper 771294

SCREW, .498 DIA. X 1.296, Shoulder

$8.49

$

Usually ships in 2-12 days

0

28

Snapper 771295

SCREW, .75 X 3.25 X 1/2-13, Shoulder

$19.99

$

Usually ships in 2-12 days

0

29

Snapper 771296

SCREW, .395 DIA. X .56, Shoulder

$13.99

$

Usually ships in 2-12 days

0

30

Snapper 771297

BEARING, .75 X 1.00 X .73

$6.49

$

Usually ships in 2-12 days

0

31

Snapper 771298

BEARING, .500 X .627, Flange

$19.99

$

Usually ships in 2-12 days

0

32

Snapper 771157

CABLE, Park Prake

$42.99

$

Usually ships in 2-12 days

0

33

Snapper 771299

ROD, Lapbar Detent, RH

$20.99

$

Usually ships in 2-12 days

0

34

Snapper 771300

ROD, Lapbar Detent, LH

$14.99

$

Usually ships in 2-12 days

0

35

Snapper 771301

ROD, Hydro Control, RH

$19.99

$

Usually ships in 2-12 days

0

36

Snapper 771302

ROD, Hydro Control, LH

$22.99

$

Usually ships in 2-12 days

0

37

Snapper 771303

ARM, Lower

$122.99

$

In Stock, only 1 left!

0

38

Snapper 771304

GRIP, Lapbar

$12.99

$

In Stock, only 1 left!

0

39

Snapper 771305

SCREW, .395 DIA. X .83, Shoulder

$14.99

$

Usually ships in 2-12 days

0
