SYS 300 PE (56A-739E195) - MTD Pro Spreader/Sprayer Engine, Pump, Manifold & Hose Reel Support Parts Diagram

Pro Spreader/Sprayer

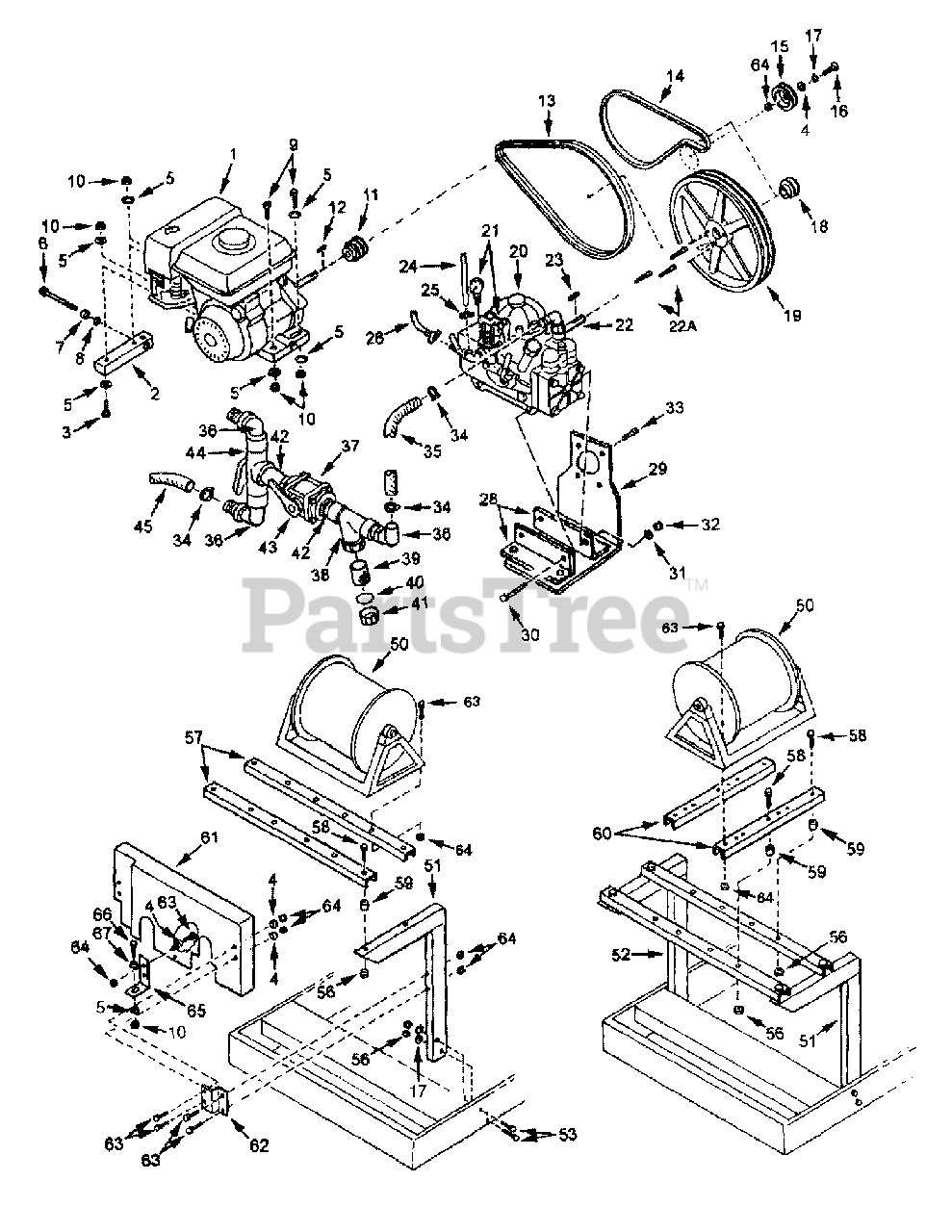

Engine, Pump, Manifold & Hose Reel Support Parts Diagram

  • Title

1

MTD 01001002

Engine, 8.0-HP Kawasaki

$

$

Not available

2

MTD 00060004

Bar, Belt Tensioning

Note: NLA

$

$

Not available

3

MTD 01001972

Cap Screw, 5/16-18 x 2-3/4

$3.99

$

Usually ships in 3-6 days

0

4

MTD 00006168

Washer, Flat 3/8
(Superseded to 936-3015)

$4.49

$

In Stock, only 1 left!

0

5

MTD 00009812

Flat Washer, 5/16 SAE

$

$

Not available

6

MTD 00013091

Cap Screw, 5/8-11 x 9-1/2 Hex Hd.

$

$

Not available

7

MTD 00021924

Spacer

$

$

Not available

8

MTD 00013432

Flat Washer, 5/8

$8.49

$

In Stock, Qty 7

0

9

MTD 00012382

Cap Screw, 5/16-18 x 1-1/2

$

$

Not available

10

MTD 00012165

Hex Nut, 5/16-18 Nylock

$4.99

$

In Stock, only 1 left!

0

11

MTD 00018535

Sheave

Note: NLA

$

$

Not available

12

MTD 00006246

Key, 3/16 x 3/16 x 1

$

$

Not available

13

MTD 00018520

Belt, Pump Drive

Note: NLA

$

$

Not available

14

MTD 00018521

Belt, Agitator Drive

Note: NLA

$

$

Not available

15

MTD 02004558

Idler Pulley, Flat

$22.99

$

In Stock, only 2 left!

0

16

MTD 00014270

Carriage Bolt, 3/8-16 x 2
(Superseded to 710-04157)

$8.99

$

In Stock, only 1 left!

0

17

MTD 00011459

Flat Washer, 1/2 USS

$5.99

$

Usually ships in 3-6 days

0

18

MTD 00020930

Sheave Small

Note: NLA

$

$

Not available

19

MTD 00018536

Sheave Large

Note: NLA

$

$

Not available

20

MTD 00019400

Pump, Twin-Piston, D-50

Note: NLA

$

$

Not available

21

MTD 00014129

Control Unit, Pump

$

$

Not available

22

MTD 00044570

Pump Shaft, with Bolt Flange

$

$

Not available

22A

MTD 00008949

Cap Screw, Socket Head

$

$

Not available

22A

MTD 00012062

Lock Washer

$

$

Not available

23

MTD 00021533

Key, 1/4 x 1/4 x 2-1/2

$22.99

$

Usually ships in 3-6 days

0

24

MTD 00030918

Hose, 5/8" PVC (Sold per foot)

Note: 5-3/4ft

$

$

Not available

25

MTD 01000217

O-Clamp, 1" for 5/8" Hose

$15.99

$

In Stock, only 1 left!

0

26

MTD 00017302

Hose Assembly, Pump to Reel

$

$

Not available

28

MTD 01003368

Pump Base, D-50 Pump

$

$

Not available

29

MTD 01003374

Pump Bracket

$

$

Not available

30

MTD 00005747

Cap Screw, 7/16-14 x 2-1/2 Hex Hd.

$

$

Not available

31

MTD 00005762

Lock Washer, 7/16

$

$

Not available

32

MTD 912-3019

Hex Nut, 7/16-14
(Superseded to 712-3019)

$6.99

$

Usually ships in 3-6 days

0

33

MTD n/a

Cap Screw (Part of Pump)

$

$

Currently unavailable

34

MTD 01000218

Hose Clamp, Wormgear, 1-1/4 - 1/1/2 4

$

$

Not available

35

MTD 00033305

Hose, 1-1/4" (D-50) (Sold per ft.)

Note: 1-1/4ft

$

$

Not available

36

MTD 00018466

Elbow, 90°, 1" HB (D-30)

Note: NLA

$

$

Not available

37

MTD 00021763

Manifold

$

$

Not available

38

MTD 00018349

Strainer Assembly

$

$

Not available

39

MTD 00026052

Screen, 20 Mesh, S.S.

Note: NLA

$

$

Currently unavailable

40

MTD 00026158

Gasket

Note: NLA

$

$

Currently unavailable

41

MTD 00026143

Strainer Bowl

Note: NLA

$

$

Currently unavailable

42

MTD 00018477

Nipple, 1-1/4

$

$

Not available

43

MTD 00018396

Ball Valve

Note: NLA

$

$

Not available

44

MTD 00024304

3 Way Valve, 1-1/4" HB

Note: NLA

$

$

Not available

45

MTD 00033305

Hose, 1-1/4" Spiraflex (Sold per foot)

Note: 8-1/2ft

$

$

Not available

50

MTD 01003359P

Hose Reel

$

$

Not available

51

MTD 01005916

Bracket, Hose Reel Mount, R.H.

$

$

Not available

52

MTD 01003357

Bracket, Hose Reel Mount, L.H.

$

$

Not available

53

MTD 00011951

Cap Screw, 1/2-13 x 1-1/2 Hex Hd.

$

$

Not available

56

MTD 00012428

Hex Nut, 1/2-13, Nylock

$6.99

$

In Stock, only 2 left!

0

57

MTD 01003358

Cross Bar
(Superseded to 01003202-0637)

$66.99

$

Usually ships in 3-6 days

0

58

MTD 00010956

Cap Screw, 1/2-13 x 2 Hex Hd.

$

$

Not available

59

MTD 750-3065

Spacer, Cross Bar

$9.49

$

Usually ships in 3-6 days

0

60

MTD 01002287-0637

Channel, Pick-up Mount

$

$

Not available

61

MTD 00020946

Belt Cover, Fiberglass

Note: NLA

$

$

Not available

62

MTD 01003370

Mount, Belt Cover, R.H.

Note: NLA

$

$

Not available

62

MTD 01003371

Mount, Belt Cover, L.H.

$

$

Not available

63

MTD 00006144

Cap Screw, 3/8-16 x 1 Hex Hd.

$6.99

$

Usually ships in 3-6 days

0

64

MTD 712-04065

Hex Nut, 3/8-16, Nylock

$3.99

$

In Stock, Qty 20+

0

65

MTD 01003373

Support, Belt Cover

$

$

Not available

66

MTD 00012180

Cap Screw, 5/16-18 x 1 Hex Hd.

$

$

Not available
