SY 50 P (56A-733P195) - MTD Pro Spreader/Sprayer 50 Gallon Trailer Assembly Parts Diagram

Pro Spreader/Sprayer

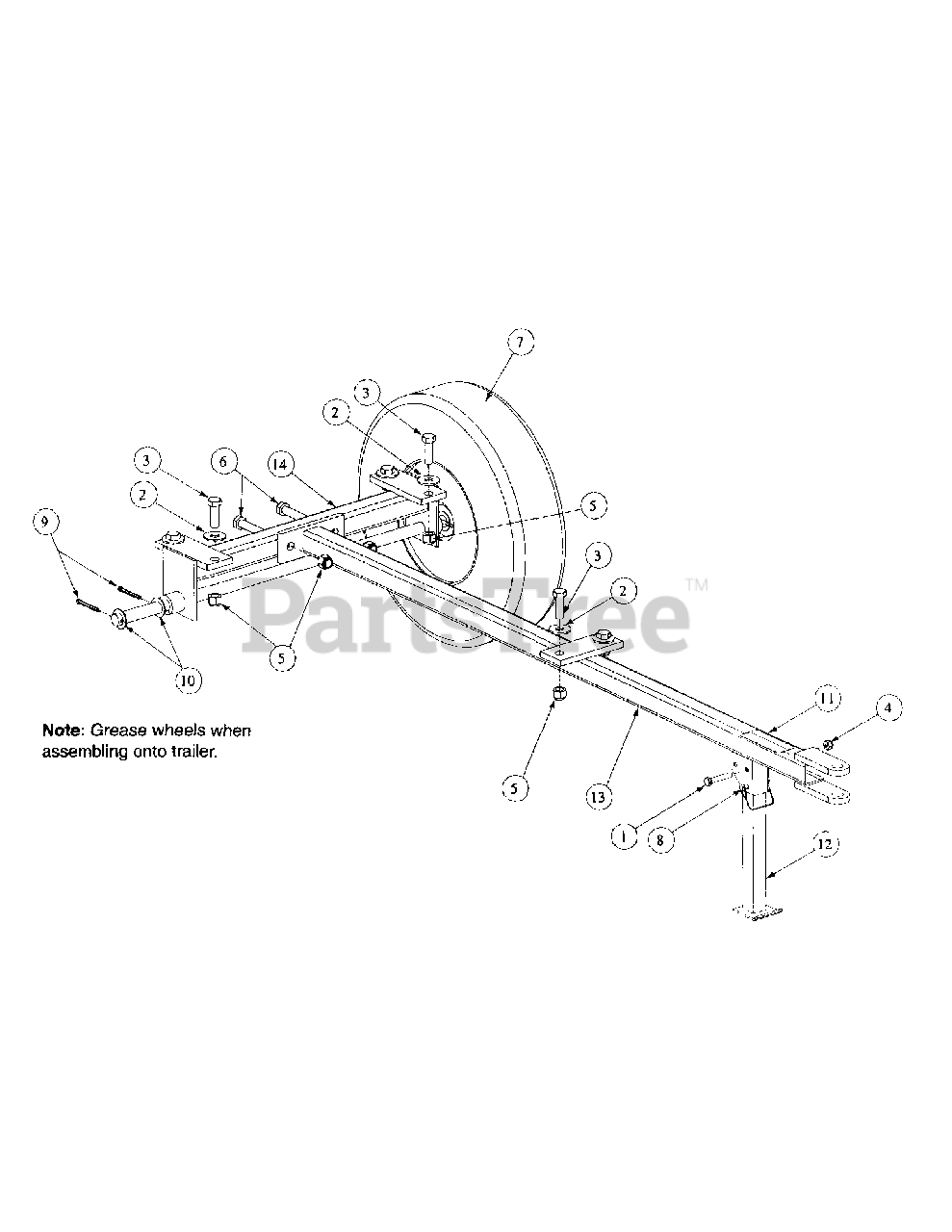

50 Gallon Trailer Assembly Parts Diagram

  • Title

1

MTD 00006129

Hex, Cap, Screw, 5/16-18, 1-3/4

$6.99

$

Usually ships in 3-6 days

0

2

MTD 00011459

Flat, Washer, 1/2, USS, Zinc

$5.99

$

Usually ships in 3-6 days

0

3

MTD 00011951

Hex, Cap, Screw, 1/2-13, 1-1/2

$

$

Not available

4

MTD 00012165

Nut, Nylock, 5/16-18

$4.99

$

In Stock, only 1 left!

0

5

MTD 00012428

Lock Nut, Nylon Insert, 1/2-13

$6.99

$

In Stock, only 2 left!

0

6

MTD 00013894

Hex, Cap, Screw, 1/2-13, 2-1/2

$

$

Not available

7

MTD 00017979

Tire and Wheel Assy, 4.80/4.00-8

Note: NLA

$

$

Not available

8

MTD 00018136

Lynch Pin, 1/4, 2, Zinc

$

$

Not available

9

MTD 00060012

Cotter Pin, SS, 3/16, 1-3/4
(Superseded to 714-05018)

$8.49

$

In Stock, only 1 left!

0

10

MTD 00060017

Flat, Washer, SS, .06, .776, 1.25
(Superseded to 736-05151)

$4.49

$

In Stock, only 2 left!

0

11

MTD 01001987

Decal, "Not For Highway Use"

$

$

Not available

12

MTD 00030045

50 Gallon, Trailer Stand, Frame

$

$

Not available

13

MTD 00030044

50 Gallon, Hitch Assy, Frame

Note: NLA

$

$

Not available

14

MTD 00030043

50 Gallon, Axle Assy, Frame

Note: NLA

$

$

Not available
