SY 50 (56A-733-195) - MTD Pro Spreader/Sprayer 50 Gallon, Gasoline - Powered, Polyethylene Tank Sprayer Parts Diagram

Pro Spreader/Sprayer

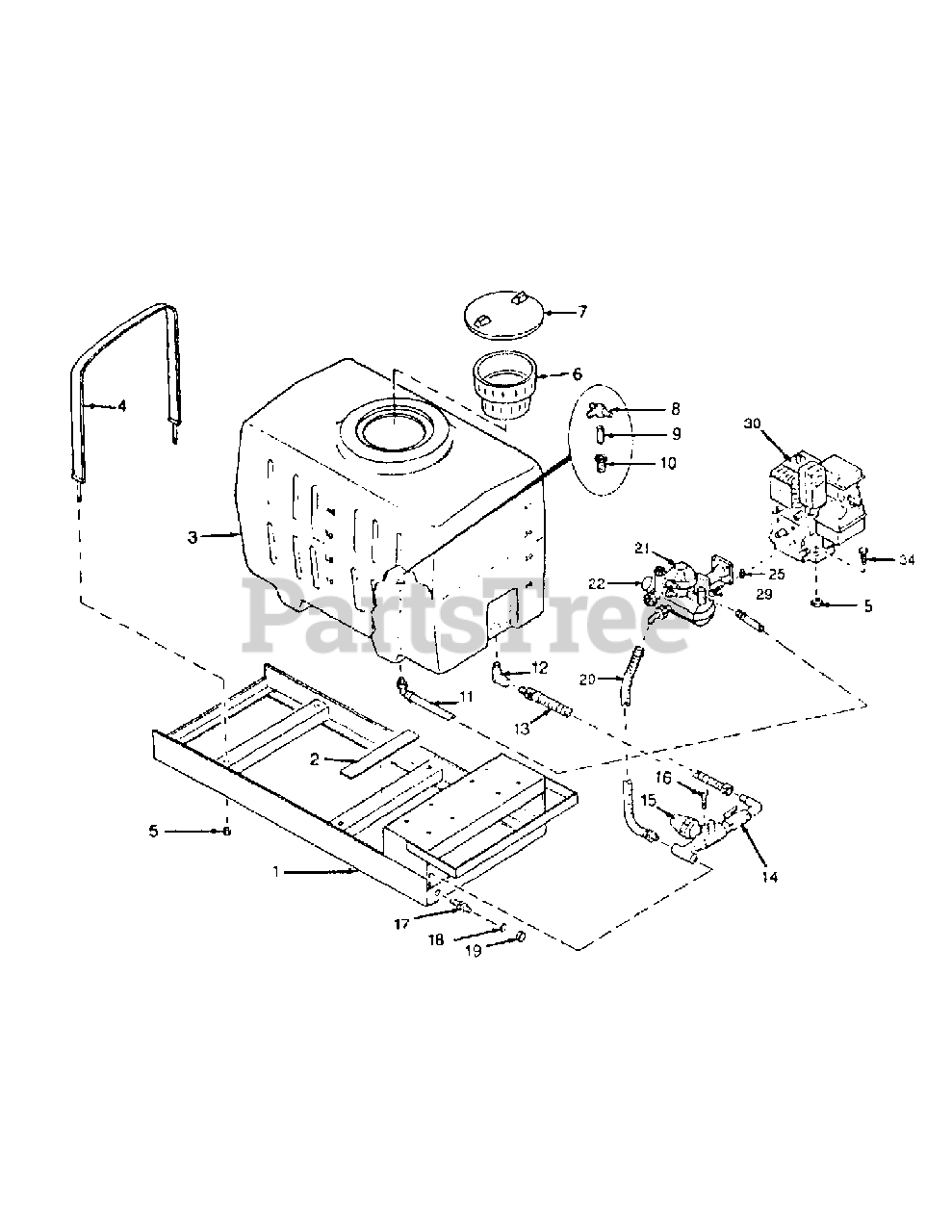

50 Gallon, Gasoline - Powered, Polyethylene Tank Sprayer Parts Diagram

  • Title

1

MTD 00011421

Frame

$

$

Not available

2

MTD 00010981

Foam, Adhesive Backed, 4"x 1/4'x 16-1/2

Note: NLA

$

$

Currently unavailable

3

MTD 00010033

Rect. Poly Tank, 50-Gallon

$

$

Not available

3

MTD 00055020

Fillwell, 1 0", Threaded

Note: NLA

$

$

Currently unavailable

4

MTD 00010836

Tank Strap w/2 T-Bolts

$116.99

$

Usually ships in 3-6 days

0

5

MTD 00012165

Hex Nut, 5/16-18 Nylock

$4.99

$

In Stock, only 1 left!

0

6

MTD 00003536

Strainer Basket 10"

$

$

Not available

7

MTD 00031899

Tank Lid, 10"

$

$

Not available

8

MTD 00005610

Agitator, Triple Jet, Brass

$130.99

$

Usually ships in 3-6 days

0

9

MTD 00011939

Nipple, 1/4 x Close, Brass

$

$

Not available

10

MTD 00006430

Reducer, 1/2 MPT x 1/4 FPT, Brass

$11.99

$

Usually ships in 3-6 days

0

11

MTD 00015607

Agitator Hose

Note: NLA

$

$

Not available

12

MTD 00006017

Street Elbow, 9O Degree, 3/4 MPT x 3/4 FPT, PVC

$7.49

$

Usually ships in 3-6 days

0

13

MTD 00014702

Suction Hose, Tank to Manifold

Note: NLA

$

$

Not available

14

MTD 00014761

Manifold Assembly

$

$

Not available

15

MTD 00011233

Line Strainer, 30 Mesh, 3/4 FPT x 3/4 FPT, PVC

$134.99

$

Usually ships in 3-6 days

0

15

MTD 00020876

Repair Kit

Note: NLA

$

$

Currently unavailable

15

MTD 00020861

32 Mesh Screen

Note: NLA

$

$

Currently unavailable

15

MTD 00020863

50 Mesh Screen

Note: NLA

$

$

Currently unavailable

15

MTD 00020862

100 Mesh Screen

Note: NLA

$

$

Currently unavailable

16

MTD 00011481

Cap Screw, 8MM-1.25 x 12 MM, Hex Hd:, Serrated Flange

Note: NLA

$

$

Currently unavailable

17

MTD 00006303

Adapter, 3/4 MPT x 3/4 NH(M), Brass

$14.99

$

In Stock, only 2 left!

0

18

MTD 00007595

Hose Washer, 3/4

$7.99

$

In Stock, only 1 left!

0

19

MTD 00012664

Hose Cap, 3/4 NH(F), Brass

$6.99

$

In Stock, only 1 left!

0

20

MTD 00023522

Suction Hose, Manifold to Pump

Note: NLA

$

$

Not available

21

MTD 01005668

Pump, Twin Diaphragm

$1964.99

$

Usually ships in 3-6 days

0

21

MTD 00017671

Pump, Diaphragm Repair Kit

Note: NLA

$

$

Currently unavailable

22

MTD 00031067

Control Unit

Note: NLA

$

$

Currently unavailable

25

MTD 00009812

Flat Washer, 5/16

$

$

Not available

29

MTD 00019919

Cap Screw, 5/16-24 x 3/4 Hex Hd

Note: NLA

$

$

Not available

30

MTD 00031600

Engine, 4-HP, KAW., Recoil Start

Note: NLA

$

$

Currently unavailable

30

MTD 00034182

Air Filter for KAW. Engine

Note: NLA

$

$

Currently unavailable

30

MTD 00050524

Spark Plug for KAW. Engine

Note: NLA

$

$

Currently unavailable

31

MTD 00012751

Nipple, 1/4 MPT x 1-1/2, Galv.

Note: NLA

$

$

Currently unavailable

32

MTD 00009821

Elbow, 90 Degree, 1/4 FPT x 1/4 FPT, Galv.

Note: NLA

$

$

Currently unavailable

33

MTD 00003759

Plug, 1/4 MPT, Square Head

Note: NLA

$

$

Not available

34

MTD 00006129

Cap Screw, 5/16-18 x 1-3/4 Hex Hd.

$6.99

$

Usually ships in 3-6 days

0

MTD 00013089

Hose Rack

Note: NLA

$

$

Currently unavailable

MTD 00060080

Plug, Plastic

Note: (not shown)

$

$

Not available
