SY 300 PE (56A-737E195) - MTD Pro Spreader/Sprayer 300 Gallon, Gasoline-Powered Polyethylene Tank Sprayer Parts Diagram

Pro Spreader/Sprayer

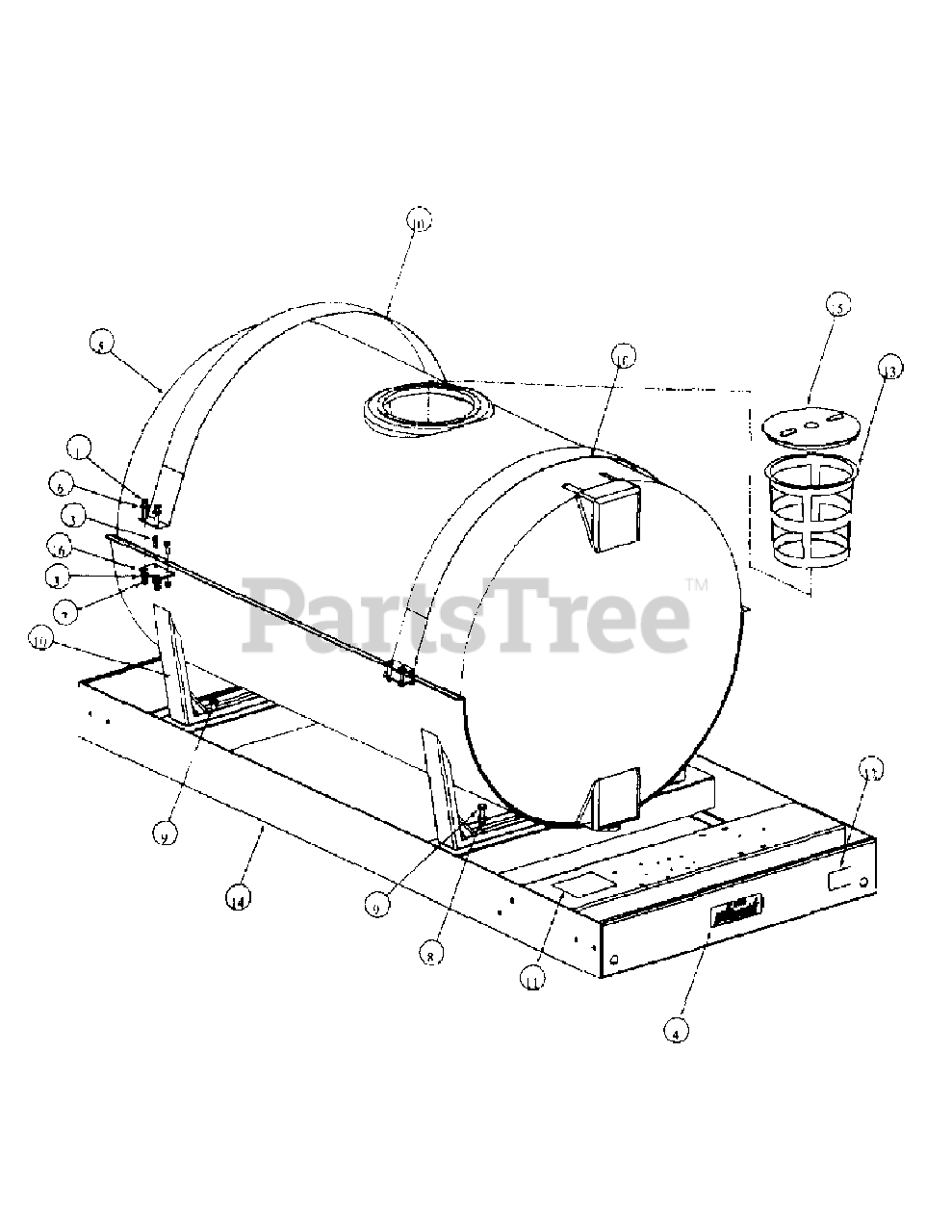

300 Gallon, Gasoline-Powered Polyethylene Tank Sprayer Parts Diagram

  • Title

1

MTD 00002528

HHCS: 3/8-16, 2.00, Standard

$6.99

$

In Stock, Qty 7

0

2

MTD 00006144

HHCS, 3/8-16 x 1"

$6.99

$

Usually ships in 3-6 days

0

3

MTD 00008382

Adhesive Back Foam, 1/4, (sold by ft.)

$

$

Not available

4

MTD 01003851

Decal, "Sprayer 300PE", 2-1/4" x 7"

$

$

Not available

4

MTD 01003850

Decal, "Sprayer 300", 2-1/4" x 7"

Note: NLA

$

$

Not available

5

MTD 00009406

Assembly Tank, 300 Gal Poly w/lid

$

$

Not available

6

MTD 00012158

Flat Washer, 3/8 SAE

$4.49

$

In Stock, Qty 9

0

7

MTD 712-04065

Lock Nut, Nylon Insert, 3/8-16

$3.99

$

In Stock, Qty 20+

0

8

MTD 00012428

Lock Nut, Nylon Insert, 1/2-13

$6.99

$

In Stock, only 2 left!

0

9

MTD 00013851

HHCS, 1/2-13 x 1"

$

$

Not available

10

MTD 01003362

Assembly Saddle, 300 Gal Poly, w/strap

Note: NLA

$

$

Not available

11

MTD 00030677

Decal Safety Procedures

$

$

Not available

12

MTD 00090006

Decal, Made in America

$

$

Not available

13

MTD 00003536

Strainer Basket 10"

$

$

Not available

14

MTD 01003460

Assembly Main Frame, 300 Gal Poly

Note: NLA

$

$

Not available

15

MTD 00031899

Tank Lid, 10" Threaded

$

$

Not available

16

MTD 01003364

Mount Strap, Tank, 300 Gal Poly

$

$

Not available

MTD 01001047

Filter Kit

Note: (not shown)

$192.99

$

Usually ships in 3-6 days

0
