SY 300 PE (56A-737E195) - MTD Pro Spreader/Sprayer 100, 200, 300 Hose Reel Mounting Bracket Parts Diagram

Pro Spreader/Sprayer

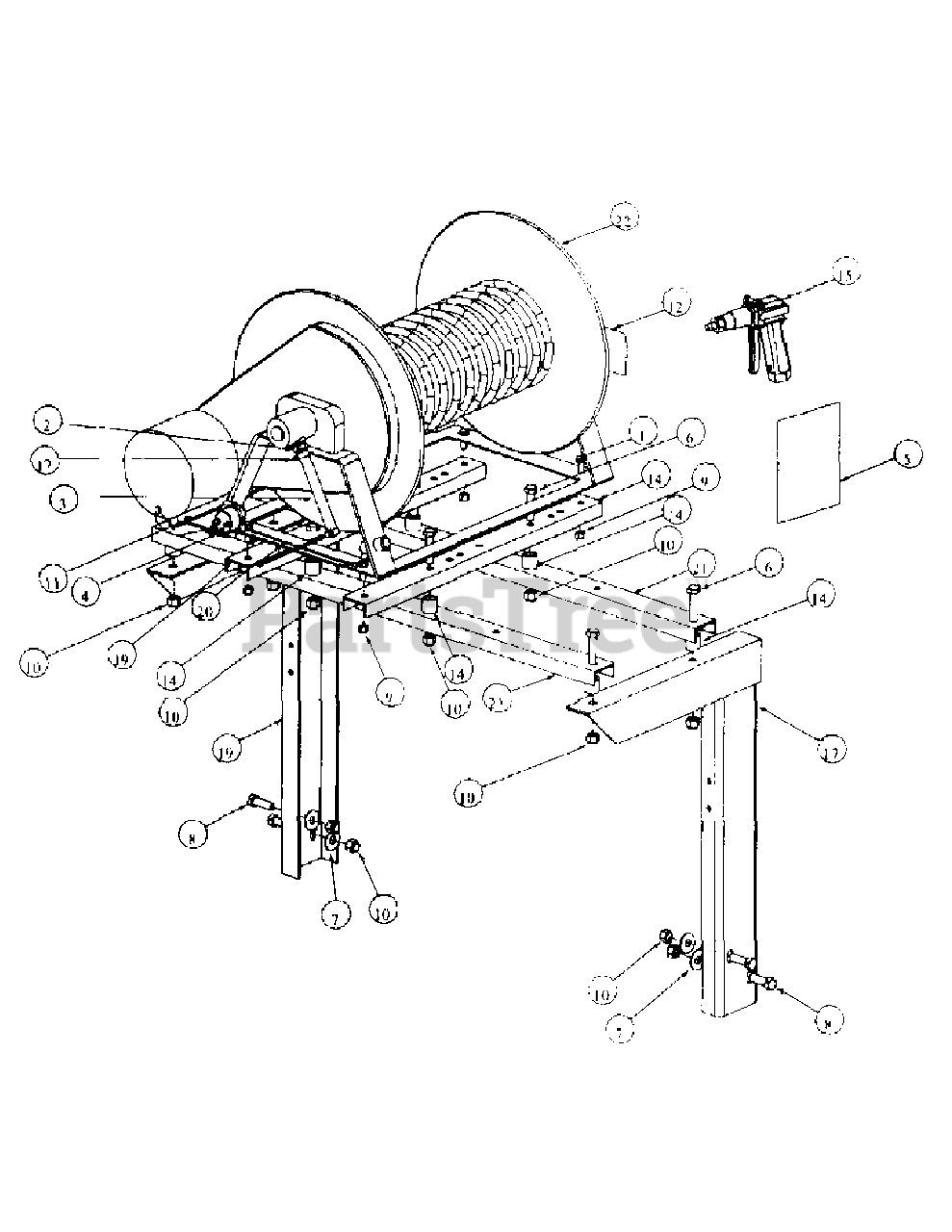

100, 200, 300 Hose Reel Mounting Bracket Parts Diagram

  • Title

1

MTD 00006144

HHCS, 3/8-16 x 1"

$6.99

$

Usually ships in 3-6 days

0

2

MTD 00006417

Hose Barb, 1/2NPT, 1/2

$11.99

$

Usually ships in 3-6 days

0

3

MTD 00008295

Hose, 112" by ft. (sold by the foot)

$

$

Not available

4

MTD 00010628

Terminal Ring, 3/8 x #8 Ga

$

$

Not available

5

MTD 00010863

Wiring Kit, Elec. Hose Reel

$107.99

$

Usually ships in 3-6 days

0

6

MTD 00010956

HHCS, 112-13, 2.00

$

$

Not available

7

MTD 00011459

Flat Washer, 1/2 USS

$5.99

$

Usually ships in 3-6 days

0

8

MTD 00011951

HHCS, 1/2-13, 1-1/2

$

$

Not available

9

MTD 712-04065

Nut, Lock Nylon Insert, 3/8-16

$3.99

$

In Stock, Qty 20+

0

10

MTD 00012428

Nut, Lock Nylon lnsert, 1/2-13

$6.99

$

In Stock, only 2 left!

0

11

MTD 725-0157

Cable, Tie, 3/16 x .05 x 7-1/2

$3.99

$

In Stock, only 2 left!

0

12

MTD 00019178

Decal, Max Hose Length

$

$

Not available

13

MTD 01004377

Hose Assembly, 1/2 x 300

Note: NLA

$

$

Currently unavailable

14

MTD 750-3065

Spacer Crossbar

$9.49

$

Usually ships in 3-6 days

0

15

MTD 00052979

Spray Gun

Note: NLA

$

$

Not available

16

MTD 01000216

Hose Clamp, 1/2, 7/8

$

$

Not available

17

MTD 01005916

Bracket Assembly, RH Hose Reel

$

$

Not available

18

MTD 01003357

Bracket Assembly, LH Hose Reel

$

$

Not available

19

MTD 01002287-0637

Channel, Pick-Up Mount Reel Support

$

$

Not available

20

MTD 01002319

Wiring Harness

$

$

Not available

21

MTD 01003358

Crossmember Hose Reel
(Superseded to 01003202-0637)

$66.99

$

Usually ships in 3-6 days

0

22

MTD 01003359P

Reel

$

$

Not available
