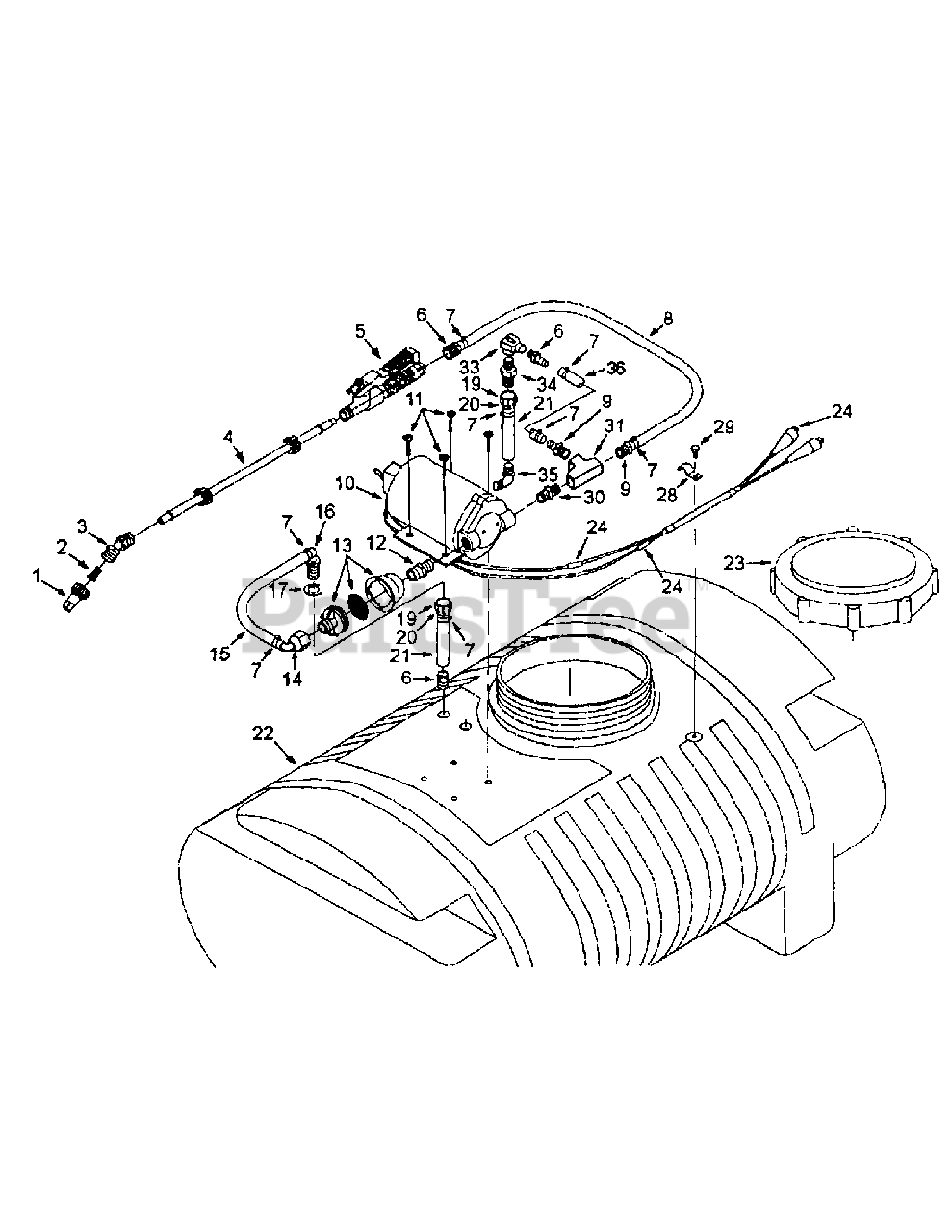

SY 15 (56A-700-195) - MTD Pro Spreader/Sprayer Electric, Spot-Sprayer Parts Diagram

Pro Spreader/Sprayer

Electric, Spot-Sprayer Parts Diagram

  • Title

1

MTD 00022463

Spray Tip, Adjustable

Note: NLA

$

$

Currently unavailable

2

MTD 00005173

Strainer

$6.49

$

In Stock, only 2 left!

0

3

MTD 00017744

Adapter, 45°.

Note: NLA

$

$

Currently unavailable

4

MTD 00022462

Extension Wand, 15"

Note: NLA

$

$

Currently unavailable

5

MTD 00022449

Trigger Valve

Note: NLA

$

$

Currently unavailable

5

MTD 00018334

Wand Assembly

$140.99

$

Usually ships in 3-6 days

0

6

MTD 00035781

Hose Barb, 3/8 x 1/4 MPT

$

$

Not available

7

MTD 01000215

Hose Clamp

$

$

Not available

8

MTD 00034896

3/8 Hose, Reinforced PVC-25 ft.

$

$

Not available

8

MTD 00035816

Hose, 1/4" x 25', Flex Coil

$269.99

$

Usually ships in 3-6 days

0

9

MTD 00035631

Hose Barb, 3/8 x 3/8 MPT

$

$

Not available

10

MTD 00020908

Diaphragm Pump, Flojet

$

$

Currently unavailable

11

MTD 00035678

Mach. Screw, # 10-24 x 3/4 Pan Hd.

$

$

Not available

12

MTD 00035599

Fitting, Adapter

$10.99

$

Usually ships in 3-6 days

0

13

MTD 00035601

Filter, 30 Mesh S.S. Screen
(Superseded to HY-255-313)

$53.99

$

Usually ships in 3-6 days

0

14

MTD 00035600

Hose Barb, 3/8 x 90° Swivel Elbow

$

$

Not available

15

MTD n/a

Hose, 3/8" x 18'

Note: (See ref. 32)

$

$

Currently unavailable

16

MTD 00035626

Hose Barb, 3/8" x 90° Male Elbow

$

$

Not available

17

MTD 00035629

Washer, 11/16 Nylon

Note: NLA

$

$

Not available

19

MTD 00035628

Swivel Nut, Nylon

$

$

Not available

20

MTD 00035627

Hose Barb, 3/8 Nylon

$

$

Not available

21

MTD n/a

Hose, 3/8" x 14'

Note: (See ref. 32)

$

$

Currently unavailable

22

MTD 00035898

Tank, 15 Gallon, Polyethylene

Note: NLA

$

$

Not available

22

MTD 00035884

Tank, 25 Gallon, Polyethylene

Note: NLA

$

$

Not available

23

MTD 00022448

Tank Lid

$

$

Not available

24

MTD 00018283

Wire Harness

$65.99

$

Usually ships in 3-6 days

0

28

MTD 00035790

Conduit Strap, 1/2

$

$

Not available

29

MTD 00034947

Cap Screw, 5/16-18 x 1/2 Hex Hd.

$

$

Not available

30

MTD 00032078

Nipple, 3/8 MPT Close

$

$

Not available

31

MTD 00032081

Tee, 3/8 FPT Brass

$

$

Not available

32

MTD 01004805

Hose Kit

Note: NLA

$

$

Not available

33

MTD 00031247

Valve, 90°, 1/4 FPT

$52.99

$

Usually ships in 3-6 days

0

34

MTD 00032086

Fitting, Adapter, 1/4 MPT x 11/1 61

$

$

Not available

35

MTD 00032113

Elbow, 90°, 1/4 MPT x 3/8 Hose Barb

$

$

Not available

36

MTD 00037072

Hose, 3/8" x 5" PVC

$

$

Not available
