SY 100 (56A-734-195) - MTD Pro Spreader/Sprayer 100 Gallon, Gasoline-Powered Polyethylene Tank Sprayer Parts Diagram

Pro Spreader/Sprayer

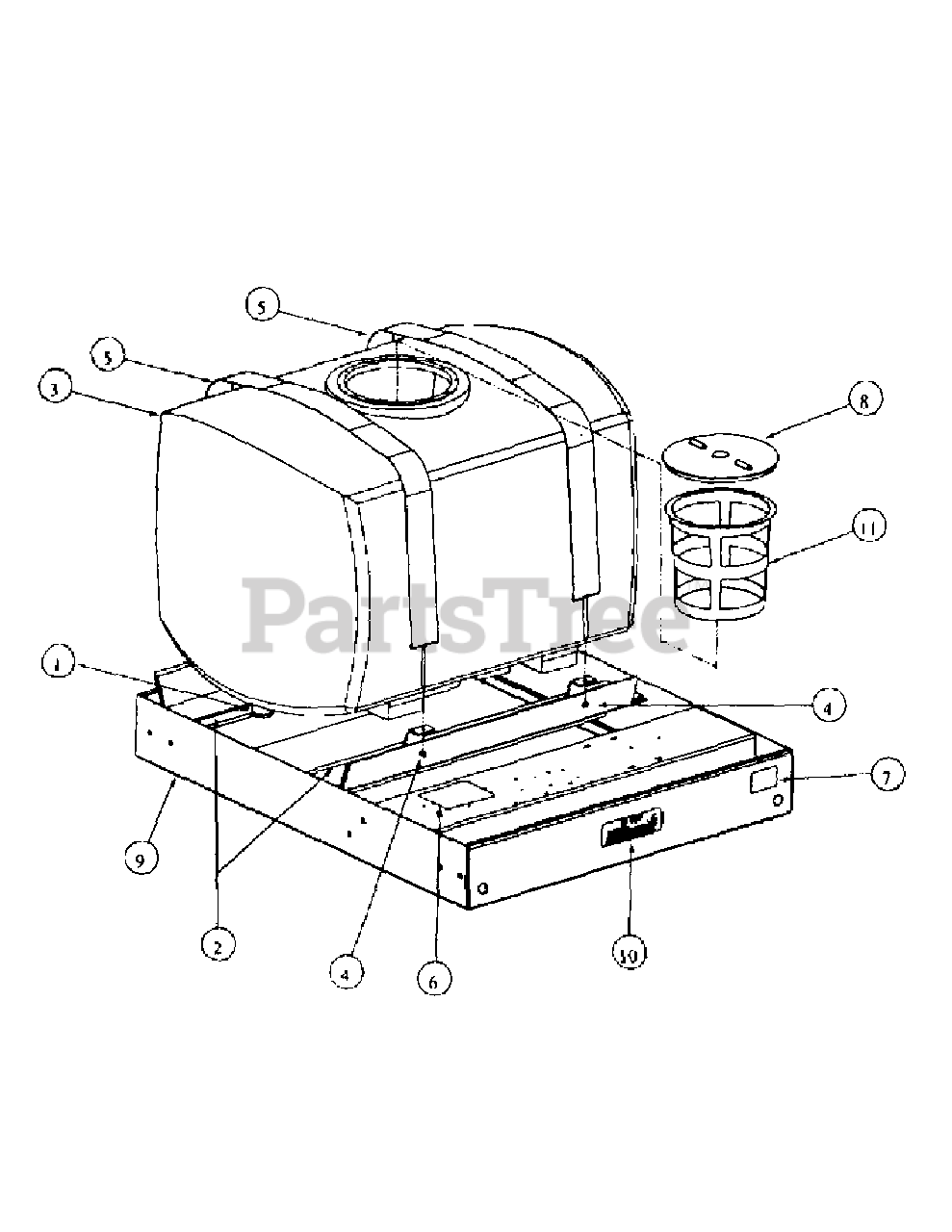

100 Gallon, Gasoline-Powered Polyethylene Tank Sprayer Parts Diagram

  • Title

1

MTD 00003293

Adapter, PVC, 1.25 NPT, 1 NPT

$

$

Not available

2

MTD 00008382

Foam, Adhesive Backed, 4" x 1/4" by ft

$

$

Not available

3

MTD 00009359

100 Gal. Poly Tank w/Lid

$

$

Not available

4

MTD 00012165

Nut, Nylock 5/16 - 18

$4.99

$

In Stock, only 1 left!

0

5

MTD 00014205

Tank Strap Assembly

$

$

Not available

6

MTD 00030677

Decal Safety Procedures

$

$

Not available

7

MTD 00090006

Decal "Made in America"

$

$

Not available

8

MTD 00031899

Tank Lid

$

$

Not available

9

MTD 01003360

Main Frame Assembly

Note: NLA

$

$

Not available

10

MTD 01003845

Decal, "SY 100, 2-1/4" x 7"

Note: NLA

$

$

Not available

11

MTD 00003536

Strainer Basket, 10"

$

$

Not available

MTD 01001047

Filter Kit

Note: (not shown)

$192.99

$

Usually ships in 3-6 days

0
