SXL-AO (UT-10045-E) - Homelite Chainsaw Carburetor (Zama) Parts Diagram

Chainsaw

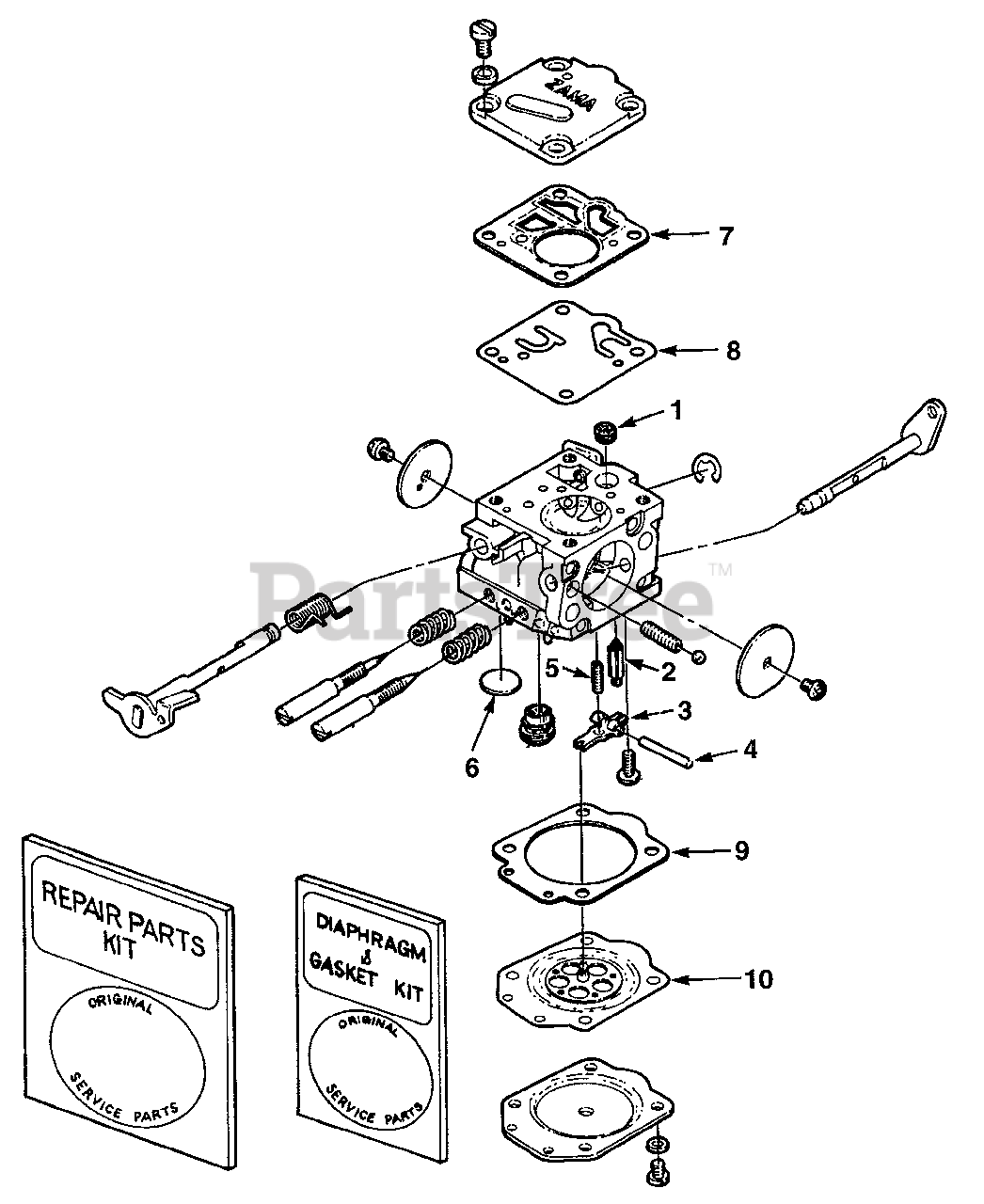

Carburetor (Zama) Parts Diagram

  • Title

Homelite A07048

Carburetor (Zama) C2-20-02
(Superseded to A68371C)

$

$

Not available

1

Homelite 94954

Repair Kit

Note: Includes items (2-10)

$

$

Not available

2

Note: Included in Repair Kit P/N 94954

$

$

Not available

3

Note: Included in Repair Kit P/N 94954

$

$

Not available

4

Note: Included in Repair Kit P/N 94954

$

$

Not available

5

Note: Included in Repair Kit P/N 94954

$

$

Not available

6

Note: Included in Repair Kit P/N 94954

$

$

Not available

Note: Included in Repair Kit P/N 94954

$

$

Not available

7

Homelite 94952

Diaphragm & Gasket Kit

Note: Included in Repair Kit P/N 94952; Includes items (7-10)

$

$

Not available

8

Note: Included in Repair Kit P/N 94954 & Diaphragm & Gasket Kit P/N 94952

$

$

Not available

9

Note: Included in Repair Kit P/N 94954 & Diaphragm & Gasket Kit P/N 94952

$

$

Not available

10

Note: Included in Repair Kit P/N 94954 & Diaphragm & Gasket Kit P/N 94952

$

$

Not available
