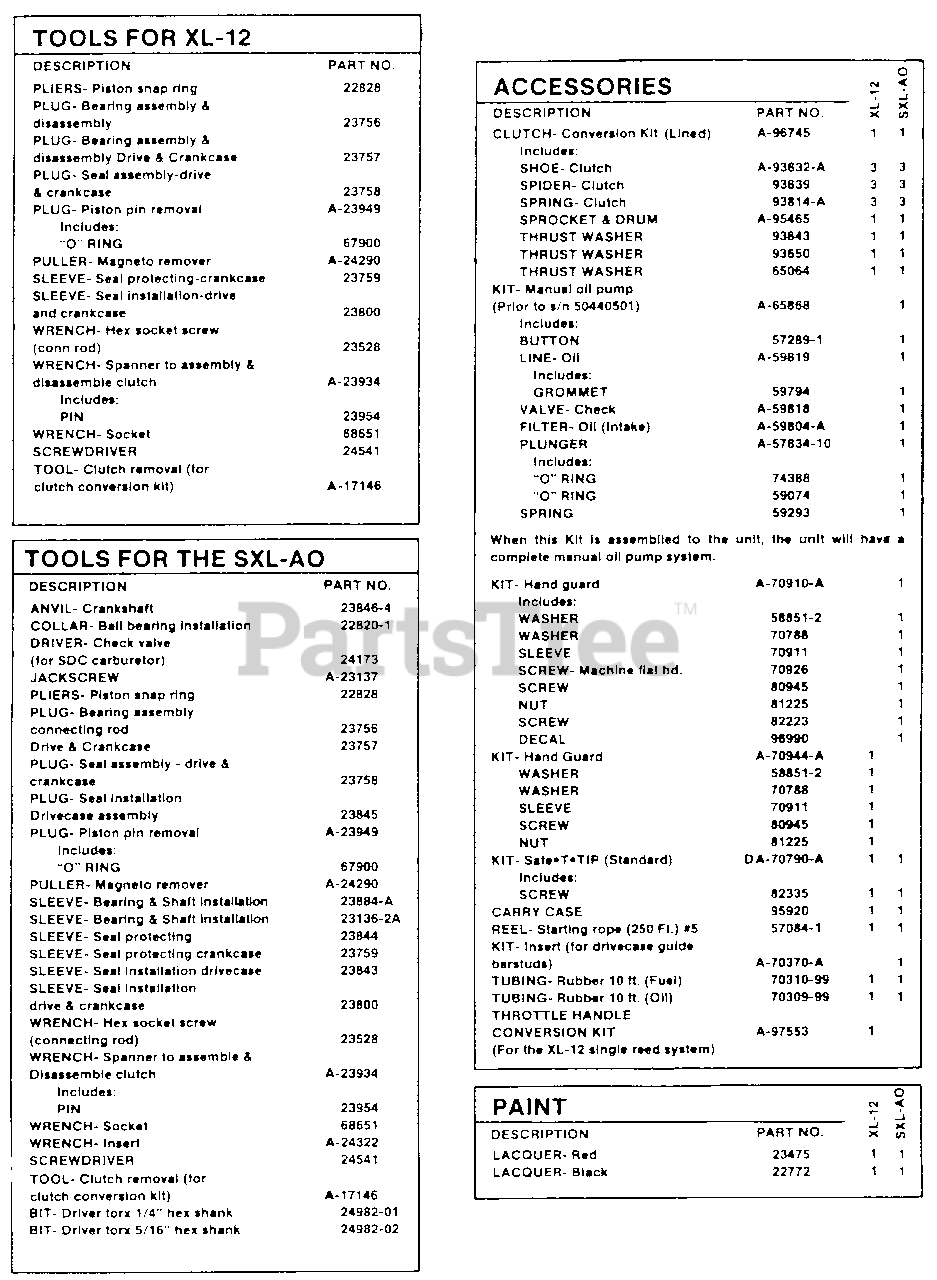

SXL-AO (UT-10045-C) - Homelite Chainsaw Tools & Accessories Parts Diagram

Chainsaw

Tools & Accessories Parts Diagram

  • Title

22828

Homelite 22828

PLIERS- Piston snap ring

$

$

Currently unavailable

23756

Homelite 23756

PLUG- Bearing assembly & disassembly

$

$

Currently unavailable

23757

Homelite 23757

PLUG- Bearing assembly & disassembly Drive & Crankcase

$

$

Not available

23758

Homelite 23758

PLUG- Seal assembly-drive & crankcase
(Superseded to PS23758)

$34.99

$

Usually ships in 3-7 days

0

A-23949

Homelite A23949

PLUG- Piston pin removal

$

$

Currently unavailable

67900

Homelite 67900

"O" RING

$

$

Not available

A-24290

Homelite A24290

PULLER- Magneto remover

$

$

Currently unavailable

23759

Homelite 23759

SLEEVE- Seal protecting-crankcase

$

$

Not available

23800

Homelite 23800

SLEEVE- Seal installation-drive and crankcase
(Superseded to PS23800)

$33.99

$

Usually ships in 3-7 days

0

23528

Homelite 23528

WRENCH- Hex socket screw (conn rod)

$

$

Not available

A-23934

Homelite A23934

WRENCH- Spanner to assembly & disassemble clutch

$

$

Currently unavailable

23954

Homelite 23954

PIN

$

$

Not available

68651

Homelite 68651

WRENCH- Socket
(Superseded to UP06840)

$

$

Not available

24541

Homelite 24541

SCREWDRIVER
(Superseded to UP06840)

$

$

Not available

A-17146

Homelite A17146

TOOL- Clutch removal (for clutch conversion kit)
(Superseded to UP00032)

$

$

Not available

238464

Homelite 238464

ANVIL- Crankshaft

$

$

Currently unavailable

22820-1

Homelite 228201

COLLAR- Ball bearing installation

$

$

Currently unavailable

24173

Homelite 24173

DRIVER- Check valve (or SDC carburetor)

$

$

Not available

A-23137

Homelite A23137

JACKSCREW

$

$

Currently unavailable

22828

Homelite 22828

PLIERS- Piston snap ring

$

$

Currently unavailable

23756

Homelite 23756

PLUG- Bearing assembly connecting rod

$

$

Currently unavailable

23757

Homelite 23757

Drive & Crankcase

$

$

Not available

23758

Homelite 23758

PLUG- Seal assembly - drive & crankcase
(Superseded to PS23758)

$34.99

$

Usually ships in 3-7 days

0

23845

Homelite 23845

PLUG- Seal installation drivecase assembly

$

$

Not available

A-23949

Homelite A23949

PLUG- Piston pin removal

$

$

Currently unavailable

67900

Homelite 67900

"O" RING

$

$

Not available

A-24290

Homelite A24290

PULLER- Magneto remover

$

$

Currently unavailable

23884-A

Homelite 23884A

SLEEVE- Bearing & Shaft installation

$

$

Currently unavailable

23136-2A

Homelite 231362A

SLEEVE- Bearing & Shaft installation

$

$

Currently unavailable

23844

Homelite 23844

SLEEVE- Seal protecting

$

$

Not available

23759

Homelite 23759

SLEEVE- Seal protecting crankcase

$

$

Not available

23843

Homelite 23843

SLEEVE- Seal installation drivecase

$

$

Not available

23800

Homelite 23800

SLEEVE- Seal installation drive & crankcase
(Superseded to PS23800)

$33.99

$

Usually ships in 3-7 days

0

23528

Homelite 23528

WRENCH- Hex socket screw (connecting rod)

$

$

Not available

A-23934

Homelite A23934

WRENCH- Spanner to assemble & Disassemble clutch

$

$

Currently unavailable

23954

Homelite 23954

PIN

$

$

Not available

68651

Homelite 68651

WRENCH- Socket
(Superseded to UP06840)

$

$

Not available

A-24322

Homelite A24322

WRENCH- Insert

$

$

Currently unavailable

24541

Homelite 24541

SCREWDRIVER
(Superseded to UP06840)

$

$

Not available

A-17146

Homelite A17146

TOOL- Clutch removal (for clutch conversion kit)
(Superseded to UP00032)

$

$

Not available

2498201

Homelite 2498201

BIT- Driver torx 1/4" hex shank

$

$

Currently unavailable

2498202

Homelite 2498202

BIT- Driver torx 5/16" hex shank

$

$

Not available

A-96745

Homelite A96745

CLUTCH- Conversion Kit (Lined)

$

$

Currently unavailable

A-93632-A

Homelite A93632A

SHOE- Clutch
(Superseded to UP06461)

$

$

Not available

93639

Homelite 93639

SPIDER- Clutch
(Superseded to UP06983)

$

$

Not available

93814-A

Homelite 93814A

SPRING- Clutch
(Superseded to UP07438)

$

$

Not available

A-95465

Homelite A95465

SPROCKET & DRUM

$

$

Not available

93643

Homelite 93643

THRUST WASHER

$

$

Not available

93650

Homelite 93650

THRUST WASHER

$

$

Not available

65064

Homelite 65064

THRUST WASHER

$

$

Not available

A-65868

Homelite A65868

KIT- Manual oil pump (Prior to s/n 50440501)

$

$

Not available

57289-1

Homelite 572891

BUTTON

$

$

Not available

A-59819

Homelite A59819

LINE- Oil

$20.99

$

In Stock, only 1 left!

0

59794

Homelite 59794

GROMMET

$

$

Not available

A-59818

Homelite A59818

VALVE- Check

$10.99

$

Usually ships in 3-7 days

0

A-59804-A

Homelite A59804A

FILTER- Oil (intake)

$

$

Not available

A-57834-10

Homelite A5783410

PLUNGER

$

$

Currently unavailable

74388

Homelite 74388

"O" RING
(Superseded to UP06601)

$4.99

$

Usually ships in 3-7 days

0

59074

Homelite 59074

"O" RING

$

$

Not available

59293

Homelite 59293

SPRING

$

$

Not available

A-70910-A

Homelite A70910A

KIT- Hand guard

$

$

Currently unavailable

588512

Homelite 588512

WASHER

$

$

Currently unavailable

70788

Homelite 70788

WASHER
(Superseded to UP06837)

$

$

Not available

70911

Homelite 70911

SLEEVE

$

$

Not available

70926

Homelite 70926

SCREW- Machine flat hd.

$

$

Not available

80945

Homelite 80945

SCREW

$

$

Not available

81225

Homelite 81225

NUT

$

$

Not available

82223

Homelite 82223

SCREW
(Superseded to 80945)

$

$

Not available

96990

Homelite 96990

DECAL
(Superseded to 02661)

$

$

Not available

A-70944-A

Homelite A70944A

KIT- Hand Guard

$

$

Currently unavailable

588512

Homelite 588512

WASHER

$

$

Currently unavailable

70788

Homelite 70788

WASHER
(Superseded to UP06837)

$

$

Not available

70911

Homelite 70911

SLEEVE

$

$

Not available

80945

Homelite 80945

SCREW

$

$

Not available

81225

Homelite 81225

NUT

$

$

Not available

DA70790A

Homelite DA70790A

KIT- Safe-T-TlP (Standard)

$

$

Currently unavailable

82335

Homelite 82335

SCREW
(Superseded to UP06708)

$4.49

$

Usually ships in 3-7 days

0

95920

Homelite 95920

CARRY CASE
(Superseded to A09208)

$

$

Not available

57084-1

Homelite 570841

REEL- Starting rope (250 Ft.) #5

$

$

Not available

A-70370-A

Homelite A70370A

KIT- Insert (for drivecase guide barstuds)

$

$

Currently unavailable

7031099

Homelite 7031099

TUBING- Rubber 10 ft. (Fuel)
(Superseded to UP06561)

$

$

Not available

7030999

Homelite 7030999

TUBING- Rubber 10 ft. (Oil)

$

$

Currently unavailable

A-97553

Homelite A97553

THROTTLE HANDLE CONVERSION KIT (For the XL-12 single reed system)

$

$

Not available

23475

Homelite 23475

LACQUER- Red

$

$

Not available

22772

Homelite 22772

LACQUER- Black

$

$

Not available
