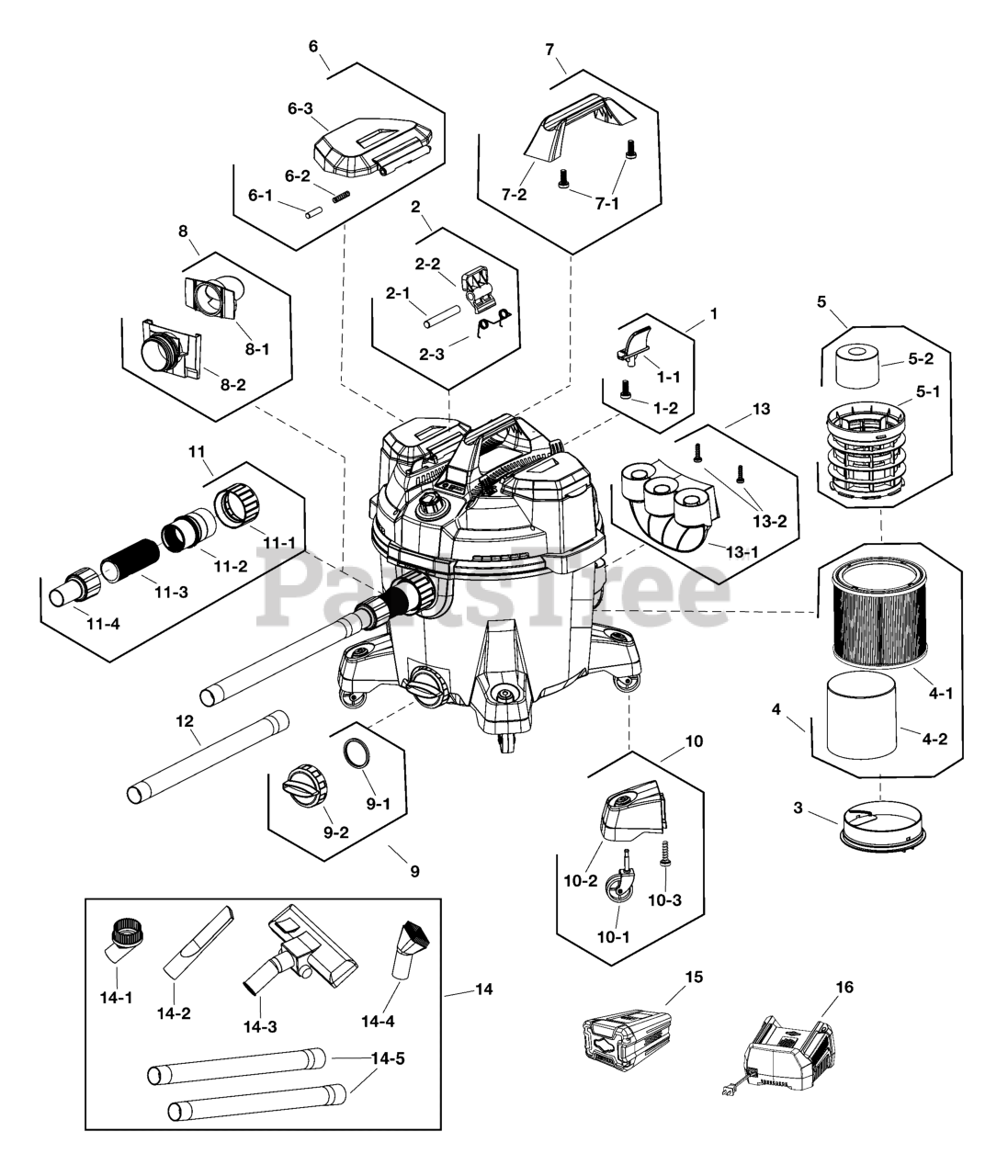

SXDW SV 82 K (1688061-00) - Snapper 82V Shop Vacuum, 9 Gallon Shop Vac Parts Diagram

82V Shop Vacuum, 9 Gallon

Shop Vac Parts Diagram

  • Title

1

Snapper 84004845

BRACKET, Hose

Note: (Includes Ref Nos 1-1 & 1-2)

$

$

Currently unavailable

1-1

BRACKET, Hose

$

$

Not available

1-2

SCREW, ST4 * 12

$

$

Not available

2

Snapper 84004846

KIT, Battery Release

Note: (Includes Ref Nos 2-1 through 2-3)

$

$

Currently unavailable

2-1

PIN

$

$

Not available

2-2

BUTTON, Battery Releasee

$

$

Not available

2-3

SPRING, Torsion

$

$

Not available

3

Snapper 84004847

RETAINER, Filter

$8.99

$

Usually ships in 2-12 days

0

4

Snapper 84004848

FILTER, Cartridge

Note: (Includes Ref Nos 4-1 & 4-2)

$79.99

$

Usually ships in 2-12 days

0

4-1

FILTER, Hepa

$

$

Not available

4-2

SPONGE, Filter

$

$

Not available

5

Snapper 84004849

KIT, Filter Cage

Note: (Includes Ref Nos 5-1 & 5-2)

$

$

Currently unavailable

5-1

CAGE, Filter

$

$

Not available

5-2

FLOAT

$

$

Not available

6

Snapper 84004850

KIT, Cover

Note: (Includes Ref Nos 6-1 through 6-3)

$8.99

$

Usually ships in 2-12 days

0

6-1

PIN

$

$

Not available

6-2

SPRING, Compession

$

$

Not available

6-3

COVER, Battery

$

$

Not available

7

Snapper 84004851

KIT, Handle

Note: (Includes Ref Nos 7-1 & 7-2)

$

$

Currently unavailable

7-1

HANDLE

$

$

Not available

7-2

SCREW, Pan Head, ST5*20-F

$

$

Not available

8

Snapper 84004852

KIT, Inlet Deflector

Note: (Includes Ref Nos 8-1 & 8-2)

$9.49

$

Usually ships in 2-12 days

0

8-1

DEFLECTOR, Bag

$

$

Not available

8-2

COVER, Dust

$

$

Not available

9

Snapper 84004853

KIT, Cover, Drain

Note: (Includes Ref Nos 9-1 & 9-2)

$

$

Currently unavailable

9-1

GASKET

$

$

Not available

9-2

COVER, Drain

$

$

Not available

10

Snapper 84004854

KIT, Caster Wheel

Note: (Includes Ref Nos 10-1 through 10-3)

$17.99

$

Usually ships in 2-12 days

0

10-1

WHEEL, Caster

$

$

Not available

10-2

COVER, Wheel

$

$

Not available

10-3

SCREW, St 4*14

$

$

Not available

11

Snapper 84004855

KIT, Hose

Note: (Includes Ref Nos 9-1 & 9-2)

$

$

Currently unavailable

11-1

RING, Locking

$

$

Not available

11-2

Connector, Hose

$

$

Not available

11-3

Hose

$

$

Not available

11-4

Outlet, Hose

$

$

Not available

12

Snapper 84004856

WAND, Extension

$

$

Currently unavailable

13

Snapper 84005197

TRAY, Accessory

Note: (Includes Ref Nos 13-1 & 13-2)

$

$

Currently unavailable

13-1

TRAY, Accessory

$

$

Not available

13-2

SCREW, St 4*14

$

$

Not available

14

Snapper 84004989

KIT, Cleaning

Note: (Optional) (Includes Ref Nos 14-1 through 14-5)

$

$

Currently unavailable

14-1

BRUSH, Upholstery, Round

$

$

Not available

14-2

Tool, Cervice

$

$

Not available

14-3

BRUSH, Floor

$

$

Not available

14-4

BRUSH, Upholstery, Square

$

$

Not available

14-5

WAND, Extension

$

$

Not available

15

Snapper 1760266

* BATTERY, 2.0, 82V NA

Note: (Optional)

$218.99

$

In Stock, only 1 left!

0

16

Snapper 1760263

* CHARGER, Battery, NA

Note: (Optional)

$119.99

$

Usually ships in 2-12 days

0
