SXD2 BL 82 (1697187-00) - Snapper 82V Leaf Blower, Gen2 Blower Parts Diagram

82V Leaf Blower, Gen2

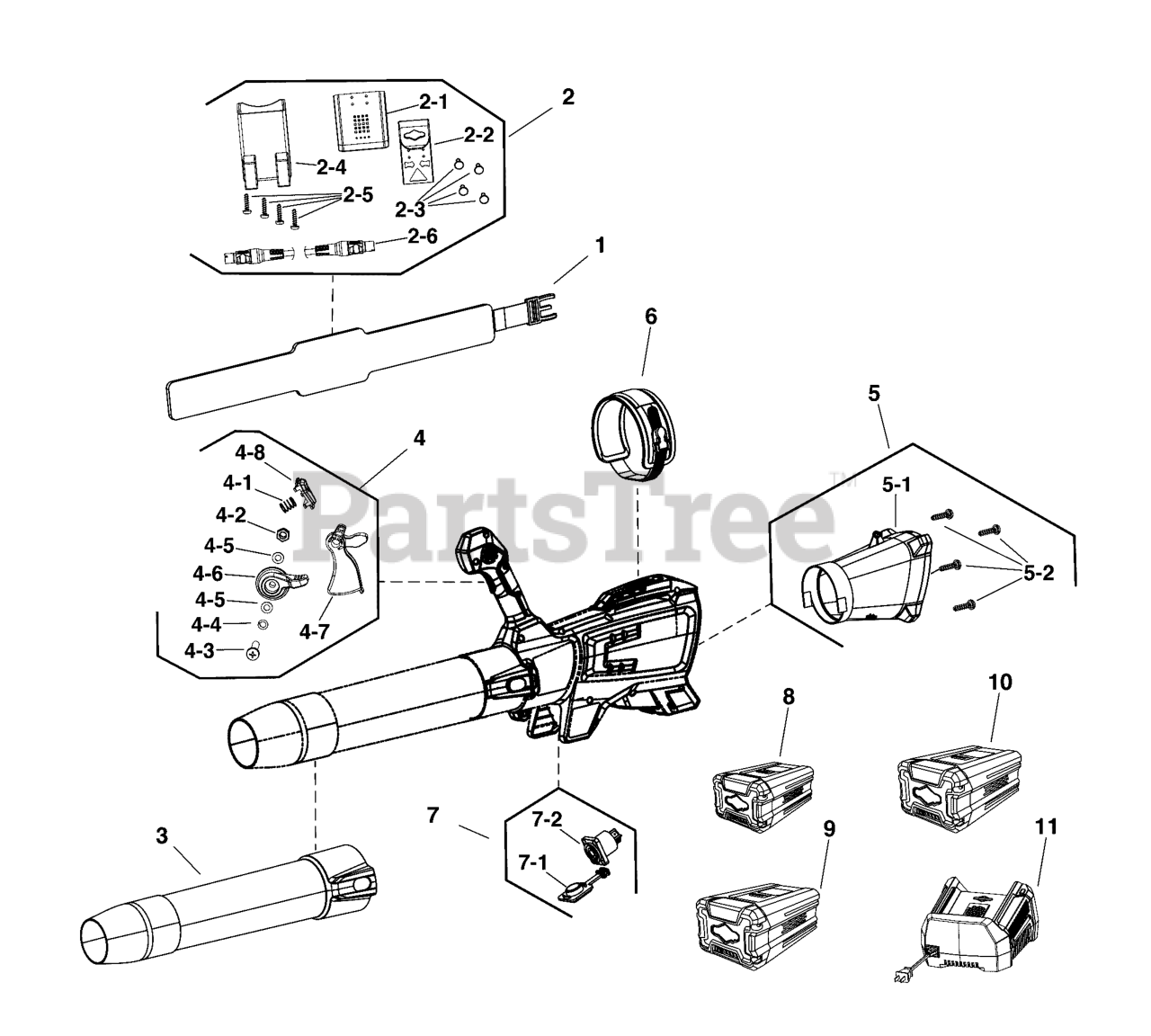

Blower Parts Diagram

  • Title

1

Snapper 84005004

BELT ASSEMBLY

$

$

Currently unavailable

2

Snapper 84005005

KIT, Battery Pack

$

$

Currently unavailable

2-1

BRACKET, Battery Pack

$

$

Not available

2-2

BRACKET, Belt

$

$

Not available

2-3

RIVET, 5*14

$

$

Not available

2-4

BATTERY PACK

$

$

Not available

2-5

SCREW, Pan Head, ST5*20-F

$

$

Not available

2-6

POWER CORD

$

$

Not available

3

Snapper 84005006

TUBE ASSEMBLY

$

$

Currently unavailable

4

Snapper 84005007

KIT, Trigger Switch

$2.49

$

Usually ships in 0 days

0

4-1

SPRING

$

$

Not available

4-2

LOCKNUT, Hexagon, M5

$

$

Not available

4-3

SCREW, Pan Head, M5 x 25

$

$

Not available

4-4

SPRING WASHER

$

$

Not available

4-5

WASHER, Flat

$

$

Not available

4-6

LEVER, Speed

$

$

Not available

4-7

SWITCH, Trigger

$

$

Not available

4-8

BUTTON, On/Off

$

$

Not available

5

Snapper 84005008

KIT, Cover, Rear

$10.99

$

Usually ships in 0 days

0

5-1

COVER, Rear

$

$

Not available

5-2

SCREW

$

$

Not available

6

Snapper 84005009

KIT, Strap

$77.99

$

Usually ships in 0 days

0

7

Snapper 84005010

KIT, Outlet

$1.49

$

Usually ships in 0 days

0

7-1

OUTLET

$

$

Not available

7-2

COVER, Outlet

$

$

Not available

8

Snapper 1760266

* BATTERY, 2.0, 82V NA

Note: (Optional)

$218.99

$

In Stock, only 1 left!

0

9

Snapper 1760265

* BATTERY, 4.0, 82V NA

Note: (Optional)

$370.99

$

Usually ships in 2-12 days

0

10

Snapper 1760966

* BATTERY, 5.0, 82V NA
(Superseded to 1697426)

Note: (Optional)

$478.99

$

Usually ships in 2-12 days

0

11

Snapper 1760263

* CHARGER, Battery, NA

Note: (Optional)

$119.99

$

Usually ships in 2-12 days

0
