SXD 82 ZPSK (1687916-00) - Snapper XD 82V Pole Saw Pole Saw Group Parts Diagram

XD 82V Pole Saw

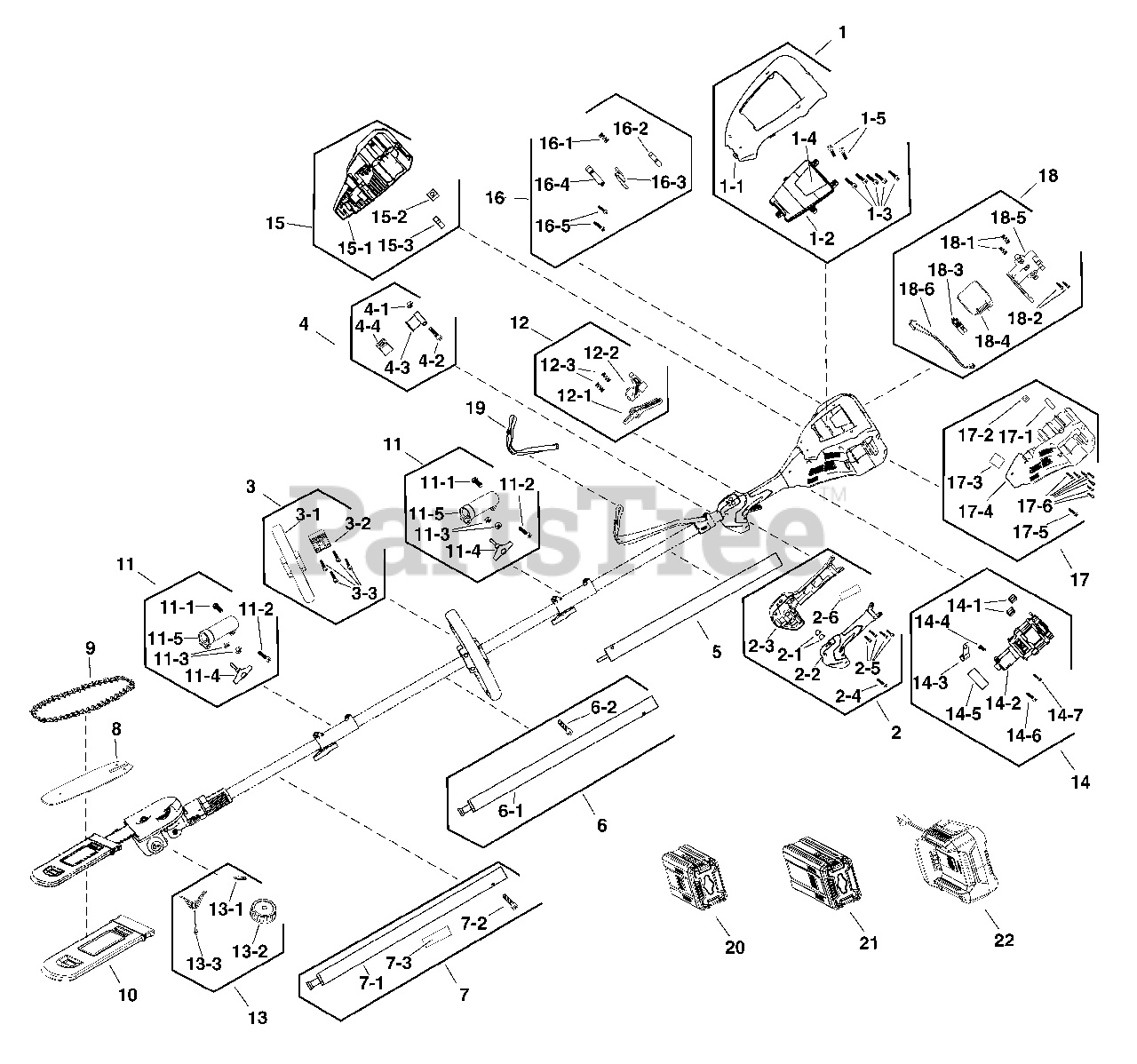

Pole Saw Group Parts Diagram

  • Title

1

Snapper 770148

KIT, TOP COVER, NA

$19.99

$

Usually ships in 2-12 days

0

1-1

TOP COVER

$

$

Not available

1-2

TOP COVER INSERT

$

$

Not available

1-3

SCREW

$

$

Not available

1-4

LABEL

$

$

Not available

1-5

SCREW

$

$

Not available

2

Snapper 770149

KIT, HANDLE, NA & EU

$19.99

$

Usually ships in 2-12 days

0

2-1

BUTTON, PCB

$

$

Not available

2-2

HOUSING, LEFT HANDLE

$

$

Not available

2-3

HOUSING, RIGHT HANDLE

$

$

Not available

2-4

SCREW

$

$

Not available

2-5

SCREW ST4.2-16

$

$

Not available

2-6

LABEL

$

$

Not available

3

Snapper 770150

KIT, AUXILARY HANDLE

$42.99

$

Usually ships in 2-12 days

0

3-1

AUX HANDLE

$

$

Not available

3-2

AUX HANDLE BASE

$

$

Not available

3-3

SCREW

$

$

Not available

4

Snapper 770151

KIT, HARNESS CLAMP

$5.49

$

Usually ships in 2-12 days

0

4-1

NUT

$

$

Not available

4-2

SCREW

$

$

Not available

4-3

CLAMP, HARNESS

$

$

Not available

4-4

CLIP, HARNESS

$

$

Not available

5

Snapper 770153

KIT, Shaft

$72.99

$

Usually ships in 2-12 days

0

6

Snapper 771645

KIT, MIDDLE SHAFT

$90.99

$

Usually ships in 2-12 days

0

6-1

MIDDLE SHAFT

$

$

Not available

6-2

SCREW

$

$

Not available

7

Snapper 771640

KIT, BOTTOM SHAFT

$81.99

$

Usually ships in 2-12 days

0

7-1

BOTTOM SHAFT

$

$

Not available

7-2

SCREW

$

$

Not available

7-3

LABEL

$

$

Not available

8

Snapper 771641

KIT, BAR

Note: (Bar Type: 598849)

$41.99

$

Usually ships in 2-12 days

0

9

Snapper 771642

KIT, CHAIN

Note: (Chain Type: 314J040X)

$34.99

$

Usually ships in 2-12 days

0

10

Snapper 771643

KIT, COVER

$12.99

$

Usually ships in 2-12 days

0

11

Snapper 770158

KIT, COUPLING

$18.99

$

Usually ships in 2-12 days

0

11-1

SCREW

$

$

Not available

11-2

SCREW

$

$

Not available

11-3

BOLT

$

$

Not available

11-4

Snapper 84003525

HANDLE, RELEASE

$4.49

$

In Stock, only 1 left!

0

11-5

COUPLING

$

$

Not available

12

Snapper 770159

KIT, SWITCH AND LOCK-OUT BUTTON

$5.49

$

Usually ships in 2-12 days

0

12-1

TRIGGER

$

$

Not available

12-2

BUTTON, LOCK-OUT

$

$

Not available

12-3

SPRING

$

$

Not available

13

Snapper 771644

KIT, OIL CAP

$10.99

$

Usually ships in 2-12 days

0

13-1

SEAL RING

$

$

Not available

13-2

OIL CAP

$

$

Not available

13-3

OIL CAP CORD

$

$

Not available

14

Snapper 770162

KIT, MOTOR

$173.99

$

Usually ships in 2-12 days

0

14-1

RUBBER PLAT

$

$

Not available

14-2

MOTOR

$

$

Not available

14-3

CLIP

$

$

Not available

14-4

SCREW ST4.2-16

$

$

Not available

14-5

RUBBER PLAT

$

$

Not available

14-6

SCREW

$

$

Not available

14-7

SCREW

$

$

Not available

15

Snapper 770165

KIT, RIGHT HOUSING

$47.99

$

Usually ships in 2-12 days

0

15-1

MOTOR HOUSING

$

$

Not available

15-2

BOLT

$

$

Not available

15-3

RUBBER PLAT

$

$

Not available

16

Snapper 770164

KIT, BATTERY RELEASE BUTTON

$7.49

$

Usually ships in 2-12 days

0

16-1

SPRING

$

$

Not available

16-2

PIN

$

$

Not available

16-3

BUTTON, Battery Releasee

$

$

Not available

16-4

PRESS PLAT

$

$

Not available

16-5

SCREW

$

$

Not available

17

Snapper 770163

KIT, LEFT HOUSING, NA

$47.99

$

Usually ships in 2-12 days

0

17-1

BOLT

$

$

Not available

17-2

RUBBER PLAT

$

$

Not available

17-3

LABEL

$

$

Not available

17-4

MOTOR HOUSING

$

$

Not available

17-5

SCREW

$

$

Not available

17-6

SCREW ST4.2-16

$

$

Not available

18

Snapper 770166

KIT, PCB, NA

$290.99

$

Usually ships in 2-12 days

0

18-1

SPRING

$

$

Not available

18-2

SCREW

$

$

Not available

18-3

SWITCH

$

$

Not available

18-4

PCB

$

$

Not available

18-5

INSERT PLAT

$

$

Not available

18-6

WIRE HARNESS

$

$

Not available

19

Snapper 770167

KIT. HARNESS

$15.99

$

Usually ships in 2-12 days

0

20

Snapper 1760266

* BATTERY, 2.0, 82V NA

Note: (Option)

$218.99

$

In Stock, only 1 left!

0

21

Snapper 1760265

* BATTERY, 4.0, 82V NA

Note: (Option)

$370.99

$

Usually ships in 2-12 days

0

22

Snapper 1760263

* CHARGER, Battery, NA

Note: (Option)

$119.99

$

Usually ships in 2-12 days

0

--

Snapper 770294

REMOTE BELT FOR BATTERY

Note: (Not Shown)

$186.99

$

Usually ships in 2-12 days

0
