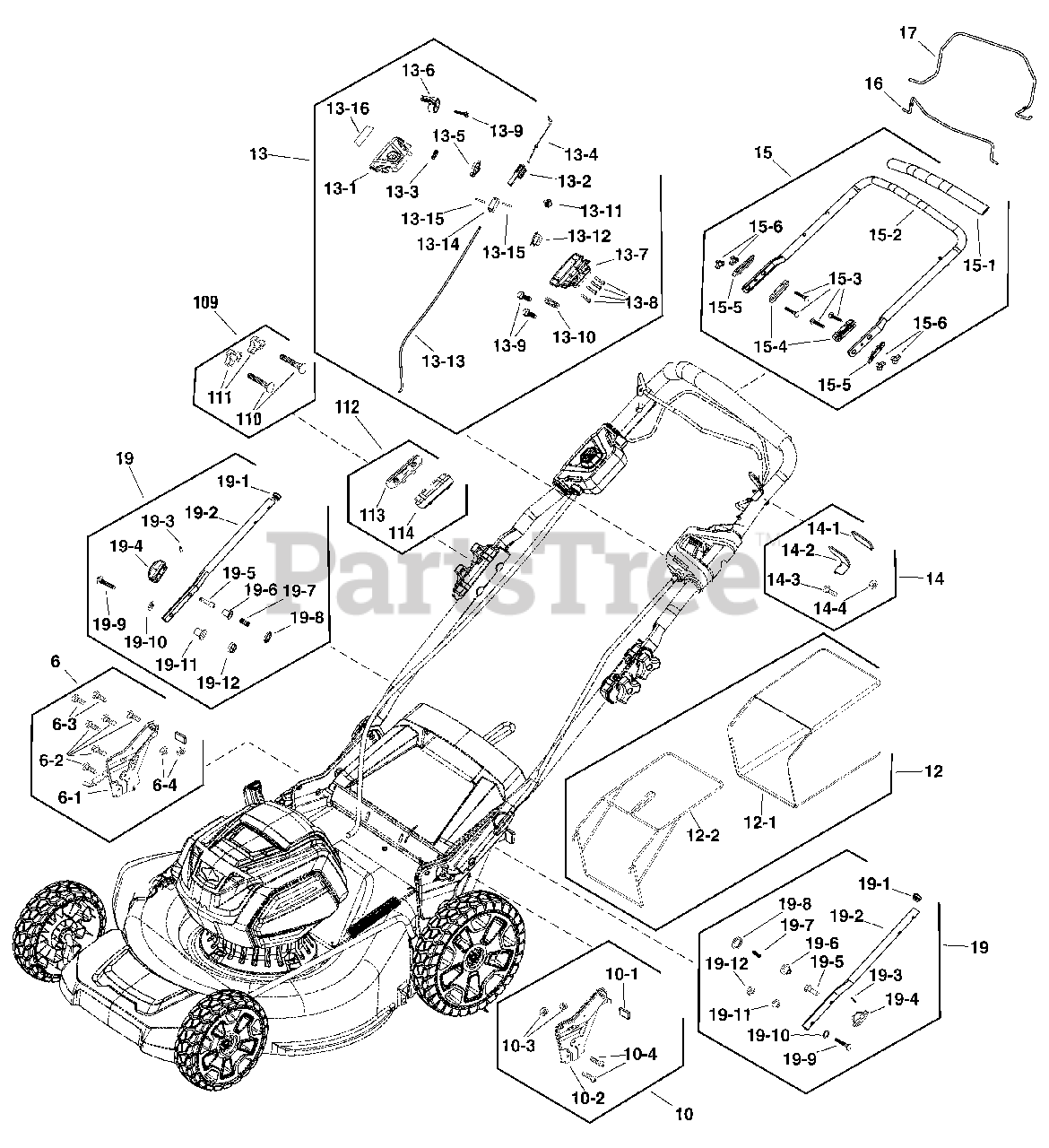

SXD 21SPWM82 (80076046) - Snapper XD 82V 21" SP Walk-Behind Mower Handles Group Parts Diagram

XD 82V 21" SP Walk-Behind Mower

Handles Group Parts Diagram

  • Title

6

Snapper 771636

KIT, RIGHT HEIGHT ADJUST

$54.99

$

Usually ships in 2-12 days

0

6-1

BUMPER

$

$

Not available

6-2

RIGHT HEIGHT ADJUST

$

$

Not available

6-3

BOLT

$

$

Not available

6-4

NUT

$

$

Not available

10

Snapper 771588

KIT, LEFT HEIGHT ADJUST

$48.99

$

Usually ships in 2-12 days

0

10-1

BUMPER

$

$

Not available

10-2

BRACKET, Height Adjust

$

$

Not available

10-3

NUT

$

$

Not available

10-4

BOLT

$

$

Not available

12

Snapper 770182

GRASS CATCHER ASSEMBLY

$289.99

$

In Stock, only 1 left!

0

12-1

GRASS BAG

$

$

Not available

12-2

FRAME

$

$

Not available

13

Snapper 771590

KIT, SPEED CONTROL

$73.99

$

Usually ships in 2-12 days

0

13-1

SWITCH BOX COVER

$

$

Not available

13-2

SLIDER

$

$

Not available

13-3

SPRING

$

$

Not available

13-4

Snapper 84003406

CABLE, Bail

$6.99

$

In Stock, only 2 left!

0

13-5

SELF-PROPEL GEAR, BIG

$

$

Not available

13-6

Snapper 84003407

KIT, Speed Control

$3.99

$

Usually ships in 2-12 days

0

13-7

COVER, Bottom

$

$

Not available

13-8

SCREW ST4.2*25

$

$

Not available

13-9

SCREW ST4.2-16

$

$

Not available

13-10

CLAMP

$

$

Not available

13-11

BLOCK

$

$

Not available

13-12

SELF-PROPEL GEAR, SMALL

$

$

Not available

13-13

Snapper 84003408

HARNESS, SPEED CONTROL

$31.99

$

Usually ships in 2-12 days

0

13-14

Snapper 84003409

SWITCH

$14.99

$

In Stock, only 1 left!

0

13-15

Snapper 84003410

PIN. ROLL

$2.49

$

Usually ships in 2-12 days

0

13-16

LABEL

$

$

Not available

14

Snapper 771594

KIT, STOP

$6.49

$

In Stock, only 1 left!

0

14-1

SPONGE

$

$

Not available

14-2

BRACKET

$

$

Not available

14-3

BOLT M5X35

$

$

Not available

14-4

NUT

$

$

Not available

15

Snapper 771595

KIT, UPPER HANDLE

$139.99

$

Usually ships in 2-12 days

0

15-1

GRIP, Foam

$

$

Not available

15-2

HANDLE, Upper

$

$

Not available

15-3

BOLT M8

$

$

Not available

15-4

HANDLE BRACKET INSIDE

$

$

Not available

15-5

HANDLE BRACKET OUTSIDE

$

$

Not available

15-6

KNOB

$

$

Not available

16

Snapper 770169

KIT, Bail

$40.99

$

In Stock, only 1 left!

0

17

Snapper 771596

KIT, SELF-PROPELLED LEVER

$32.99

$

In Stock, only 2 left!

0

19

Snapper 771597

KIT, LOWER HANDLE

$39.99

$

Usually ships in 2-12 days

0

19-1

CAP

$

$

Not available

19-2

HANDLE, Lower

$

$

Not available

19-3

PIN

$

$

Not available

19-4

KNOB

$

$

Not available

19-5

ADJUSTMENT PIN

$

$

Not available

19-6

BUSHING

$

$

Not available

19-7

SPRING

$

$

Not available

19-8

GASKET

$

$

Not available

19-9

BOLT M8X35

$

$

Not available

19-10

WASHER, Flat

$

$

Not available

19-11

NUT

$

$

Not available

19-12

NUT, M8

$

$

Not available

109

Snapper 770175

KIT, Hardware

$6.49

$

In Stock, Qty 5

0

110

BOLT

$

$

Not available

111

KNOB

$

$

Not available

112

Snapper 770176

KIT, Handle Bracket

$12.99

$

In Stock, only 1 left!

0

113

BRACKET

$

$

Not available

114

BRACKET

$

$

Not available
