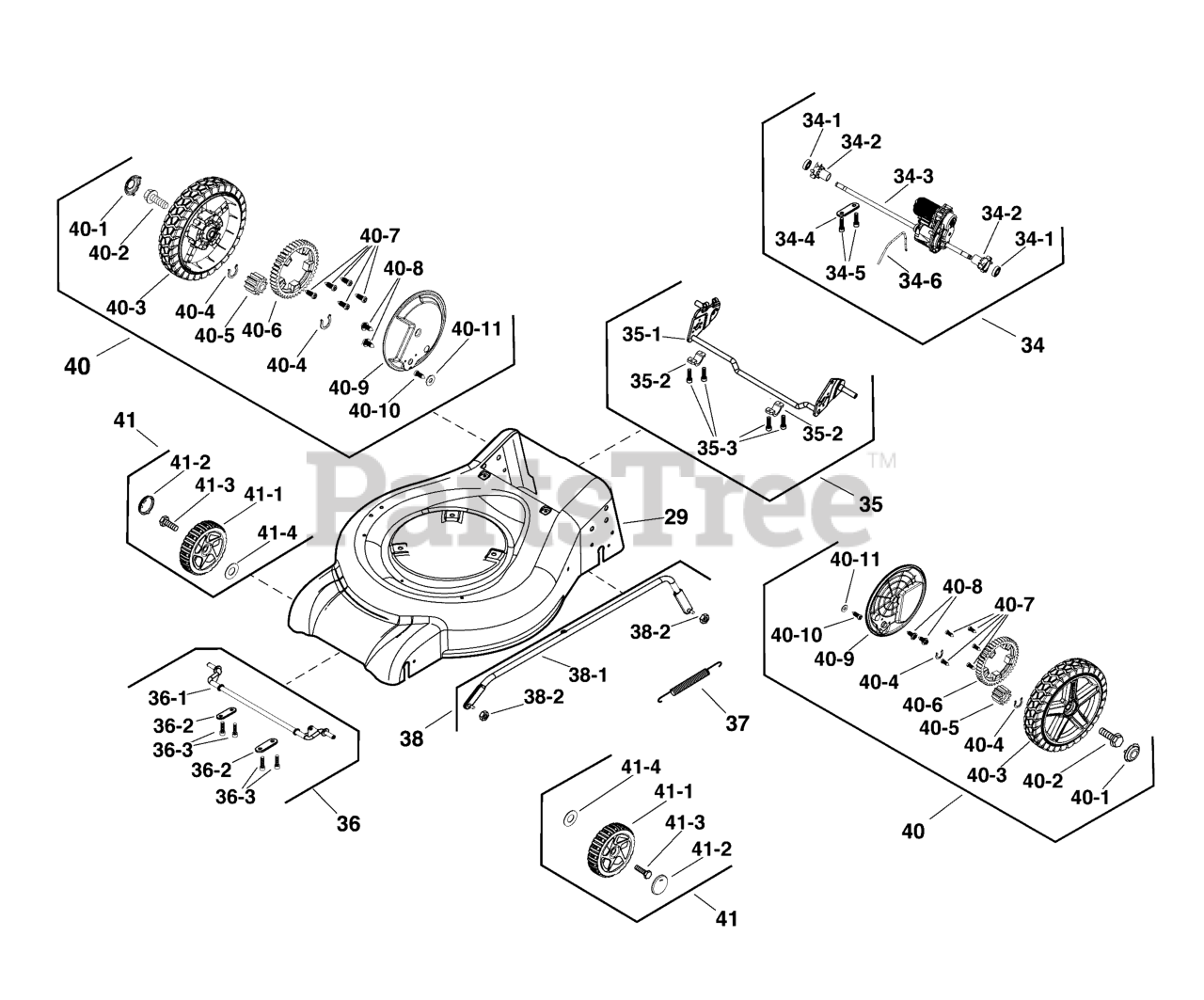

  • Title

29

MOWER DECK

Note: (Order Wholegood)

$

$

Not available

34

Snapper 84004185

KIT, GEARBOX

Note: (Includes Ref. Nos. 34-1 through 34-6)

$216.99

$

Usually ships in 2-12 days

0

34-1

BEARING

$

$

Not available

34-2

COLLAR, Locking

$

$

Not available

34-3

GEARBOX

$

$

Not available

34-4

PLATE, Axle

$

$

Not available

34-5

SCREW, Pan Torx Self Tap, ST4.2 x 20-C

$

$

Not available

34-6

BAFFLE, Rear

$

$

Not available

35

KIT, Rear Axle

Note: (Order Wholegood)

$

$

Not available

35-1

AXLE, REAR

$

$

Not available

35-2

PLATE, Axle

$

$

Not available

35-3

SCREW, Pan Torx Self Tap, ST4.2 x 20-C

$

$

Not available

36

Snapper 770186

KIT, Front Axle

Note: (Includes Ref. Nos. 36-1 through 36-3)

$43.99

$

Usually ships in 2-12 days

0

36-1

AXLE, Front

$

$

Not available

36-2

PLATE, Axle

$

$

Not available

36-3

SCREW, Pan Torx Self Tap, ST4.2 x 20-C

$

$

Not available

37

Snapper 84001935

SPRING, Height Adjust

$5.99

$

Usually ships in 2-12 days

0

38

HEIGHT ADJUST ASSEMBLY

Note: (Order Wholegood)

$

$

Not available

38-1

ROD, Height Adjust

$

$

Not available

38-2

NUT

$

$

Not available

40

Snapper 84004190

KIT, Rear Wheel, 10"

Note: (Includes Ref. Nos. 40-1 through 40-11

$47.99

$

Usually ships in 2-12 days

0

40-1

COVER, Wheel

$

$

Not available

40-2

BOLT

$

$

Not available

40-3

WHEEL, 10"

$

$

Not available

40-4

RING, Snap

$

$

Not available

40-5

GEAR, Drive

$

$

Not available

40-6

Snapper 84003415

GEAR, Drive

$14.99

$

In Stock, only 1 left!

0

40-7

SCREW, HexHead Self Tap, ST4.2 x 20-C

$

$

Not available

40-8

SCREW, HexHead Self Tap

$

$

Not available

40-9

COVER, Dust

$

$

Not available

40-10

SCREW, Socket Head, ST4.2 x 20

$

$

Not available

40-11

GASKET, 5.3

$

$

Not available

41

Snapper 770188

KIT, Wheel, 8"

Note: (Includes Ref. Nos. 41-1 through 41-4)

$40.99

$

Usually ships in 2-12 days

0

41-1

WHEEL, 8"

$

$

Not available

41-2

WASHER

$

$

Not available

41-3

BOLT

$

$

Not available

41-4

COVER, Wheel

$

$

Not available
