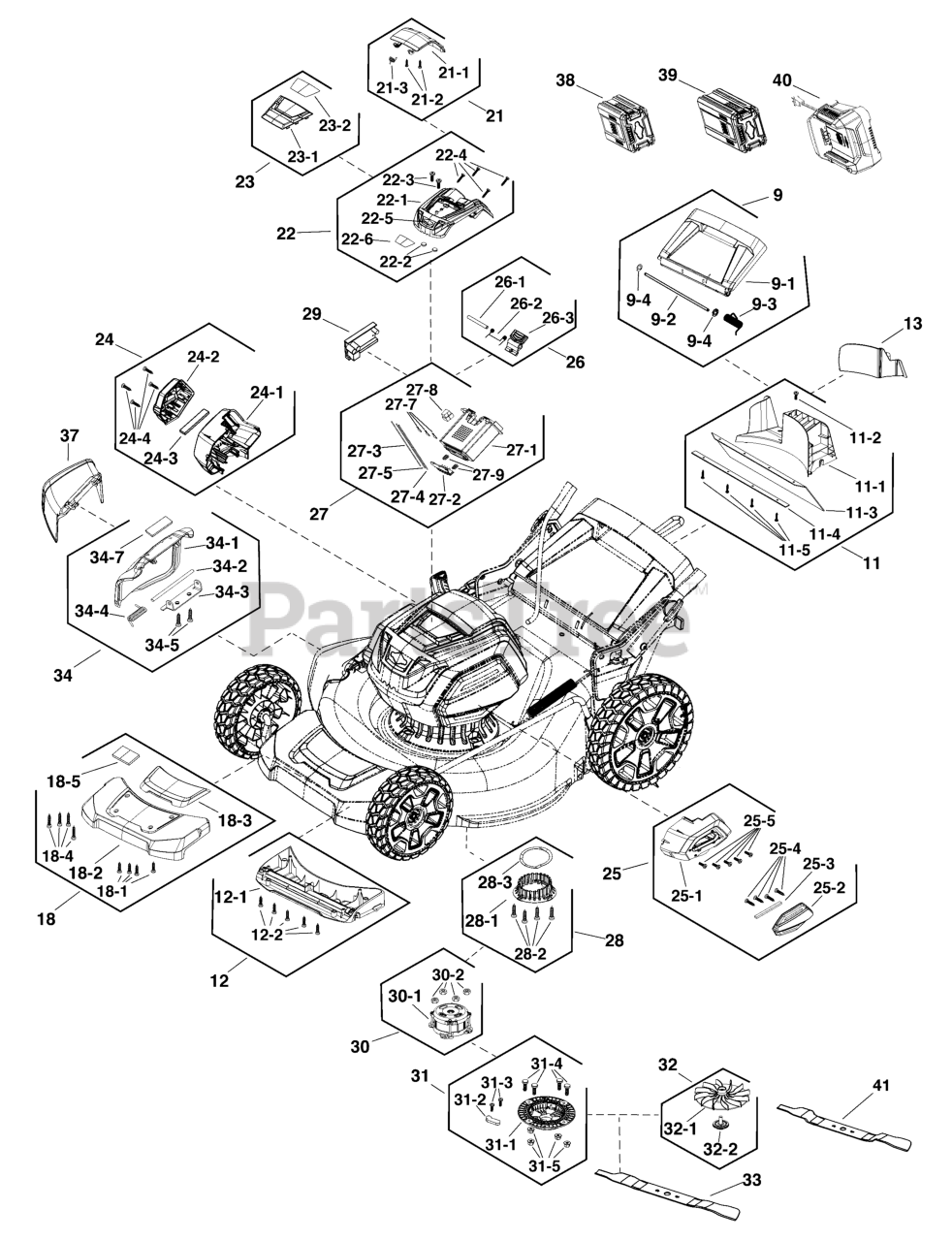

SXD 19PWM82 (80076048) - Snapper XD 82V 19" Walk-Behind Mower Battery & Cover Group Parts Diagram

XD 82V 19" Walk-Behind Mower

Battery & Cover Group Parts Diagram

  • Title

9

Snapper 771427

KIT, Rear Cover

$57.99

$

In Stock, only 1 left!

0

9-1

COVER, Rear

$

$

Not available

9-2

PIN

$

$

Not available

9-3

SPRING

$

$

Not available

9-4

WASHER, Split

$

$

Not available

9-5

DECAL, Warning

Note: (Not Shown)

$

$

Not available

11

Snapper 771429

KIT, REAR BAFFLE

$84.99

$

Usually ships in 2-12 days

0

11-1

REAR BAFFLE

$

$

Not available

11-2

SCREW

$

$

Not available

11-3

COVER

$

$

Not available

11-4

PLATE

$

$

Not available

11-5

SCREW, Pan Torx Self Tap, ST4.2 x 20-C

$

$

Not available

12

Snapper 771430

KIT, Front Bulkhead

$32.99

$

Usually ships in 2-12 days

0

12-1

BAFFLE, Front

$

$

Not available

12-2

SCREW

$

$

Not available

13

Snapper 771431

MULCH PLUG

$32.99

$

Usually ships in 2-12 days

0

18

Snapper 771466

KIT, Front Panel

$34.99

$

Usually ships in 2-12 days

0

18-1

SCREW ST4.2-12

$

$

Not available

18-2

BUMPER

$

$

Not available

18-3

COVER, Bumper

$

$

Not available

18-4

SCREW, Pan Torx Self Tap, ST4.2 x 20-C

$

$

Not available

18-5

DECAL

$

$

Not available

21

Snapper 771439

KIT, Battery Cover

$38.99

$

Usually ships in 2-12 days

0

21-1

COVER, Battery

$

$

Not available

21-2

SCREW

$

$

Not available

21-3

SPRING

$

$

Not available

22

Snapper 771440

KIT, Top Cover

$53.99

$

Usually ships in 2-12 days

0

22-1

COVER, Top

$

$

Not available

22-2

MAGNET

$

$

Not available

22-3

SCREW

$

$

Not available

22-4

SCREW, HexHead Self Tap, ST4.2 x 20-C

$

$

Not available

22-5

B&S LOGO

$

$

Not available

22-6

LABEL

$

$

Not available

23

Snapper 771468

KIT, Cover

$8.49

$

Usually ships in 2-12 days

0

23-1

TOP COVER

$

$

Not available

23-2

SHROUD

$

$

Not available

24

Snapper 771442

KIT, RIGHT COVER

$

$

Currently unavailable

24-1

COVER, Right

$

$

Not available

24-2

COVER, Right

$

$

Not available

24-3

SCREEN, Dust

$

$

Not available

24-4

SCREW

$

$

Not available

25

Snapper 771443

KIT, Left Cover

$40.99

$

Usually ships in 2-12 days

0

25-1

COVER, Left

$

$

Not available

25-2

HOUSING, Left

$

$

Not available

25-3

SCREEN, Dust

$

$

Not available

25-4

SCREW

$

$

Not available

25-5

SCREW, HexHead Self Tap, ST4.2 x 20-C

$

$

Not available

26

Snapper 771444

KIT, RELEASE BUTTON

$

$

Currently unavailable

26-1

PIN

$

$

Not available

26-2

SPRING

$

$

Not available

26-3

BUTTON

$

$

Not available

27

Snapper 771445

KIT, BATTERY COMPARTMENT

$47.99

$

Usually ships in 2-12 days

0

27-1

HOUSING, Battery

$

$

Not available

27-2

TERMINAL

$

$

Not available

27-3

WIRE, Red

$

$

Not available

27-4

WIRE, Yellow

$

$

Not available

27-5

WIRE, Black

$

$

Not available

27-7

CONTACT

$

$

Not available

27-8

CONNECTOR

$

$

Not available

27-9

SPRING

$

$

Not available

28

Snapper 771446

KIT, BASE

$35.99

$

Usually ships in 2-12 days

0

28-1

BASE

$

$

Not available

28-2

SCREW, HexHead Self Tap, ST4.2 x 20-C

$

$

Not available

28-3

SEAL

$

$

Not available

29

Snapper 771447

KIT, PCB, NA

$365.99

$

Usually ships in 2-12 days

0

30

Snapper 771448

KIT, Motor

$225.99

$

Usually ships in 2-12 days

0

30-1

MOTOR

$

$

Not available

30-2

NUT

$

$

Not available

31

Snapper 771449

KIT, MOTOR BASE

$26.99

$

Usually ships in 2-12 days

0

31-1

MOTOR BASE

$

$

Not available

31-2

DISC, Tension

$

$

Not available

31-3

SCREW

$

$

Not available

31-4

BOLT

$

$

Not available

31-5

NUT

$

$

Not available

32

Snapper 771450

KIT, Fan

$20.99

$

In Stock, only 2 left!

0

32-1

FAN

$

$

Not available

32-2

Snapper 84003533

KIT, Bolt

$69.99

$

Usually ships in 2-12 days

0

33

Snapper 771451

KIT, Blade

$28.99

$

In Stock, only 1 left!

0

34

Snapper 771452

KIT, COVER, NA

$17.99

$

Usually ships in 2-12 days

0

34-1

SIDE DISCHARGE COVER

$

$

Not available

34-2

PIN

$

$

Not available

34-3

BRACKET

$

$

Not available

34-4

SPRING, Torsion

$

$

Not available

34-5

BOLT

$

$

Not available

34-7

LABEL

$

$

Not available

37

Snapper 771455

KIT, Deflector

$37.99

$

Usually ships in 2-12 days

0

38

Snapper 1760266

* BATTERY, 2.0, 82V NA

Note: (Optional)

$218.99

$

In Stock, only 1 left!

0

39

Snapper 1760265

* BATTERY, 4.0, 82V NA

Note: (Optional)

$370.99

$

Usually ships in 2-12 days

0

40

Snapper 1760263

* CHARGER, Battery, NA

Note: (Optional)

$119.99

$

Usually ships in 2-12 days

0

41

Snapper 84004202

BLADE, Mulching, 19"

Note: (Optional)

$30.99

$

In Stock, only 1 left!

0

--

Snapper 770294

REMOTE BELT FOR BATTERY

Note: (Not Shown)

$186.99

$

Usually ships in 2-12 days

0
