SX400DSM500 (SX40) - Subaru Robin Engine 700 Electric Device Parts Diagram

Engine

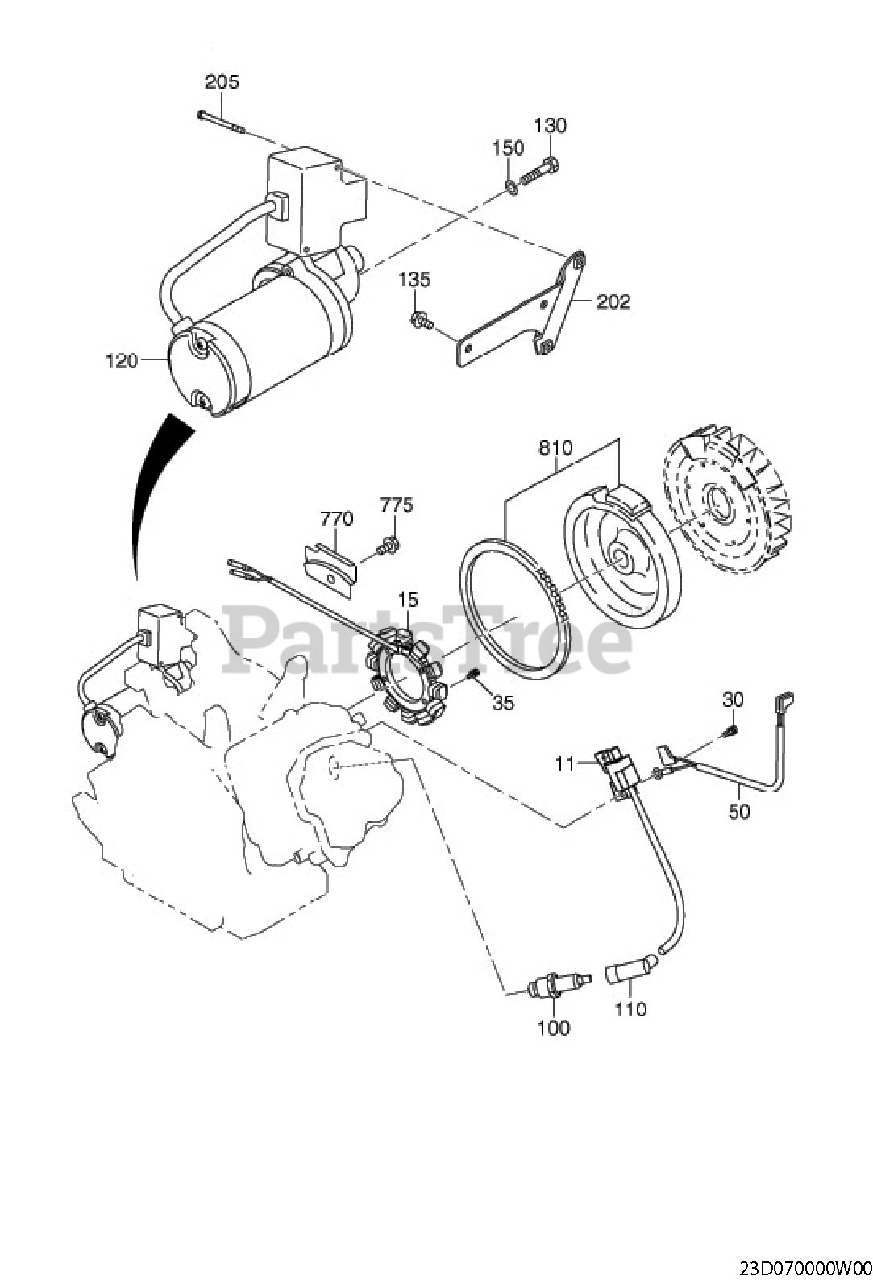

700 Electric Device Parts Diagram

  • Title

11

22G-79430-01

IGNITION COIL

Note: NOT AVAILABLE

$

$

Not available

15

23D-79301-01

LAMP COIL CP

Note: NOT AVAILABLE

$

$

Not available

30

Subaru Robin 001-14063-00

BOLT AND WASHER

Note: M6X1.0X30L W/W. SW

$0.99

$

In Stock, only 3 left!

0

35

Subaru Robin 004-35062-00

SCREW AND WASHER

Note: M6X1.0X20L W/SW

$0.99

$

Usually ships in 2-12 days

0

50

23D-73111-01

WIRE 11 CP

Note: NOT AVAILABLE

$

$

Not available

100

Subaru Robin 065-01407-40

SPARK PLUG

Note: NGK BR4HS

$3.49

$

In Stock, Qty 7

0

110

Subaru Robin 065-50003-11

SPARK PLUG CAP

$46.99

$

Usually ships in 2-12 days

0

120

23D-70503-00

STARTING MOTOR AY

Note: NOT AVAILABLE

$

$

Not available

130

Subaru Robin 214-79007-01

BOLT CP, STARTER

Note: M8X1.25X30L

$4.49

$

Usually ships in 2-12 days

0

135

Subaru Robin 011-00600-20

FLANGE BOLT

Note: M6X1.0X14DX12L

$2.99

$

In Stock, Qty 7

0

150

Subaru Robin 003-10080-00

WASHER

Note: 8.5DX16DX1.2T

$0.99

$

In Stock, only 1 left!

0

202

23D-76001-01

BRACKET(CONT. BOX) CP

Note: NOT AVAILABLE

$

$

Not available

205

Subaru Robin 013-10401-20

SCREW AND WASHER AY

$0.99

$

Usually ships in 2-12 days

0

770

Subaru Robin 20B-75501-13

WIRE CLAMP

$4.49

$

Usually ships in 2-12 days

0

775

Subaru Robin 015-20600-90

TAPPING BOLT

Note: M6X13DX10L

$1.99

$

In Stock, Qty 7

0

810

23D-79260-01

FLYWHEEL CP

Note: NOT AVAILABLE

$

$

Not available
