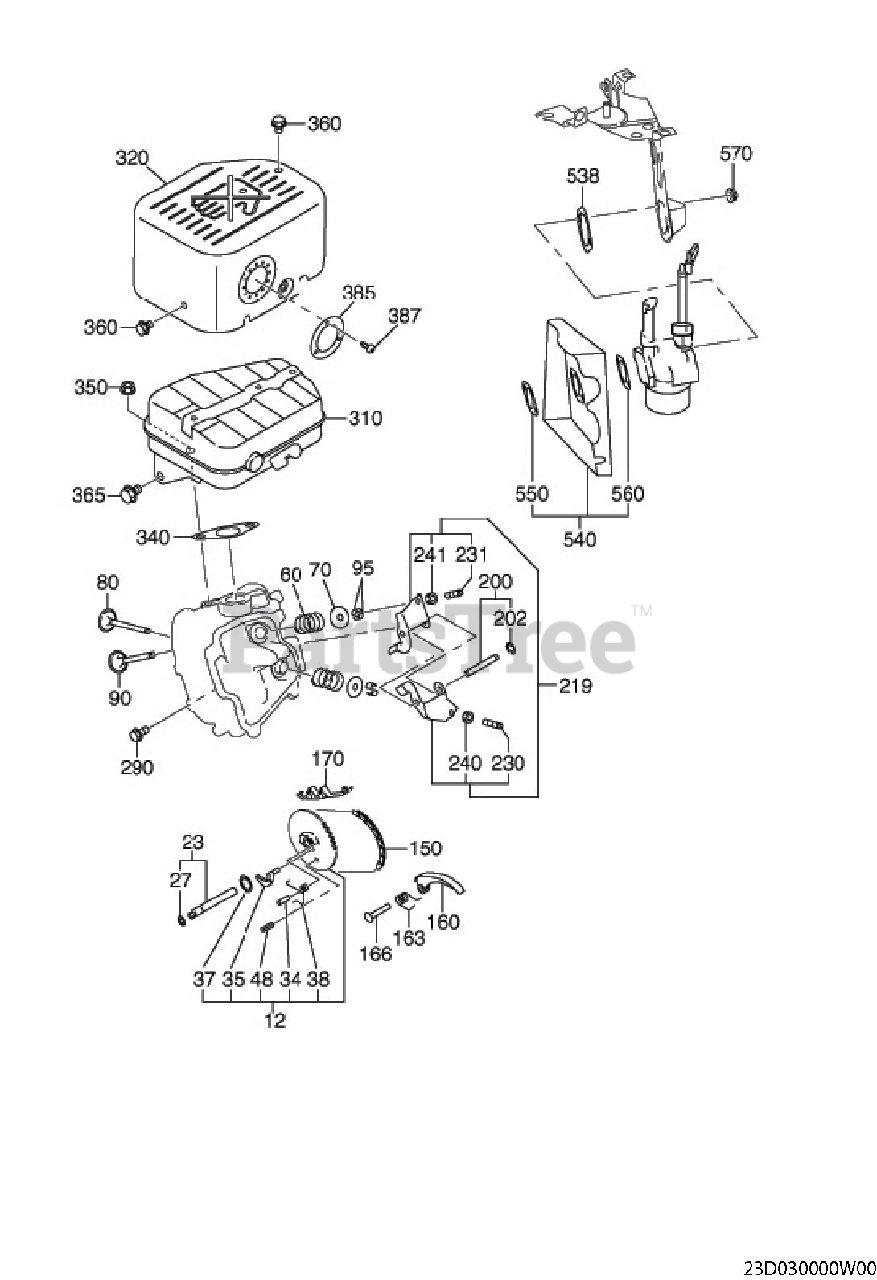

SX400DSM500 (SX40) - Subaru Robin Engine 300 Intake & Exhaust Parts Diagram

Engine

300 Intake & Exhaust Parts Diagram

  • Title

12

Subaru Robin 20B-31601-20

CAMSHAFT AY

$332.99

$

Usually ships in 2-12 days

0

23

Subaru Robin 20B-35101-21

PIN(CAM SHAFT)CP

$17.99

$

Usually ships in 2-12 days

0

27

Subaru Robin 024-00700-21

O-RING

$2.49

$

Usually ships in 2-12 days

0

34

Subaru Robin 005-19041-00

SPRING PIN

Note: 4.4DX10LX0.8T

$0.99

$

In Stock, only 2 left!

0

35

Subaru Robin 277-36401-13

RELEASE LEVER

$18.99

$

Usually ships in 2-12 days

0

37

Subaru Robin 20B-36501-03

CLIP

$0.99

$

In Stock, Qty 18

0

38

Subaru Robin 277-38702-03

RETURN SPRING

Note: 5.1DX0.6DX4.4L N=7

$2.49

$

In Stock, Qty 6

0

48

Subaru Robin 031-80500-20

ROLL PIN

$1.49

$

Usually ships in 2-12 days

0

60

Subaru Robin 246-33611-03

VALVE SPRING

Note: 22.2DX2.9DX37L N=6.5

$4.99

$

Usually ships in 2-12 days

0

70

Subaru Robin 246-33711-13

SPRING RETAINER

Note: 7.6DX26DX8T

$8.99

$

Usually ships in 2-12 days

0

80

Subaru Robin 20B-33402-H3

INTAKE VALVE

$32.99

$

Usually ships in 2-12 days

0

90

Subaru Robin 20B-33502-H3

EXHAUST VALVE

$57.99

$

Usually ships in 2-12 days

0

95

Subaru Robin 246-35501-03

Collet Valve

$2.49

$

In Stock, Qty 6

0

150

Subaru Robin 20B-35601-H1

TIMING CHAIN CP

Note: 112 LINK

$42.99

$

Usually ships in 2-12 days

0

160

Subaru Robin 20A-36911-03

TENTIONER

$6.99

$

In Stock, only 1 left!

0

163

Subaru Robin 277-37101-03

SPRING(TENTIONER)

Note: 10DX1.8DX14L N=4.5

$

$

Not available

166

Subaru Robin 277-36902-03

PIN(TENTIONER)

Note: 6DX13DX34L

$4.99

$

In Stock, only 2 left!

0

170

Subaru Robin 20A-36913-03

CHAIN GUIDE

$5.49

$

In Stock, only 1 left!

0

200

Subaru Robin 20B-35001-01

PIN(ROCKER)CP

$17.99

$

In Stock, only 1 left!

0

202

Subaru Robin 003-13060-00

CLIP

Note: 6DX12DX0.8T

$0.99

$

Usually ships in 2-12 days

0

219

20B-36001-07

ROCKER ARM AY SET

$

$

Not available

230

Subaru Robin 014-90500-20

ADJUST SCREW

Note: M5X0.5X23L

$3.99

$

Usually ships in 2-12 days

0

231

Subaru Robin 014-90500-20

ADJUST SCREW

Note: M5X0.5X23L

$3.99

$

Usually ships in 2-12 days

0

240

Subaru Robin 017-00500-30

NUT

Note: M5X0.5X4.1H

$1.49

$

In Stock, only 2 left!

0

241

Subaru Robin 017-00500-30

NUT

Note: M5X0.5X4.1H

$1.49

$

In Stock, only 2 left!

0

290

Subaru Robin 011-00600-20

FLANGE BOLT

Note: M6X1.0X14DX12L

$2.49

$

In Stock, only 2 left!

0

310

Subaru Robin 20B-30101-J2

Muffler UN

$295.99

$

Usually ships in 2-12 days

0

320

23D-34201-01

Muffler Cover CP

$

$

Not available

340

Subaru Robin 20B-35201-13

GASKET(MUFFLER)

Note: T=0.2

$3.49

$

In Stock, only 1 left!

0

350

Subaru Robin 002-38080-00

FLANGE NUT

Note: M8X1.25X17DX7.5H

$1.99

$

In Stock, only 4 left!

0

360

Subaru Robin 011-00600-10

FLANGE BOLT

Note: M6X1.0X14DX8L

$2.49

$

In Stock, Qty 8

0

365

Subaru Robin 011-00803-20

FLANGE BOLT

Note: M8X1.25X16DX12L

$1.49

$

In Stock, only 1 left!

0

385

Subaru Robin 267-37101-12

TAIL SCREEN UN

$10.99

$

Usually ships in 2-12 days

0

387

Subaru Robin 015-00400-60

TAPPING SCREW

Note: M4X6L

$

$

Not available

538

Subaru Robin 20B-35903-13

GASKT 3

Note: T=0.5

$

$

Not available

540

Subaru Robin 20B-32901-K1

INSULATOR CP

$42.99

$

Usually ships in 2-12 days

0

550

Subaru Robin 20B-35902-H3

GASKET 2

Note: T=0.5

$5.99

$

Usually ships in 2-12 days

0

560

Subaru Robin 20B-35901-H3

GASKET 1

Note: T=0.5

$5.99

$

Usually ships in 2-12 days

0

570

Subaru Robin 002-38060-00

FLANGE NUT

Note: M6X1.0X13DX6H

$1.99

$

In Stock, Qty 9

0
