Sx3100 (54AMB4SX727) - Cub Cadet Yanmar Sx Series Compact Tractor Center Case Parts Diagram

Sx Series Compact Tractor

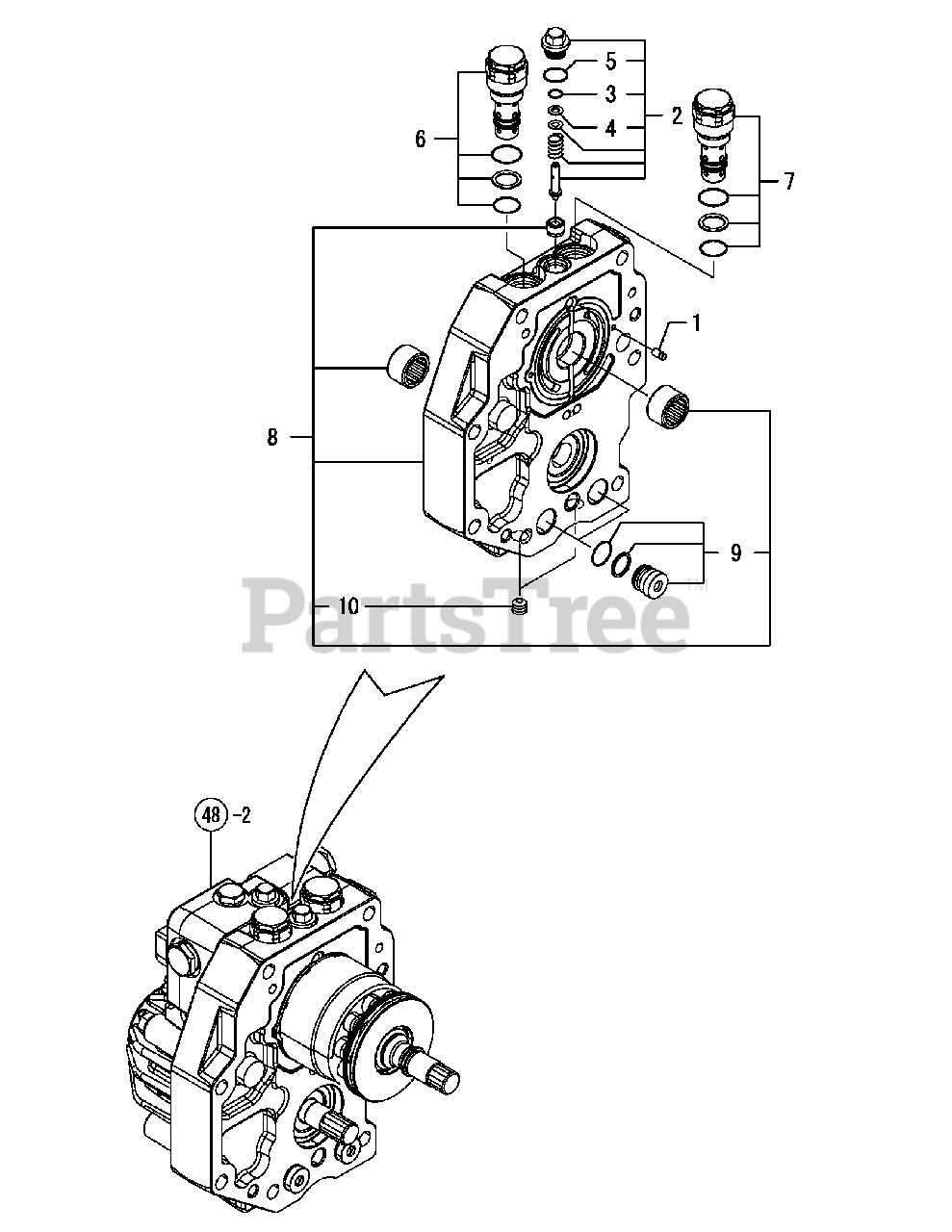

Center Case Parts Diagram

  • Title
1

Cub Cadet CY-192163-24420

Pin, Knock 3.5

$

$

Not available

2

Cub Cadet CY-198167-24710

Relief Comp., Imple

$

$

Not available

$

$

Not available

4

Cub Cadet CY-22137-050000

Washer 5, Polished

$

$

Not available

5

Cub Cadet CY-24311-000120

O-Ring 1A P-12.0

$

$

Not available

6

Cub Cadet CY-168HK1-29040

Cr Valve F Cmp

$

$

Not available

7

Cub Cadet CY-168HK1-29050

Cr Valve R Cmp

$

$

Not available

8

Cub Cadet CY-168HK1-29110

Case Assy, Center

$

$

Not available

9

Cub Cadet CY-1A6750-29510

Body Cmp, Suction

$

$

Not available

10

Cub Cadet CY-23871-010000

Plug Pt1/8,Screw

$

$

Not available

Note 48-2, Refers to HST, Ref No. 2

$

$

Not available
