Sx3100 (54AMB4S-727) - Cub Cadet Yanmar Sx Series Compact Tractor Hydraulic Line Parts Diagram

Sx Series Compact Tractor

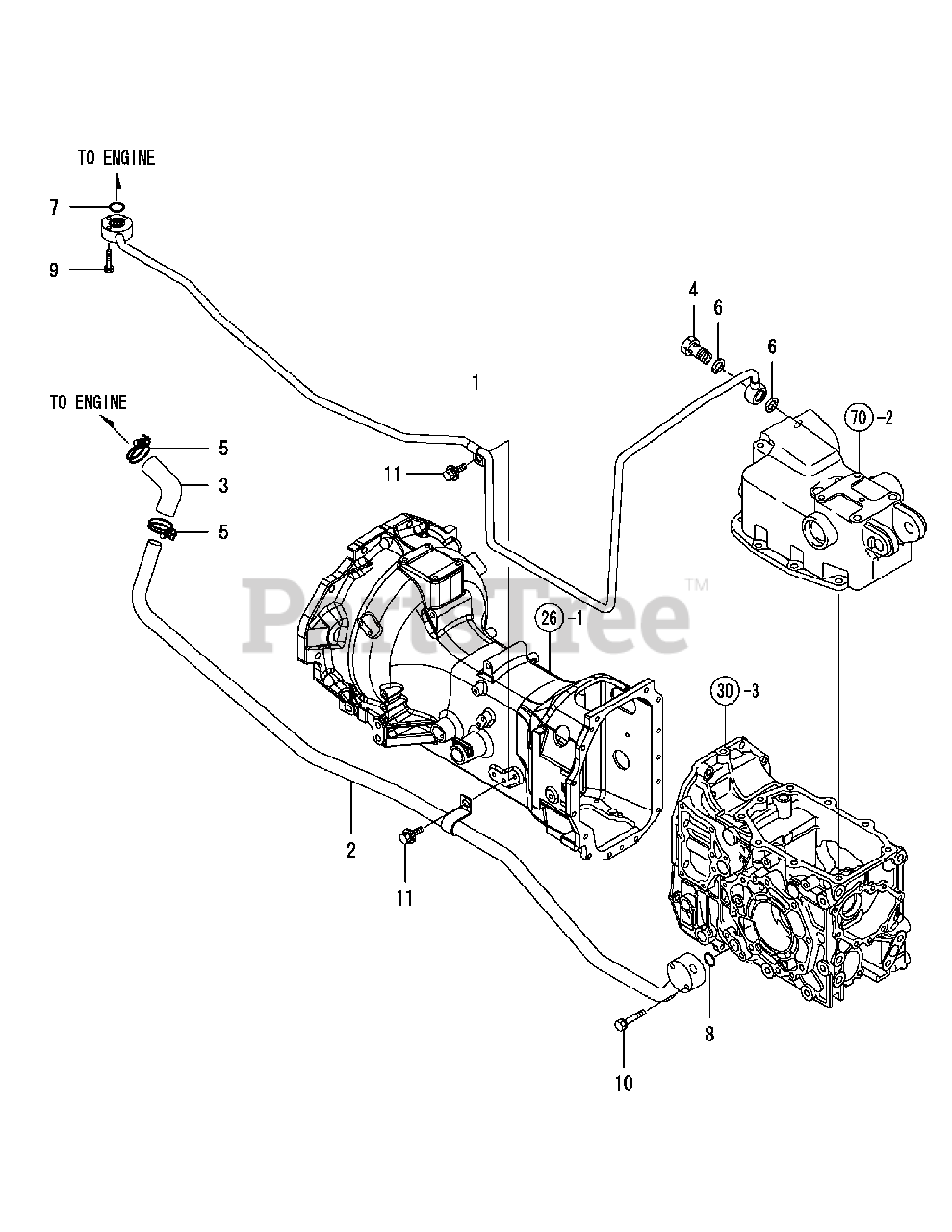

Hydraulic Line Parts Diagram

  • Title
1

Cub Cadet CY-1A7540-48110

Pipe, High Pressure

$

$

Not available

2

Cub Cadet CY-1A7530-48320

Pipe, Low Pressure

$

$

Not available

$

$

Not available

4

Cub Cadet CY-198220-48750

Connector Assy

$

$

Not available

$

$

Not available

$

$

Not available

7

Cub Cadet CY-24311-000200

O-Ring 1A P-20.0

$

$

Not available

8

Cub Cadet CY-24311-000220

O-Ring 1A P-22.0

$

$

Not available

9

$

$

Not available

10

$

$

Not available

11

$

$

Not available

Note 26-1, Refers to CLUTCH HOUSING, Ref No. 1

$

$

Not available

Note 30-3, Refers to TRANMISSION CASE, Ref No. 3

$

$

Not available

Note 70-2, Refers to HYDRAULIC LIFT, Ref No. 2

$

$

Not available
