Sx3100 (54ALB4SX727) - Cub Cadet Yanmar Sx Series Compact Tractor Differential Gear-2 Parts Diagram

Sx Series Compact Tractor

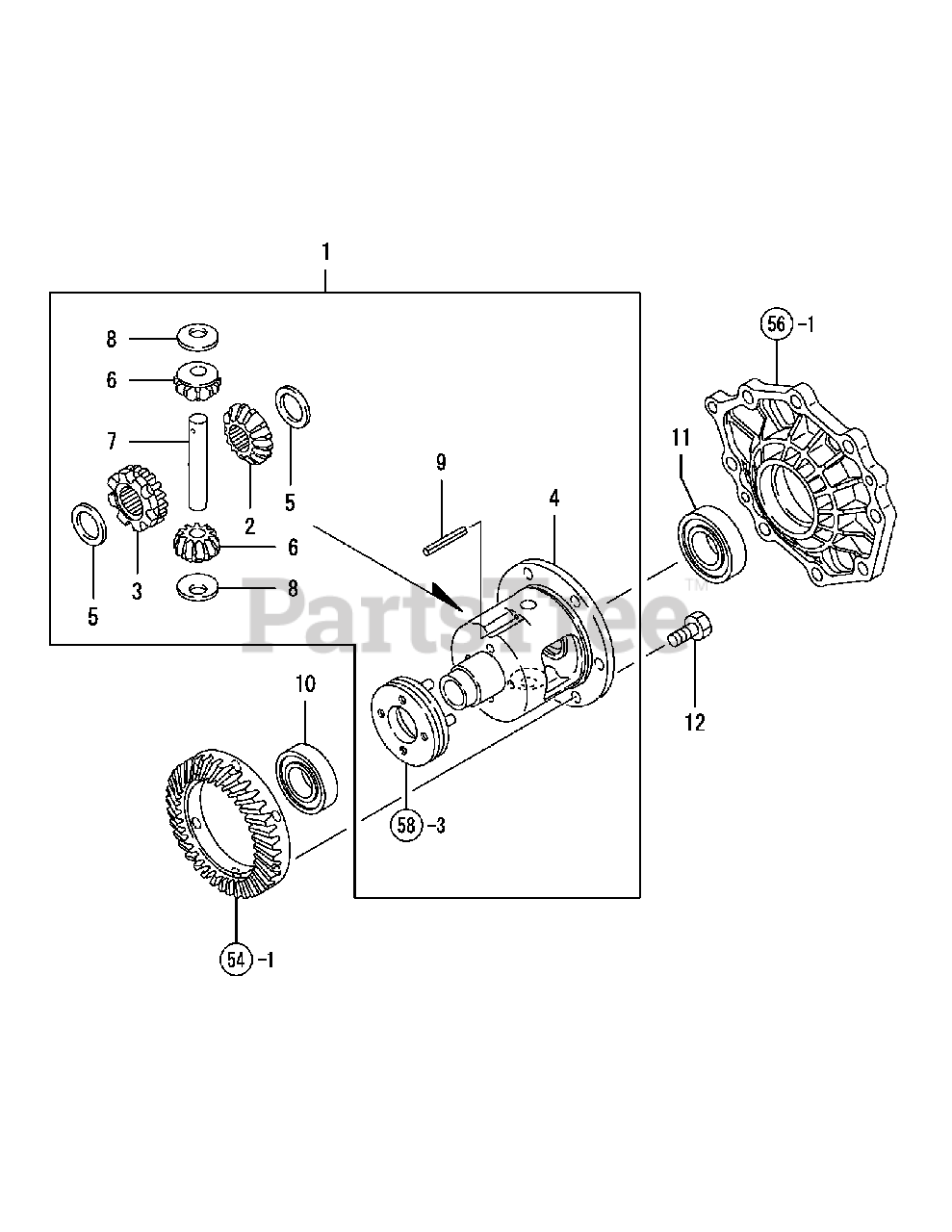

Differential Gear-2 Parts Diagram

  • Title

1

Cub Cadet CY-1A6780-31500

Case Assy,Diff

$

$

Not available

2

Cub Cadet CY-198421-31510

Gear, Diff.Side

$

$

Not available

3

Cub Cadet CY-1A6780-31520

Gear, Diff.Side (Lock

$

$

Not available

4

Cub Cadet CY-198421-31530

Case, Differential

$

$

Not available

5

Cub Cadet CY-198421-31550

Liner, Diff.Side Gear

$

$

Not available

6

Cub Cadet CY-194300-31560

Gear, Differential

$

$

Not available

7

Cub Cadet CY-194300-31570

Shaft, Differential

$

$

Not available

8

Cub Cadet CY-194300-31620

Washer, Differential

$

$

Not available

9

Cub Cadet CY-22351-040040

Spring Pin 4X40

$

$

Not available

10

Cub Cadet CY-24101-060064

Ball Bearing

$

$

Not available

11

Cub Cadet CY-24101-060074

Ball Bearing

$

$

Not available

12

Cub Cadet CY-26156-100162

Bolt M10X16

$

$

Not available

Note 54-1, Refers to RING GEAR, Ref No. 1

$

$

Not available

Note 56-1, Refers to DIFFERENTIAL CARRIER, Ref No. 1

$

$

Not available

Note 58-3, Refers to DIFFERENTIAL LOCK, Ref No. 3

$

$

Not available
