Sx3100 (54ALB4SW727) - Cub Cadet Yanmar Sx Series Compact Tractor Mid PTO Shaft Parts Diagram

Sx Series Compact Tractor

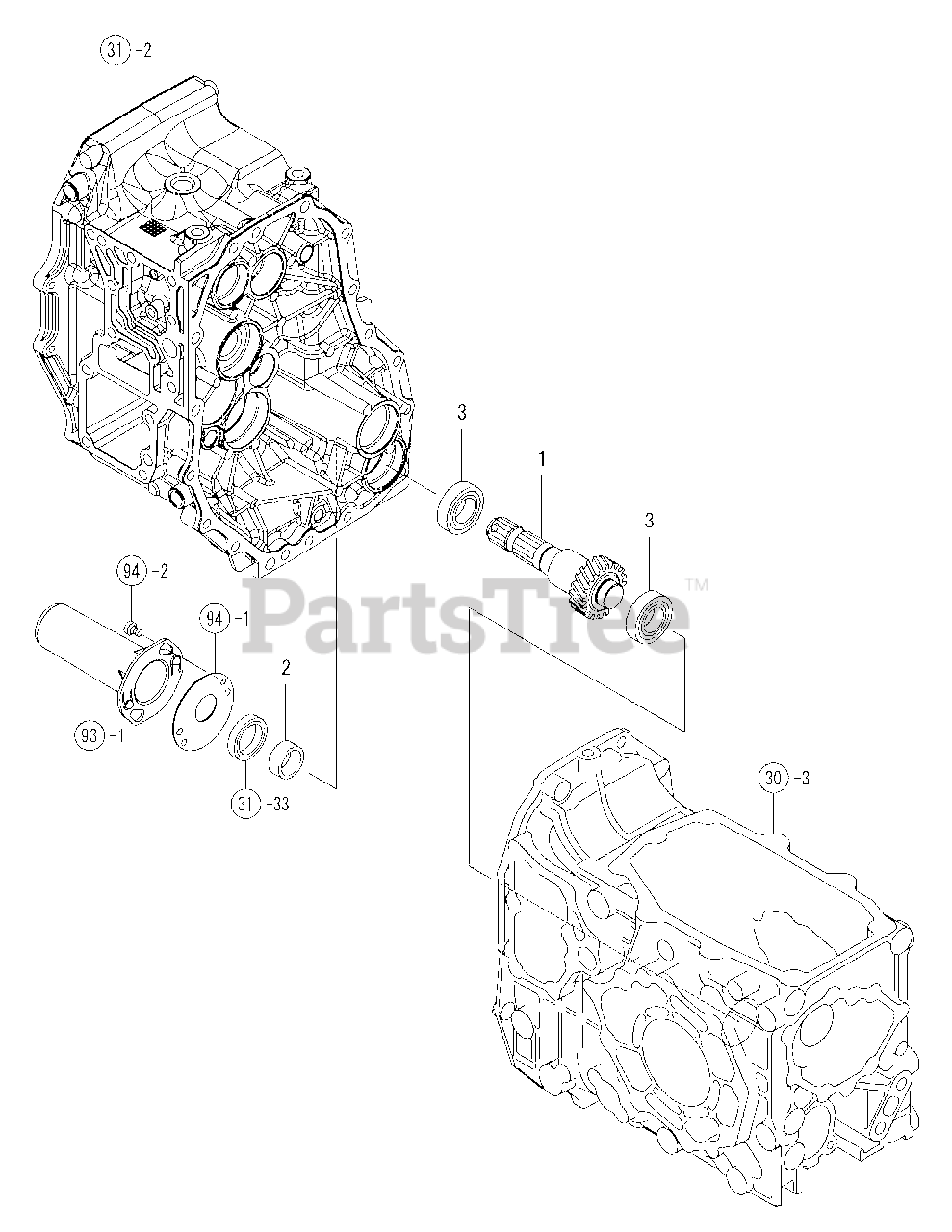

Mid PTO Shaft Parts Diagram

  • Title
1

Cub Cadet CY-1A7530-26400

Shaft, Mid PTO

$

$

Not available

2

Cub Cadet CY-1E6190-54080

Sleeve Si25X30X13

$

$

Not available

3

Cub Cadet CY-24101-060054

Ball Bearing 6005

$

$

Not available

Note 30-3, Refers to TRANMISSION CASE, Ref No. 3

$

$

Not available

Note 31-2, Refers to CENTER PLATE, Ref No. 2

$

$

Not available

Note 31-33, Refers to CENTER PLATE, Ref No. 33

$

$

Not available

Note 93-1, Refers to PTO SHAFT COVER, Ref No. 1

$

$

Not available

Note 94-1, Refers to OIL SEAL COVER, Ref No. 1

$

$

Not available

Note 94-2, Refers to OIL SEAL COVER, Ref No. 2

$

$

Not available
