Sx3100 (54ALB4S-727) - Cub Cadet Yanmar Sx Series Compact Tractor Hydraulic Lift Parts Diagram

Sx Series Compact Tractor

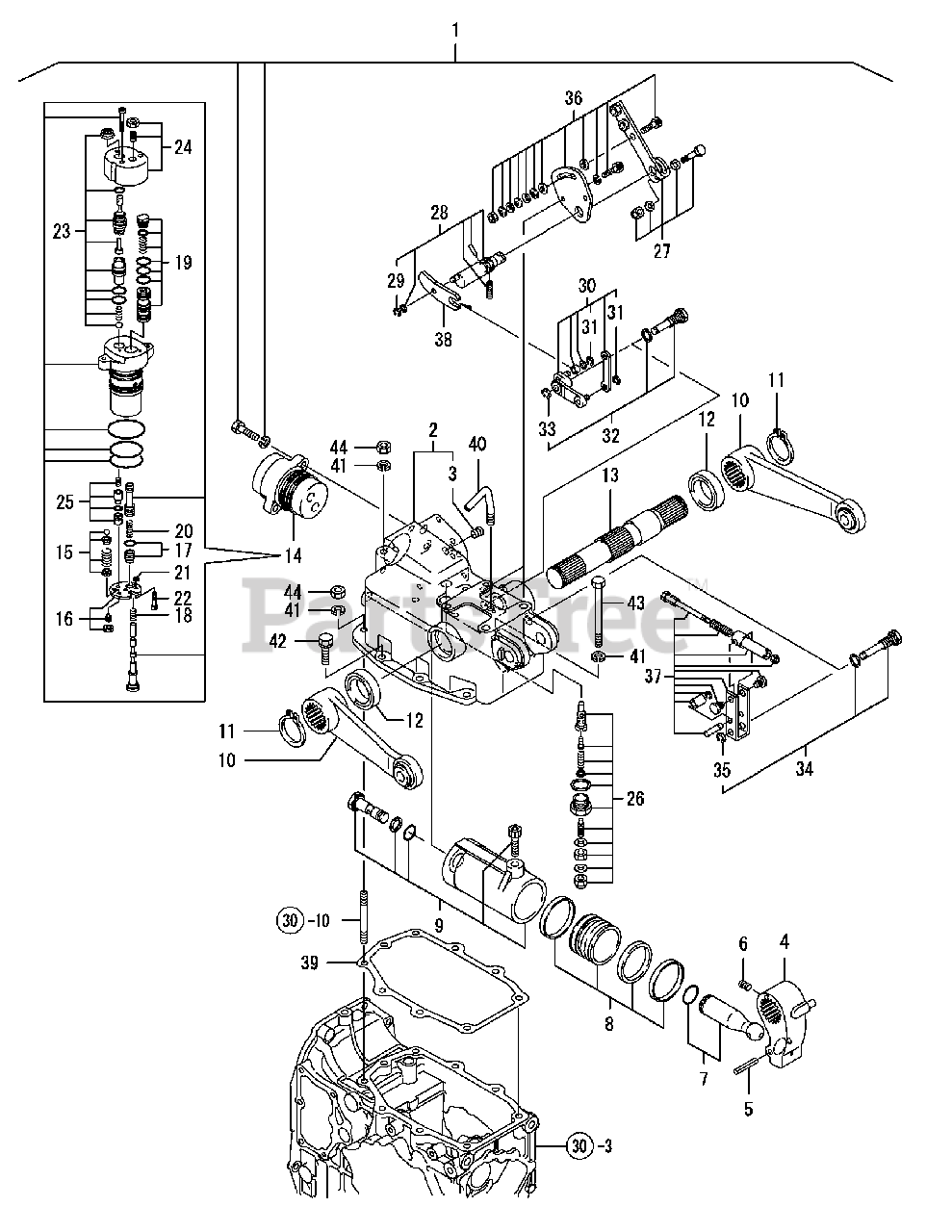

Hydraulic Lift Parts Diagram

  • Title

1

Cub Cadet CY-1A6780-42010

Rock Shaft Assy

$

$

Not available

2

Cub Cadet CY-198165-42100

Case, Hydraulic Cyl.

$

$

Not available

3

Cub Cadet CY-198165-42400

Plug M 10

$

$

Not available

4

Cub Cadet CY-1A6780-44110

Crank Cmp

$

$

Not available

5

Cub Cadet CY-22351-060040

Spring Pin 6X40

$

$

Not available

6

Cub Cadet CY-198165-44170

Plug M 8X 16

$

$

Not available

7

Cub Cadet CY-198165-44180

Piston Rod Comp

$

$

Not available

8

Cub Cadet CY-1A6780-44200

Piston Cmp

$

$

Not available

9

Cub Cadet CY-1A6780-44240

Cylinder Cmp

$

$

Not available

10

Cub Cadet CY-198165-44410

Arm, Cmp Lift

$

$

Not available

11

Cub Cadet CY-22242-000340

Circlip 34

$

$

Not available

12

Cub Cadet CY-198165-42450

Seal, 354507 Oil

$

$

Not available

13

Cub Cadet CY-1A6780-44460

Shaft

$

$

Not available

14

Cub Cadet CY-198165-45101

Valve Assy, Control

$

$

Not available

15

Cub Cadet CY-198165-45010

Valve Kit

$

$

Not available

16

Cub Cadet CY-198165-45020

Plate Kit

$

$

Not available

17

Cub Cadet CY-198165-45030

Plug Kit

$

$

Not available

18

Cub Cadet CY-198165-45140

Spring, Pilot

$

$

Not available

19

Cub Cadet CY-198165-45191

Valve Assy

$

$

Not available

20

Cub Cadet CY-198165-45270

Spring

$

$

Not available

21

Cub Cadet CY-198165-45290

Spacer

$

$

Not available

22

Cub Cadet CY-198165-45370

Bolt M 6X 18

$

$

Not available

23

Cub Cadet CY-198165-45400

Lever, Cmp Slowreturn

$

$

Not available

24

Cub Cadet CY-198165-45500

Cover Kit

$

$

Not available

25

Cub Cadet CY-198165-45600

Valve Kit

$

$

Not available

26

Cub Cadet CY-198165-45800

Valve, Assy Relief

$

$

Not available

27

Cub Cadet CY-198165-47020

Lever Kit

$

$

Not available

28

Cub Cadet CY-198165-47030

Shaft Kit

$

$

Not available

29

Cub Cadet CY-198165-47520

Circlip 6

$

$

Not available

30

Cub Cadet CY-198165-47040

Arm Kit

$

$

Not available

31

Cub Cadet CY-198165-47520

Circlip 6

$

$

Not available

32

Cub Cadet CY-1A6780-47050

Kit, Pin A

$

$

Not available

33

Cub Cadet CY-198165-47530

Circlip 7

$

$

Not available

34

Cub Cadet CY-198165-47060

Pin B Kit

$

$

Not available

35

Cub Cadet CY-198165-47530

Circlip 7

$

$

Not available

36

Cub Cadet CY-198165-47100

Lever, Assy Hydraulic

$

$

Not available

37

Cub Cadet CY-198165-47300

Control, Assy Hyd.

$

$

Not available

38

Cub Cadet CY-198165-47440

Lever, B

$

$

Not available

39

Cub Cadet CY-198165-42120

Packing, Cylinder

$

$

Not available

40

Cub Cadet CY-194205-42280

Pipe, Air Breather

$

$

Not available

41

Cub Cadet CY-22217-100000

Spring Washer 10

$

$

Not available

42

Cub Cadet CY-26013-100252

Bolt M10X 30

$

$

Not available

43

Cub Cadet CY-26116-101202

Bolt M10X120 Plated

$

$

Not available

44

Cub Cadet CY-26716-100002

Nut 10

$

$

Not available

Note 30-3, Refers to TRANMISSION CASE, Ref No. 3

$

$

Not available

Note 30-10, Refers to TRANMISSION CASE, Ref No. 10

$

$

Not available
