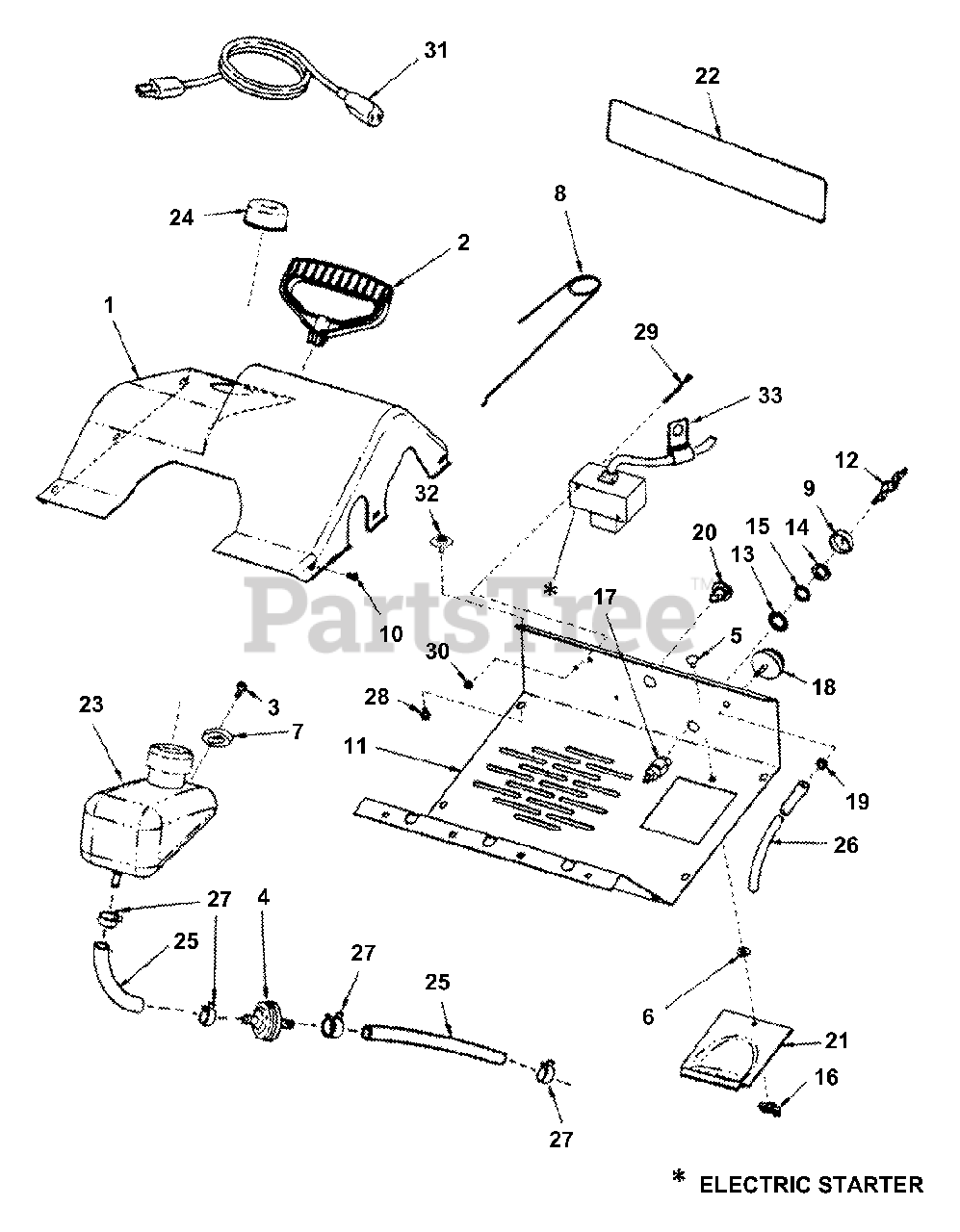

SX 5200R (7084562) - Snapper 20" Snow Thrower, 5hp Control Panel, Fuel Tank Parts Diagram

20" Snow Thrower, 5hp

Control Panel, Fuel Tank Parts Diagram

  • Title

1

Snapper 7041955

COVER, Top

$

$

Not available

2

Snapper 7041954

HANDLE, Rope Starter (Mitten) (Tecumseh # 178-223)
(Superseded to 7041954SM)

$9.99

$

In Stock, only 1 left!

0

3

Snapper 7091246

SCREW, 1/4-20 x 3/4" Self-Tapping (Torx)
(Superseded to 7091246YP)

$3.99

$

In Stock, Qty 20+

0

4

Snapper 7014359

FILTER, Fuel (In-Line)
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

5

Snapper 7091530

BOLT, 1/4-20 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 7091530SM)

$3.99

$

In Stock, only 3 left!

0

6

Snapper 7012485

RETAINER, 1/4" Bolt
(Superseded to 7012485YP)

$3.49

$

In Stock, Qty 20+

0

7

Snapper 7027910

ISOLATOR, Fuel Tank/Cover
(Superseded to 7027910SM)

$4.49

$

Usually ships in 2-12 days

0

8

Snapper 7046473

CONTROL, Choke
(Superseded to 7046473YP)

Note: Was 14918

$22.99

$

Usually ships in 2-12 days

0

Snapper 7046473

CONTROL, Choke SX5200
(Superseded to 7046473YP)

$22.99

$

Usually ships in 2-12 days

0

9

Snapper 7023506

BEZEL
(Superseded to 7023506SM)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7091286

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Sems)
(Superseded to 7091286YP)

$4.99

$

In Stock, Qty 12

0

11

Snapper 7041852

PANEL, Bottom
(Superseded to 7041852YP)

$93.99

$

Usually ships in 2-12 days

0

12

Snapper 7011138

KEY, Ignition
(Superseded to 7011138YP)

$7.49

$

In Stock, Qty 7

0

13

Snapper 7091546

WASHER, 5/8" Internal Tooth Lock
(Superseded to 1960547SM)

Note: Was 90880

$4.49

$

In Stock, only 4 left!

0

14

Snapper 7012685

NUT, 5/8-32 Hex (Special)
(Superseded to 7012685YP)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 7016132

SPACER
(Superseded to 7016132SM)

$3.99

$

Usually ships in 2-12 days

0

16

Snapper 7029161

NUT, 1/4-20 Wing (Black Nylon)
(Superseded to 7029161YP)

$2.99

$

In Stock, only 4 left!

0

17

Snapper 7017817

SWITCH, Ignition
(Superseded to 7017817YP)

Note: (Includes items 13 & 14)

$31.99

$

In Stock, only 1 left!

0

18

Snapper 7014638

PRIMER, Fuel
(Superseded to 7014638SM)

$

$

Not available

19

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 91065

$4.49

$

In Stock, Qty 6

0

20

Snapper 7014924

GUIDE, Rope
(Superseded to 7014924YP)

$4.99

$

Usually ships in 2-12 days

0

21

Snapper 7041956

COVER, Carburetor
(Superseded to 7041956YP)

$12.99

$

Usually ships in 2-12 days

0

22

Snapper 7041959

DECAL, Control Panel

$

$

Not available

23

Snapper 7024603

TANK, Fuel
(Superseded to 7052974SM)

Note: (Includes Cap, Item 24)

$152.99

$

Usually ships in 2-12 days

0

24

Snapper 7024495

CAP, Fuel Tank
(Superseded to 7024495SM)

$10.99

$

Usually ships in 2-12 days

0

25

Snapper 7076272

LINE, Fuel
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

26

Snapper 7014639

HOSE, Primer
(Superseded to 7014639SM)

$7.99

$

Usually ships in 2-12 days

0

27

Snapper 7029900

CLAMP, Fuel Line
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

28

Snapper 7091084

SCREW, 1/4-20 x 3/8" Hex Washer Self-Tap
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

29

Snapper 7091572

SCREW, #6-32 x 2-1/2" Hex Head Cap (Electric Start only)
(Superseded to 7091572YP)

$2.99

$

Usually ships in 2-12 days

0

30

Snapper 7091570

NUT, #6-32 Hex (Keps) (Electric Start only)
(Superseded to 7091570YP)

$2.99

$

Usually ships in 2-12 days

0

31

Snapper 7029747

CORD, Extension (10 Ft.)(Electric Start only) (Tecumseh # 1A174-17 or 32450B)
(Superseded to 7015368YP)

$26.99

$

Usually ships in 2-12 days

0

32

Snapper 7091286

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Sems)
(Superseded to 7091286YP)

$4.99

$

In Stock, Qty 12

0

33

Snapper 7012652

WIRE CLAMP, Vinyl Covered
(Superseded to 7012652YP)

$3.99

$

Usually ships in 2-12 days

0
