SX 5200E (7084563) - Snapper 20" Snow Thrower, 5hp Engine Parts Diagram

20" Snow Thrower, 5hp

Engine Parts Diagram

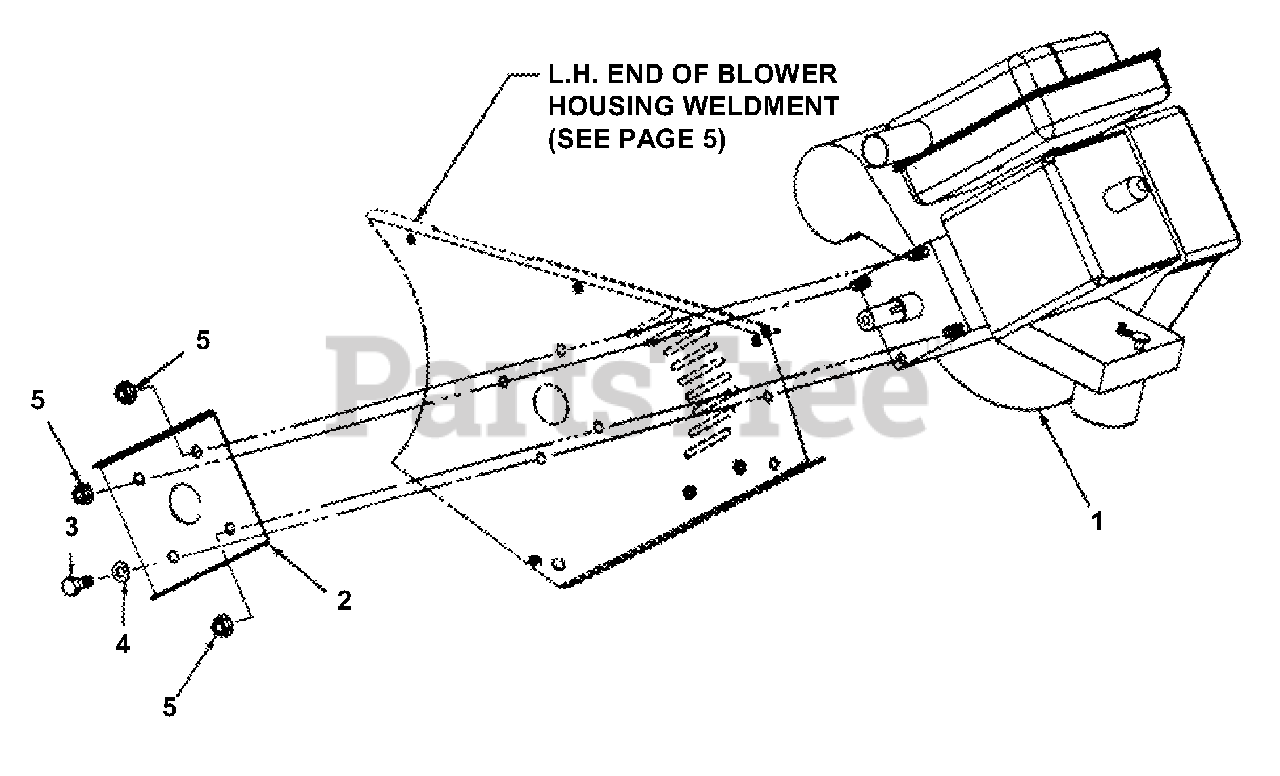

  • Title
1

ENGINE, Tecumseh; Model HSK850-8318C, 5HP, 2-Cycle (Electric Start)

$

$

Not available

ENGINE, Tecumseh; Model HSK850-8317C, 5HP, 2-Cycle (Recoil Start)

$

$

Not available

2

Snapper 7041951

PLATE, Stiffener

$

$

Not available

3

Snapper 7091021

SCREW, 5/16-24 x 3/4" Hex Head Cap, Grade 5
(Superseded to 703336)

$4.49

$

In Stock, Qty 5

0

4

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0
