SX 135 C (UT-20667) - Homelite String Trimmer Engine Internal Parts Diagram

String Trimmer

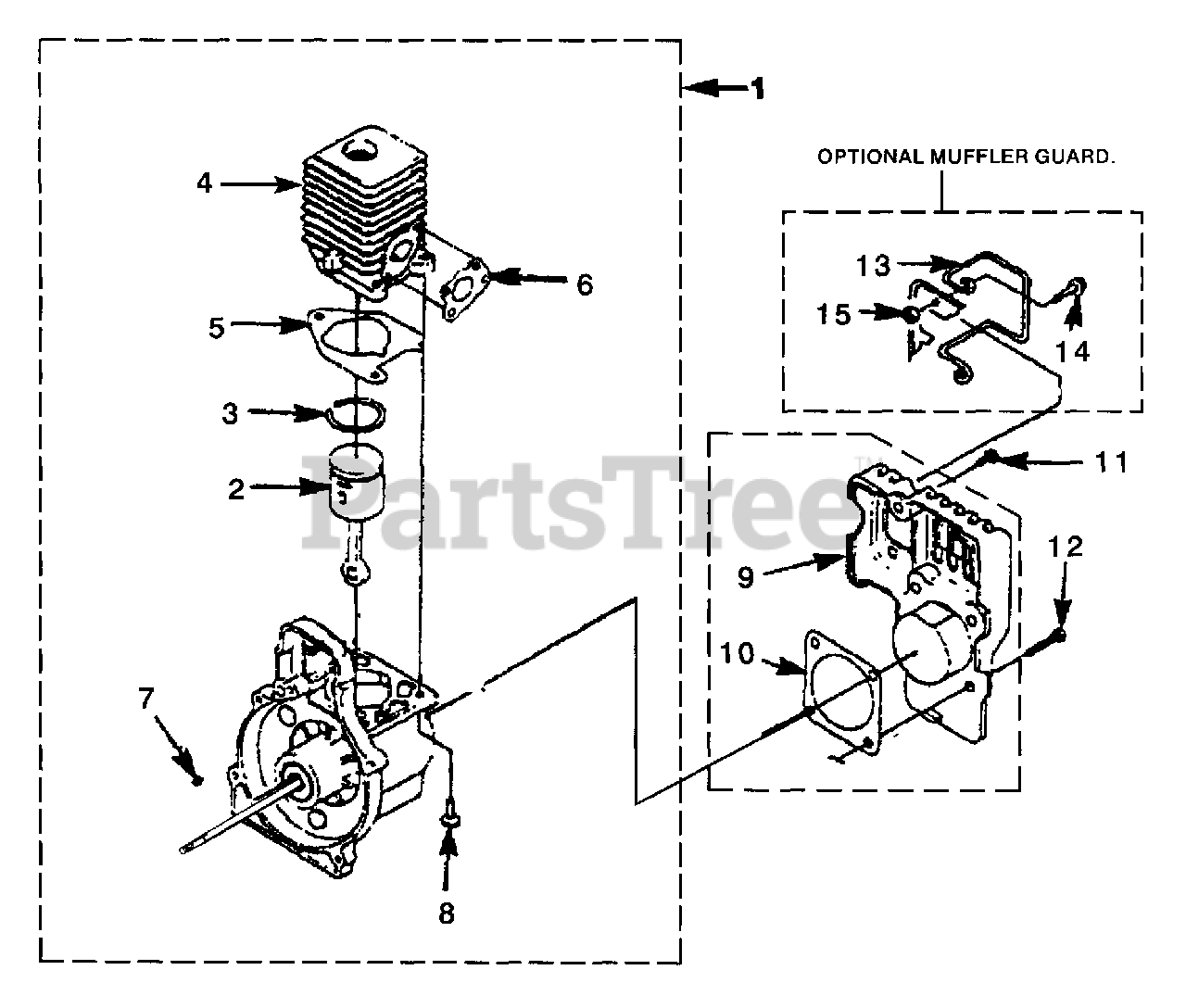

Engine Internal Parts Diagram

  • Title

1

Homelite A09055

SHORT BLOCK
(Superseded to UP03117)

$

$

Not available

2

Homelite A07314

25CC PISTON & ROD
(Superseded to UP00768A)

$

$

Not available

3

Homelite 96935

RING - Piston
(Superseded to UP03838)

$

$

Not available

4

Homelite A07145B

25CC CYLINDER KIT
(Superseded to UP07145)

$74.99

$

In Stock, only 1 left!

0

5

Homelite 04388B

GASKET - Cylinder
(Superseded to 985259001)

$

$

Not available

6

Homelite 08840

GASKET - Heat Dam

$

$

Not available

7

Homelite 69250

KEY - Woodruff

$

$

Not available

8

Homelite 825691

SCREW - Thread Forming (10-24 X 3/4")

Note: Torque Specs. 55-65 In/Lbs, 6.2-7.3 Nm; 262 Red Required Locktite

$

$

Not available

9

Homelite A00858

CRANKCASE COVER

$14.99

$

Usually ships in 3-7 days

0

10

Homelite 98767A

GASKET - Crankcase Cover

$

$

Not available

11

Homelite 82541

SCREW - Plastite (#10 X 1/2")

Note: Torque Specs. 30-40 In/Lbs, 3.4-4.5 Nm

$1.99

$

In Stock, only 3 left!

0

12

Homelite 82538

SCREW - Taptite (10-24 X 1/2")

Note: Torque Specs. 25-30 In/Lbs, 2.8-3.4 Nm; 262 Red Required Locktite

$1.99

$

Usually ships in 3-7 days

0

13

Homelite A00254A

WIRE GUARD KIT

$

$

Not available

14

Homelite 88049

SCREW - Hex Sems (10-24 X 1/2")

Note: Torque Specs. 40-50 In/Lbs, 4.5-5.6 Nm

$

$

Not available

15

Homelite 81208

NUT (10-24)

$

$

Not available
