SWZV52V-19KAI - Scag Pro-V 52" Walk-Behind Mower, 19hp Kawasaki (SN: D4200001 - D4299999) Hydraulic And Lower Brake Assembly Parts Diagram

Pro-V 52" Walk-Behind Mower, 19hp Kawasaki

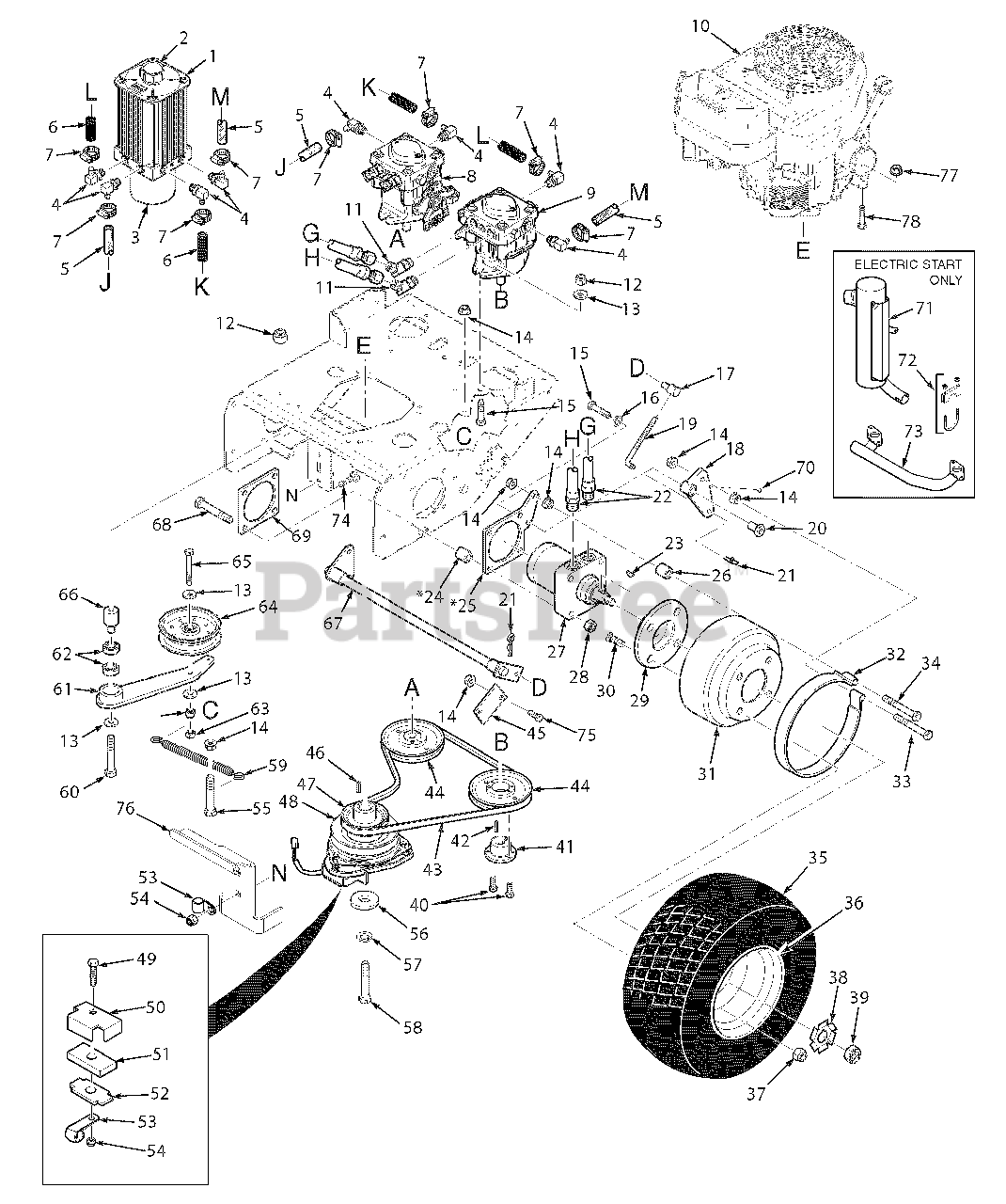

Hydraulic And Lower Brake Assembly Parts Diagram

  • Title

1

Scag 462056

Oil Reservoir Assembly

$431.99

$

Usually ships in 2-12 days

0

2

Scag 483094

Cap, Oil Reservoir

$21.99

$

Usually ships in 2-12 days

0

3

Scag 48462-01

Oil Filter

$26.99

$

In Stock, Qty 20+

0

4

Scag 482266-01

Elbow, 90Degree O-Ring 9/16-18 x 3/8" Hose

$32.99

$

Usually ships in 2-12 days

0

5

Scag 483146

Hose, 3/8 Push Lock - Gray

Note: (Order by Inch)

$0.99

$

Usually ships in 2-12 days

0

6

Scag 48811

Hose, 3/8 Push Lock -Black

Note: (Order by Inch)

$0.99

$

In Stock, Qty 20+

0

7

Scag 48136-13

Clamp, Hose .69" Max. Dia.

$7.49

$

In Stock, Qty 20+

0

8

Scag 483591

Pump, RH SWZV

Note: (PG-1HQQ-DC1X-XXXX)

$1574.99

$

Usually ships in 2-12 days

0

9

Scag 483590

Pump, LH SWZV

Note: (PG-1KQQ-DF1X-XXXX)

$1574.99

$

Usually ships in 2-12 days

0

10

Scag 482928

Engine, 19hp Kawasaki FH580V

$

$

Currently unavailable

11

Scag 48485-01

Elbow, 45 Degree

$23.99

$

Usually ships in 2-12 days

0

12

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

13

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105 HD

$0.99

$

In Stock, Qty 20+

0

14

Scag 04019-04

N ut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

15

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

16

Scag 04030-03

Lockwasher, 3/8"

$0.99

$

In Stock, Qty 20+

0

17

Scag 43032

Swivel Joint

$6.49

$

In Stock, Qty 8

0

18

Scag 451941

Brake Actuator Weldment, LH

$29.99

$

Usually ships in 2-12 days

0

Scag 451947

Brake Actuator Weldment, RH

$29.99

$

Usually ships in 2-12 days

0

19

Scag 44170

Rod, Brake Lower

$32.99

$

Usually ships in 2-12 days

0

20

Scag 43415

B ushing, Brake

$7.99

$

Usually ships in 2-12 days

0

21

Scag 04062-01

Hair Pin Cotter, .094 x 1.62"

$0.99

$

In Stock, Qty 20+

0

22

Scag 481265

Hose Assembly

$68.99

$

Usually ships in 2-12 days

0

23

Scag 04063-07

Key, 3/16 x 3/4" Woodruff

$0.99

$

In Stock, Qty 12

0

24

Scag 43391

Spacer

$8.99

$

Usually ships in 2-12 days

0

25

Scag 424644

Brake Plate

Note: (52) Used Only on Machines Equipped with a 52" Cutter Deck

$35.99

$

Usually ships in 2-12 days

0

26

Scag 43674

Spacer

Note: (52) Used Only on Machines Equipped with a 52" Cutter Deck

$2.49

$

In Stock, only 2 left!

0

27

Scag 483388

Wheel Motor

$701.99

$

Usually ships in 2-12 days

0

28

Scag 04021-19

Nut, Center Lock 1/2-13

$0.99

$

In Stock, Qty 10

0

29

Scag 46928

Wheel Hub Assembly

Note: (Incl. #30)

$136.99

$

Usually ships in 2-12 days

0

30

Scag 04008-01

Bolt, Serrated 1/2-20

$3.99

$

In Stock, Qty 20+

0

31

Scag 422215

Brake Drum

$30.99

$

Usually ships in 2-12 days

0

32

Scag 481470

Brake Band Assembly

$55.99

$

Usually ships in 2-12 days

0

33

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4’

$0.99

$

In Stock, Qty 20+

0

34

Scag 04001-62

Bolt, Hex Head 3/8-16 x 3-1/4"

$1.49

$

In Stock, Qty 15

0

35

Scag 481867

Wheel Assembly, 18 x 8.5-8

Note: (48 & 52)

$326.99

$

Usually ships in 2-12 days

0

36

Scag 481868

Rim w/Valve Stem

Note: (48 & 52)

$189.99

$

Usually ships in 2-12 days

0

36

Scag 481869

Tire, 18 x 8.5-8

Note: (48 & 52)

$221.99

$

Usually ships in 2-12 days

0

37

Scag 04028-02

L ug Nut

$1.99

$

In Stock, Qty 20+

0

38

Scag 422214

Lockwasher, Wheel Motor

$4.49

$

In Stock, only 1 left!

0

39

Scag 48679

Hex Castle Nut, 3/4-28 UNEF

$27.99

$

Usually ships in 2-12 days

0

40

Scag 04001-172

Bolt, Hex Head 1/4-20 x 1" Grade 8

$0.99

$

In Stock, Qty 20+

0

41

Scag 482085

Tapered Hub

$28.99

$

In Stock, only 1 left!

0

42

Scag 04063-14

Key, 5.0 x 5.0 x 25mm

$0.99

$

In Stock, Qty 5

0

43

Scag 483520

Belt, Pump Drive

$24.99

$

In Stock, Qty 20+

0

44

Scag 482649

Pulley, 5.45 O.D. Tapered Bore

$49.99

$

In Stock, only 1 left!

0

45

Scag 424810

Plate, Brake Keeper

$9.49

$

Usually ships in 2-12 days

0

46

Scag 04063-29

Key, 1/4 x 1/4 x 3-3/4"

$1.99

$

In Stock, only 3 left!

0

47

Scag 483598

Pulley, 4.0 O.D. - 1" Bore

$60.99

$

In Stock, only 1 left!

0

48

Scag 462108

Clutch Assembly

$381.99

$

Usually ships in 2-12 days

0

49

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

50

Scag 424421

R e t a i n e r , C l utch Pad

$86.99

$

Usually ships in 2-12 days

0

51

Scag 483289

Rubber Pad

$13.99

$

Usually ships in 2-12 days

0

52

Scag 424422

Plate, Backing

$14.99

$

Usually ships in 2-12 days

0

53

Scag 48030-09

Clamp, Cable

$1.49

$

In Stock, Qty 6

0

54

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

55

Scag 04001-138

Bolt, Hex Head 3/8-16 x 3-3/4" Grade 8

$1.49

$

In Stock, Qty 5

0

56

Scag 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25

$2.99

$

In Stock, Qty 13

0

57

Scag 04030-05

Lockwasher, 7/16" Spring

$0.99

$

In Stock, Qty 8

0

58

Scag 04102-05

Bolt, Hex Head 7/16-20 x 2-3/4" w/Patch

$2.49

$

In Stock, only 1 left!

0

59

Scag 483526

Spring, Transmission Idler

$25.99

$

In Stock, only 3 left!

0

60

Scag 04001-62

Bolt, Hex Head 3/8-16 x 3-1/4"

$1.49

$

In Stock, Qty 15

0

61

Scag 462109

Idler Arm Assembly

$76.99

$

Usually ships in 2-12 days

0

62

Scag 48224

Bearing

$13.99

$

In Stock, Qty 20+

0

63

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

0

64

Scag 483213

Pulley, 4-1/2" Idler

$53.99

$

In Stock, only 1 left!

0

65

Scag 04001-161

Bolt, Hex Head 3/8-16 x 2-3/4"

$3.99

$

In Stock, only 3 left!

0

66

Scag 43734

Pivot, Idler

$35.99

$

In Stock, only 1 left!

0

67

Scag 451939

Brake Bellcrank Weldment

$268.99

$

Usually ships in 2-12 days

0

68

Scag 04001-163

Bolt, Hex Head 1/2-13 x 3-3/4"

Note: (52) Used Only on Machines Equipped with a 52" Cutter Deck

$3.49

$

In Stock, Qty 14

0

69

Scag 424600

Plate, Wheel Motor

$

$

Currently unavailable

70

Scag 48114-05

Grease Fitting

$1.49

$

In Stock, Qty 9

0

71

Scag 483134

Muffler

Note: Electric Start Model Only

$

$

Not available

72

48xxxx

Clamp

Note: Electric Start Model Only

$

$

Not available

73

Scag 483733

Exhuast Manifold

Note: Electric Start Model Only

$187.99

$

Usually ships in 2-12 days

0

74

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

75

Scag 04017-26

Bolt, Serrated Flange 3/8-16 x 3/4"

$1.49

$

Usually ships in 2-12 days

0

76

Scag 424709

Plate, Clutch Bracket

$20.99

$

Usually ships in 2-12 days

0

77

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

78

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2"

$0.99

$

In Stock, Qty 6

0
