SWZV52V-19KAI - Scag Pro-V 52" Walk-Behind Mower, 19hp Kawasaki (SN: D4200001 - D4299999) Electrical System And Upper Brake Assembly Electric Start Parts Diagram

Pro-V 52" Walk-Behind Mower, 19hp Kawasaki

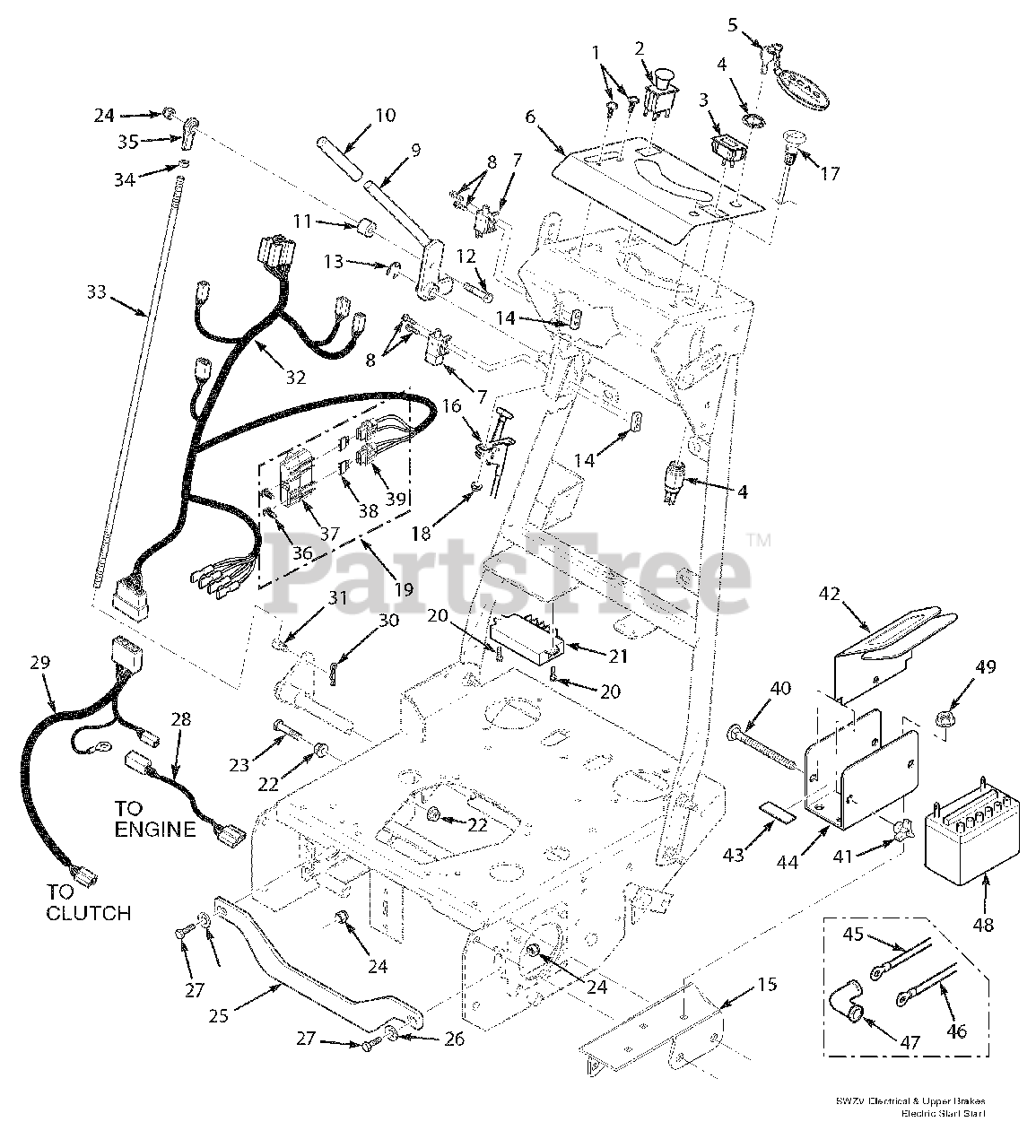

Electrical System And Upper Brake Assembly Electric Start Parts Diagram

  • Title

1

Scag 04010-01

Screw, Phillips #10-32 x 1/2"

$0.99

$

In Stock, Qty 20+

0

2

Scag 483162

Switch, PTO
(Superseded to 483957)

$37.99

$

In Stock, Qty 20+

0

3

Scag 483537

Hour Meter
(Superseded to 484565)

$51.99

$

In Stock, only 1 left!

0

4

Scag 48798

Key Switch

$27.99

$

In Stock, Qty 20+

0

5

Scag 462069

Key Fob w/Keys

$8.49

$

In Stock, Qty 20+

0

Scag 483609

Hooded Key

$2.99

$

In Stock, Qty 9

0

6

Scag 483608

Decal, Control Panel
(Superseded to 483778)

$15.99

$

Usually ships in 2-12 days

0

7

Scag 481545

Switch, Interlock

$16.99

$

In Stock, only 2 left!

0

8

Scag 04010-12

Screw, Hex Head #10-32 x 3/4"

$0.99

$

In Stock, only 1 left!

0

9

Scag 462115

Lever, Brake

$

$

Not available

10

Scag 48342

Grip, Brake

$2.49

$

Usually ships in 2-12 days

0

11

Scag 43286

Spacer

$2.49

$

In Stock, only 2 left!

0

12

Scag 04001-45

Bolt, Hex Head 3/8-16 x 2"

$0.99

$

In Stock, Qty 8

0

13

Scag 04050-01

Retaining Ring

$0.99

$

In Stock, Qty 20+

0

14

Scag 422373

Plate, Threaded

$11.99

$

Usually ships in 2-12 days

0

15

Scag 451961

Battery Support Weldment

$95.99

$

Usually ships in 2-12 days

0

16

Scag 483610

Throttle Control

$32.99

$

Usually ships in 2-12 days

0

17

Scag 483552

Choke Control

$29.99

$

In Stock, only 1 left!

0

18

Scag 04019-01

Nut, Serrated Flange #10-32

$0.99

$

Usually ships in 2-12 days

0

19

Scag 483629

Fuse Holder Assembly

$7.49

$

In Stock, Qty 7

0

20

Scag 04001-11

Screw, Self Tapping

$0.99

$

In Stock, Qty 6

0

21

Scag 483720

M o d ule, Magura Senso Grip
(Superseded to 462461)

$158.99

$

Usually ships in 2-12 days

0

22

Scag 04019-04

N ut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

23

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2’

$0.99

$

In Stock, Qty 20+

0

24

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

25

Scag 424604

Stiffener, SWZV

$

$

Currently unavailable

26

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105 HD

$0.99

$

In Stock, Qty 20+

0

27

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4’

$0.99

$

In Stock, Qty 12

0

29

Scag 483605

Wire Harness, Engine Deck Electric Start

$90.99

$

In Stock, only 1 left!

0

30

Scag 04062-01

Hair Pin Cotter, .094 x 1.62"

$0.99

$

In Stock, Qty 20+

0

31

Scag 43032

Swivel Joint

$6.49

$

In Stock, Qty 7

0

32

Scag 483603

Wire Harness, Handle Bar Electric Start

$197.99

$

Usually ships in 2-12 days

0

33

Scag 44168

Rod, Brake Lever

$7.99

$

Usually ships in 2-12 days

0

34

Scag 04020-25

Nut, 3/8-24 UNF Jam

$0.99

$

In Stock, only 2 left!

0

35

Scag 483339

Rod End, 3/8-24 RH

$19.99

$

Usually ships in 2-12 days

0

36

Scag 482588

Clip, Wire

$1.99

$

Usually ships in 2-12 days

0

37

Scag 483571

Cover, Sealed Double

$1.99

$

Usually ships in 2-12 days

0

38

Scag 48298

Fuse, 20 Amp

$3.99

$

Usually ships in 2-12 days

0

39

Scag 483629

Fuse Holder

$7.49

$

In Stock, Qty 7

0

40

Scag 04003-01

Bolt, Carriage 1/4-20 x 6"
(Superseded to 04003-39)

$1.49

$

In Stock, Qty 10

0

41

Scag 04229-01

Wing Nut, 1/4-20 Plastic

$

$

Currently unavailable

42

Scag 42392

Battery Box Cover

$45.99

$

Usually ships in 2-12 days

0

Scag 48099

Pad

$5.99

$

Usually ships in 2-12 days

0

43

Scag 48661

Pad, Rubber

$4.99

$

Usually ships in 2-12 days

0

44

Scag 423308

Battery Box

$52.99

$

In Stock, only 1 left!

0

45

Scag 48029-12

Cable, Battery - Red

$17.99

$

In Stock, only 2 left!

0

46

Scag 48029-15

Cable, Battery - Black

$17.99

$

In Stock, only 1 left!

0

47

Scag 48126

Rubber Boot

$8.49

$

Usually ships in 2-12 days

0

48

Scag 483665

Battery

Note: (not available through Scag)

$

$

Not available

49

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0
