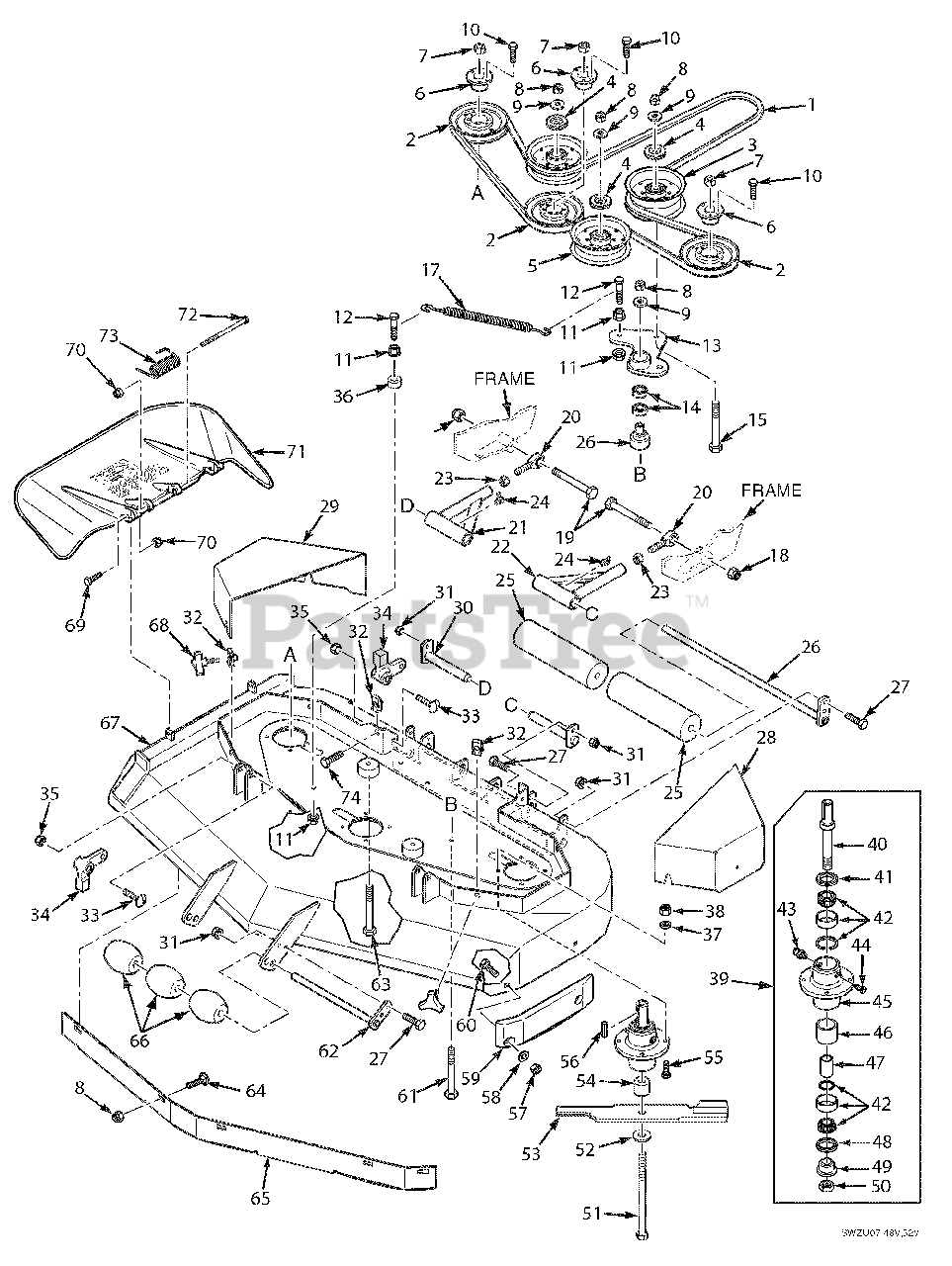

SWZV52V-19KAI - Scag Pro-V 52" Walk-Behind Mower, 19hp Kawasaki (SN: D4200001 - D4299999) 48V & 52V Cutter Decks Parts Diagram

Pro-V 52" Walk-Behind Mower, 19hp Kawasaki

48V & 52V Cutter Decks Parts Diagram

  • Title

1

Scag 483001

Cutter Deck Belt, SWZV 52V

$75.99

$

In Stock, only 3 left!

0

2

Scag 482744

Pulley, 5.75 O.D.

$30.99

$

Usually ships in 2-12 days

0

3

Scag 483210

Pulley, 5" Idler

$55.99

$

In Stock, only 2 left!

0

4

Scag 424367

Dust Shield

$2.49

$

In Stock, only 2 left!

0

5

Scag 483215

Pulley, 5" Idler

$60.99

$

In Stock, Qty 20+

0

6

Scag 48926

Tapered Hub, 1.125 Bore

$30.99

$

In Stock, Qty 20+

0

7

Scag 04020-09

Nut, 5/8-11 UNC

$0.99

$

In Stock, Qty 20+

0

8

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

9

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105 HD

$0.99

$

In Stock, Qty 20+

0

10

Scag 04001-172

Bolt, Heax Head 1/4-20 x 1" Grade 8

$0.99

$

In Stock, Qty 20+

0

11

Scag 04019-04

N ut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

12

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8

$0.99

$

In Stock, Qty 20+

0

13

Scag 461632

Idler Arm Assembly

Note: (Incl. #14)

$76.99

$

Usually ships in 2-12 days

0

14

Scag 48224

Bearing

$12.99

$

In Stock, Qty 20+

0

15

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3"

$0.99

$

In Stock, Qty 9

0

16

Scag 43660

Pivot, Idler

$37.99

$

Usually ships in 2-12 days

0

17

Scag 482797

Deck Spring

$67.99

$

In Stock, only 3 left!

0

18

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

19

Scag 04001-74

Bolt, Hex Head 1/2-13 x 3"

$1.99

$

In Stock, Qty 6

0

20

Scag 48542

Rod End, Male 1/2-20 RH Thread

$40.99

$

In Stock, only 2 left!

0

21

Scag 461756

Push Arm, RH
(Superseded to 462713)

Note: (Incl. #20, 23)

$140.99

$

Usually ships in 2-12 days

0

22

Scag 461755

Push Arm, LH
(Superseded to 462712)

Note: (Incl. #20, 23)

$128.99

$

In Stock, only 1 left!

0

23

Scag 04020-25

Nut, Jam 1/2-20

$0.99

$

In Stock, only 2 left!

0

24

Scag 48114-08

Grease Fitting, 90 Degree

$3.99

$

Usually ships in 2-12 days

0

25

Scag 48038

Guide Roller

$28.99

$

In Stock, only 2 left!

0

26

Scag 451118

Shaft Weldment

$42.99

$

Usually ships in 2-12 days

0

27

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

28

Scag 424655

Belt Cover, LH

$

$

Not available

29

Scag 424656

Belt Cover, RH

$84.99

$

In Stock, only 1 left!

0

30

Scag 451724

Push Arm Shaft

$35.99

$

In Stock, only 2 left!

0

31

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

32

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

33

Scag 04003-42

Bolt, Carriage 7/16-14 x 2-1/4"

$2.49

$

In Stock, only 3 left!

0

34

Scag 483361

Lever, Deck Level

$21.99

$

In Stock, only 1 left!

0

35

Scag 04021-11

Nut, Elastic Stop 7/16-14

$0.99

$

In Stock, Qty 10

0

36

Scag 43063

Spacer

$7.99

$

In Stock, only 2 left!

0

37

Scag 04030-03

Lockwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

38

Scag 04021-22

Nut, Elastic Stop 5/16-18 Grade 8

$0.99

$

In Stock, Qty 20+

0

39

Scag 461663

Spindle Assembly

$257.99

$

In Stock, Qty 20+

0

40

Scag 43589

Shaft, Spindle

$58.99

$

In Stock, only 1 left!

0

41

Scag 481024

Seal, Upper

$4.99

$

In Stock, Qty 20+

0

42

Scag 481022

Bearing Assembly

$59.99

$

In Stock, Qty 15

0

43

Scag 48114-04

Grease Fitting

$0.99

$

In Stock, Qty 20+

0

44

Scag 48677

Relief Fitting, Cutter Spindle

$

$

Not available

45

Scag 43644

Spindle Housing

$58.99

$

In Stock, only 2 left!

0

46

Scag 43312

Spacer, Ouside

$19.99

$

In Stock, only 1 left!

0

47

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

48

Scag 481025

Seal, Cutter Spindle Bottom

$4.99

$

In Stock, Qty 20+

0

49

Scag 43297

Spindle Bushing

$9.99

$

In Stock, only 2 left!

0

50

Scag 481035

Nut, Spindle

$7.99

$

In Stock, only 3 left!

0

51

Scag 04001-41

Bolt, Hex Head 5/8-11 x 9-1/2"

$12.99

$

In Stock, Qty 20+

0

52

Scag 04043-06

Flatwasher, 5/8"

$1.99

$

In Stock, Qty 20+

0

53

Scag 481707

Cutter Blade, 18"

Note: (52V)

$23.99

$

In Stock, Qty 20+

0

54

Scag 43590

Spacer, Spindle

$17.99

$

In Stock, Qty 20+

0

55

Scag 04001-176

Bolt, Hex Head 5/16-18 x 1-3/4" Grade 8

$0.99

$

In Stock, Qty 20+

0

56

Scag 04063-08

Key, 1/4 x 1/4 x 2"

$1.49

$

In Stock, Qty 20+

0

57

Scag 04021-04

Nut, Center Lock 5/16-18

$0.99

$

In Stock, Qty 20+

0

58

Scag 04040-04

Flatwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

59

Scag 483176

Pad, Deck Wear

$33.99

$

In Stock, Qty 20+

0

60

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

61

Scag 04001-62

Bolt, Hex Head 3/8-16 x 3-1/4"

$1.49

$

In Stock, Qty 12

0

62

Scag 45944

Shaft Weldment

$21.99

$

In Stock, Qty 20+

0

63

Scag 04001-51

Bolt, Hex Head 3/8-16 x 3-3/4"

$1.49

$

In Stock, Qty 8

0

64

Scag 04003-23

Bolt, Carriage 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

65

Scag 424840

Baffle, 52V

$101.99

$

Usually ships in 2-12 days

0

66

Scag 482295

Wheel, Anti-Scalp

$9.99

$

In Stock, Qty 20+

0

67

Scag 462125

Cutter Deck Weldment w/Decals, 52V

$1355.99

$

Usually ships in 2-12 days

0

68

Scag 481625-01

Knob w/Stud

$2.99

$

In Stock, Qty 20+

0

69

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

70

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

71

Scag 461845

Discharge Chute - 52V

$66.99

$

In Stock, only 1 left!

0

72

Scag 04001-154

Bolt, Hex Head 5/16-18 x 4-1/4"

$2.99

$

In Stock, Qty 20+

0

73

Scag 483378

Spring, Discharge Chute

$7.49

$

In Stock, only 4 left!

0

74

Scag 04107-03

Bolt, Hex Head 3/8-16 x 1-1/4" Special Lock

Note: (Rear)

$0.99

$

In Stock, Qty 5

0

Scag 04107-04

Bolt, Hex Head 3/8-16 x 2" Special Lock

Note: (Front)

$1.49

$

In Stock, Qty 8

0
