SWZV52V-19KAI - Scag Pro-V 52" Walk-Behind Mower, 19hp Kawasaki (SN: D4200001 - D4299999) 48" & 52" Cutter Deck Frame Parts Diagram

Pro-V 52" Walk-Behind Mower, 19hp Kawasaki

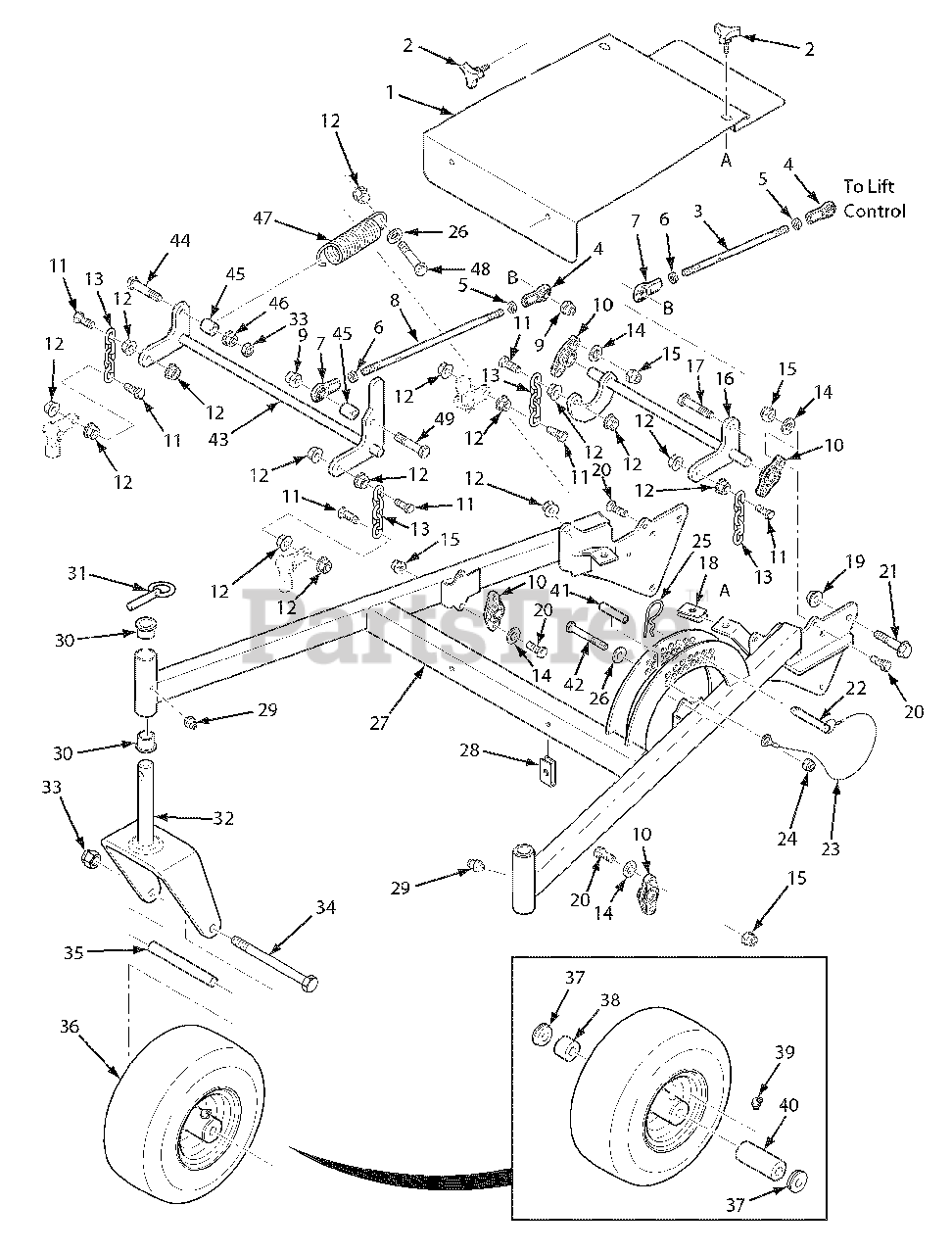

48" & 52" Cutter Deck Frame Parts Diagram

  • Title

1

Scag 462121

Belt Cover, 48V/52V

$96.99

$

Usually ships in 2-12 days

0

2

Scag 481625-01

Knob w/Stud

$2.99

$

In Stock, Qty 20+

0

3

Scag 483553

Linkage Assembly, Deck Lift

Note: (Incl. #4, 5, 6, 7)

$79.99

$

Usually ships in 2-12 days

0

Scag 483649

Link, Lift Rod

Note: (Rod Only)

$10.99

$

Usually ships in 2-12 days

0

4

Scag 483330

Rod End, 1/2-20 LH

$26.99

$

Usually ships in 2-12 days

0

5

Scag 04020-28

Nut, 1/2-20 UNF LH Jam

$3.49

$

In Stock, Qty 8

0

6

Scag 04020-27

Nut, 1/2-20 RH

$4.49

$

In Stock, Qty 5

0

7

Scag 483329

Rod End, 1/2-20 RH

$26.99

$

Usually ships in 2-12 days

0

8

Scag 483607

Linkage Assembly, Deck Lift

Note: (Incl. #4, 5, 6, 7)

$90.99

$

Usually ships in 2-12 days

0

Scag 483648

Link, Lift Rod

Note: (Rod Only)

$13.99

$

Usually ships in 2-12 days

0

9

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

10

Scag 483628

Bearing

$24.99

$

Usually ships in 2-12 days

0

11

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

12

Scag 04019-04

N ut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

13

Scag 48540

Chain
(Superseded to 482628)

$11.99

$

In Stock, Qty 5

0

14

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

15

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

16

Scag 451944

Rear Deck Lift Weldment

$131.99

$

Usually ships in 2-12 days

0

17

Scag 04001-52

Bolt, Hex Head 1/2-13 x 2-1/2"

$1.99

$

Usually ships in 2-12 days

0

18

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

19

Scag 04112-05

Nut, Spiral Lock 1/2-13

$2.99

$

Usually ships in 2-12 days

0

20

Scag 04001-10

Bolt, Hex Head 5/16-18 x 1-1/4"

$0.99

$

In Stock, Qty 14

0

21

Scag 04017-36

Capscrew, Serrated Flange 1/2-13 x 1"

$2.99

$

In Stock, only 2 left!

0

22

Scag 483345

Ring Pin Assembly

Note: (Incl. #23)

$11.99

$

In Stock, Qty 6

0

23

Scag 483346

Lanyard
(Superseded to 483345)

$11.99

$

In Stock, Qty 6

0

24

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

25

Scag 04062-04

Hair Pin Cotter, .177 x 3-1/4"

$1.99

$

In Stock, Qty 20+

0

26

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

27

Scag 462119

Frame Weldment, 52V

$795.99

$

Usually ships in 2-12 days

0

28

Scag 04110-04

U-Nut, 3/8-16

$5.99

$

In Stock, Qty 7

0

29

Scag 48114-05

Grease Fitting

$1.49

$

In Stock, Qty 9

0

30

Scag 48100-17

Bushing, 1.003 I.D.
(Superseded to 48100-08)

$5.49

$

In Stock, Qty 6

0

31

Scag 04066-01

Quick Pin

$8.99

$

In Stock, Qty 7

0

32

Scag 45325

Caster Wheel Yoke

$232.99

$

Usually ships in 2-12 days

0

33

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

34

Scag 04001-80

Bolt, Hex Head 1/2-13 x 6-1/2"

$5.99

$

In Stock, Qty 20+

0

35

Scag 43511

Sleeve, Caster Wheel

$15.99

$

In Stock, only 1 left!

0

36

Scag 9276

Caster Wheel Assembly

$112.99

$

Usually ships in 2-12 days

0

37

Scag 481770

Bearing, Oilite

$4.99

$

In Stock, Qty 20+

0

38

Scag 481846

Roller Bearing

Note: (Short)

$19.99

$

In Stock, only 2 left!

0

39

Scag 48114-03

Grease Fitting

$5.49

$

In Stock, Qty 6

0

40

Scag 481769

Roller Bearing

Note: (Long)

$28.99

$

In Stock, only 2 left!

0

41

Scag 43554

Spacer

$9.49

$

Usually ships in 2-12 days

0

42

Scag 04001-22

Bolt, Hex Head 3/8-16 x 2-3/4"

$1.49

$

In Stock, Qty 10

0

43

Scag 451943

Front Deck Lift Weldment

$131.99

$

Usually ships in 2-12 days

0

44

Scag 04001-74

Bolt, Hex Head 1/2-13 x 3"

$1.99

$

In Stock, Qty 6

0

45

Scag 43391

Spacer

$8.99

$

Usually ships in 2-12 days

0

46

Scag 04019-06

N ut, Serrated Flange 1/2-13

$0.99

$

In Stock, Qty 10

0

47

Scag 483374

Spring Deck Lift

$51.99

$

Usually ships in 2-12 days

0

48

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8

$0.99

$

In Stock, Qty 20+

0

49

Scag 04001-66

Bolt, Hex Head 1/2-13 x 2-3/4"

$2.99

$

Usually ships in 2-12 days

0
