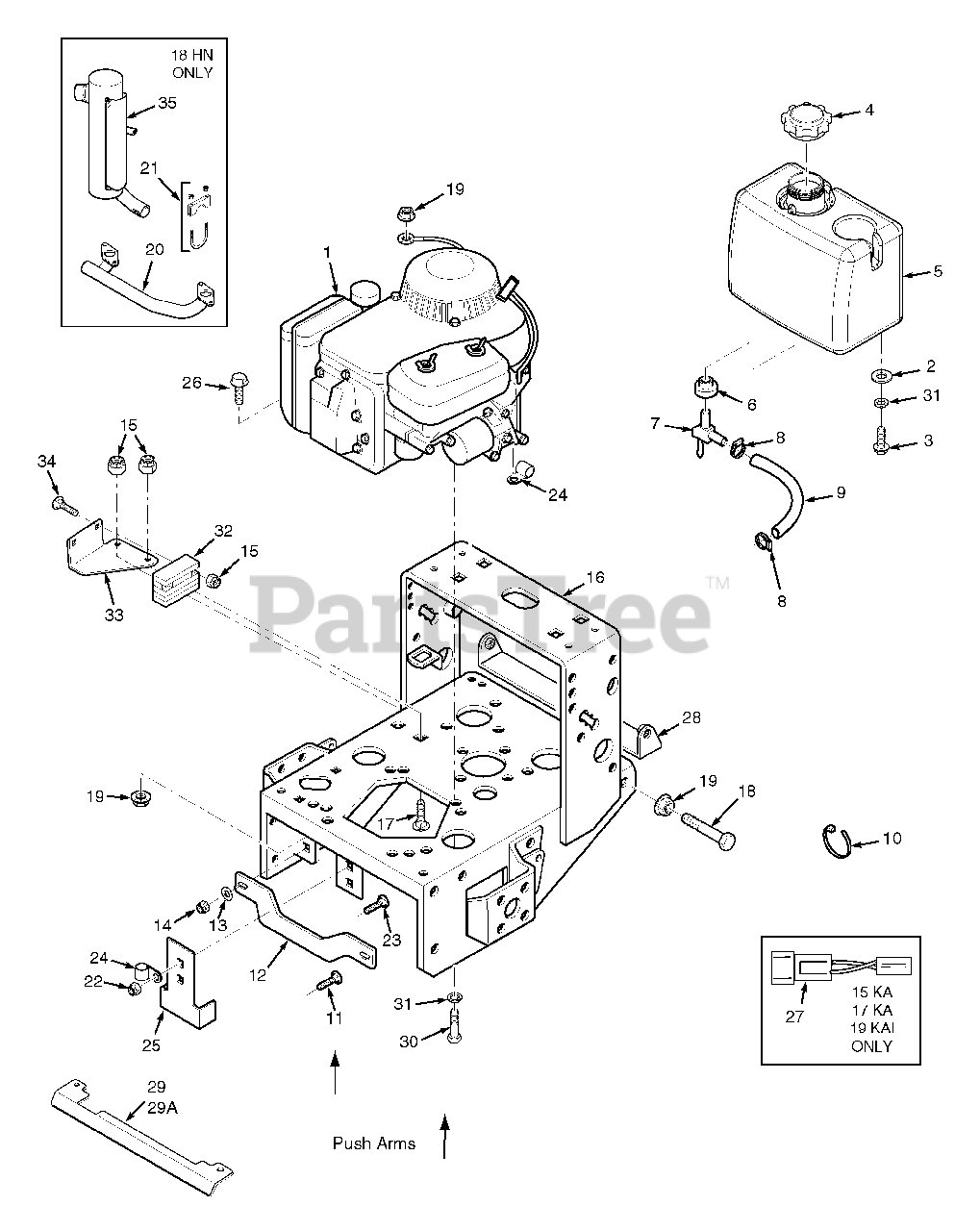

SWZU52A-18KH - Scag Ultimate 52" Walk-Behind Mower, 18hp Kohler (SN: A2900001 - A2999999) Engine Deck - Manual Start 18KH Parts Diagram

Ultimate 52" Walk-Behind Mower, 18hp Kohler

Engine Deck - Manual Start 18KH Parts Diagram

  • Title

1

Scag 482804

Engine, 15KA Kawasaki

Note: Not used on this model

$

$

Currently unavailable

Scag 482854

Engine, 18KH Kohler

$

$

Currently unavailable

2

Scag 04040-15

Flatwasher, 5/16 (.375 x .875 x .083)

$0.99

$

In Stock, Qty 20+

0

3

Scag 04001-09

Capscrew, 5/16-18 x 1" Hex Head

$0.99

$

In Stock, Qty 20+

0

4

Scag 482547

Cap, Fuel Tank
(Superseded to 483792)

$27.99

$

In Stock, only 4 left!

0

5

Scag 461729

Fuel Tank Assy. (incl. 8, 9)
(Superseded to 462289)

$315.99

$

Usually ships in 2-12 days

0

6

Scag 48309

Bushing
(Superseded to 482571)

$12.99

$

In Stock, Qty 20+

0

7

Scag 48308

Valve, Fuel Shut-off
(Superseded to 483747)

$30.99

$

In Stock, only 4 left!

0

8

Scag 48059-01

Clamp, Fuel Hose

$0.99

$

In Stock, Qty 7

0

9

Scag 48058

Fuel Hose, 1/4 ID x 23"
(Superseded to 483617)

Note: Not used on this model

$0.99

$

In Stock, Qty 20+

0

Scag 48058

Fuel Hose, 1/4 ID x 11"
(Superseded to 483617)

$0.99

$

In Stock, Qty 20+

0

10

Scag 48028-05

Cable Tie

$

$

Not available

11

Scag 04003-11

Carriage Bolt, 3/8-16 X 1-1/4"

$0.99

$

In Stock, Qty 7

0

12

Scag 423748

Brace

$9.49

$

Usually ships in 2-12 days

0

13

Scag 04043-04

Flat Washer .391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

14

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

15

Scag 04021-08

Nut, 1/4-20 Elastic Stop

$0.99

$

In Stock, Qty 10

0

16

Scag 461745

Engine Deck, 16" Wide, w/decals

$643.99

$

Usually ships in 2-12 days

0

17

Scag 04003-09

Bolt, 1/4-20 x 1-1/4" Carriage

$0.99

$

In Stock, Qty 9

0

18

Scag 04001-17

Bolt, 5/16-18 x 2" Hex Head

$0.99

$

In Stock, Qty 6

0

19

Scag 04019-03

Nut, 5/16-18 Serr. Flange

$0.99

$

In Stock, Qty 20+

0

20

Scag 482902

Manifold, Exhaust

Note: Not used on this model

$130.99

$

Usually ships in 2-12 days

0

21

Scag 482903

Clamp, Muffler

Note: Not used on this model

$6.99

$

Usually ships in 2-12 days

0

22

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

23

Scag 04003-04

Carriage Bolt, 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

24

Scag 48030-09

Clamp

$1.49

$

In Stock, Qty 5

0

25

Scag 421370

Clutch Bracket

$22.99

$

Usually ships in 2-12 days

0

26

Scag 04017-19

Cap Scrw, 5/16-18 x 1.50" Sr. Flg

$1.49

$

Usually ships in 2-12 days

0

27

Scag 481717

Wire Hrns. Adapter, 15KA, 17KA & 19 KAI

$13.99

$

Usually ships in 2-12 days

0

28

Scag 45418

Pulley Guard, 16" Frame

$57.99

$

Usually ships in 2-12 days

0

29

Scag 423476

Heatshield

Note: Not used on this model

$76.99

$

Usually ships in 2-12 days

0

29A

Scag 424125

Heatshield

$37.99

$

Usually ships in 2-12 days

0

30

Scag 04017-19

Bolt, 5/16-18 x 1" Serrated Flange Hex Head

$1.49

$

Usually ships in 2-12 days

0

31

Scag 04030-03

Lock Washer 5/16"

$0.99

$

In Stock, Qty 20+

0

32

Rectifier (Purchase from Honda, p/n 31750-769-751)

Note: Not used on this model

$

$

Not available

33

Scag 423943

Mounting Bracket, Rectifier

Note: Not used on this model

$43.99

$

Usually ships in 2-12 days

0

34

Scag 04003-06

Bolt, 1/4-20 x 1" Carriage

Note: Not used on this model

$0.99

$

In Stock, Qty 6

0

35

Scag 482901

Muffler

Note: Not used on this model

$689.99

$

Usually ships in 2-12 days
