SWZU52A-17KA - Scag Ultimate 52" Walk-Behind Mower, 17hp Kawasaki (SN: 7420001 - 7429999) Drive And Brake Components Parts Diagram

Ultimate 52" Walk-Behind Mower, 17hp Kawasaki

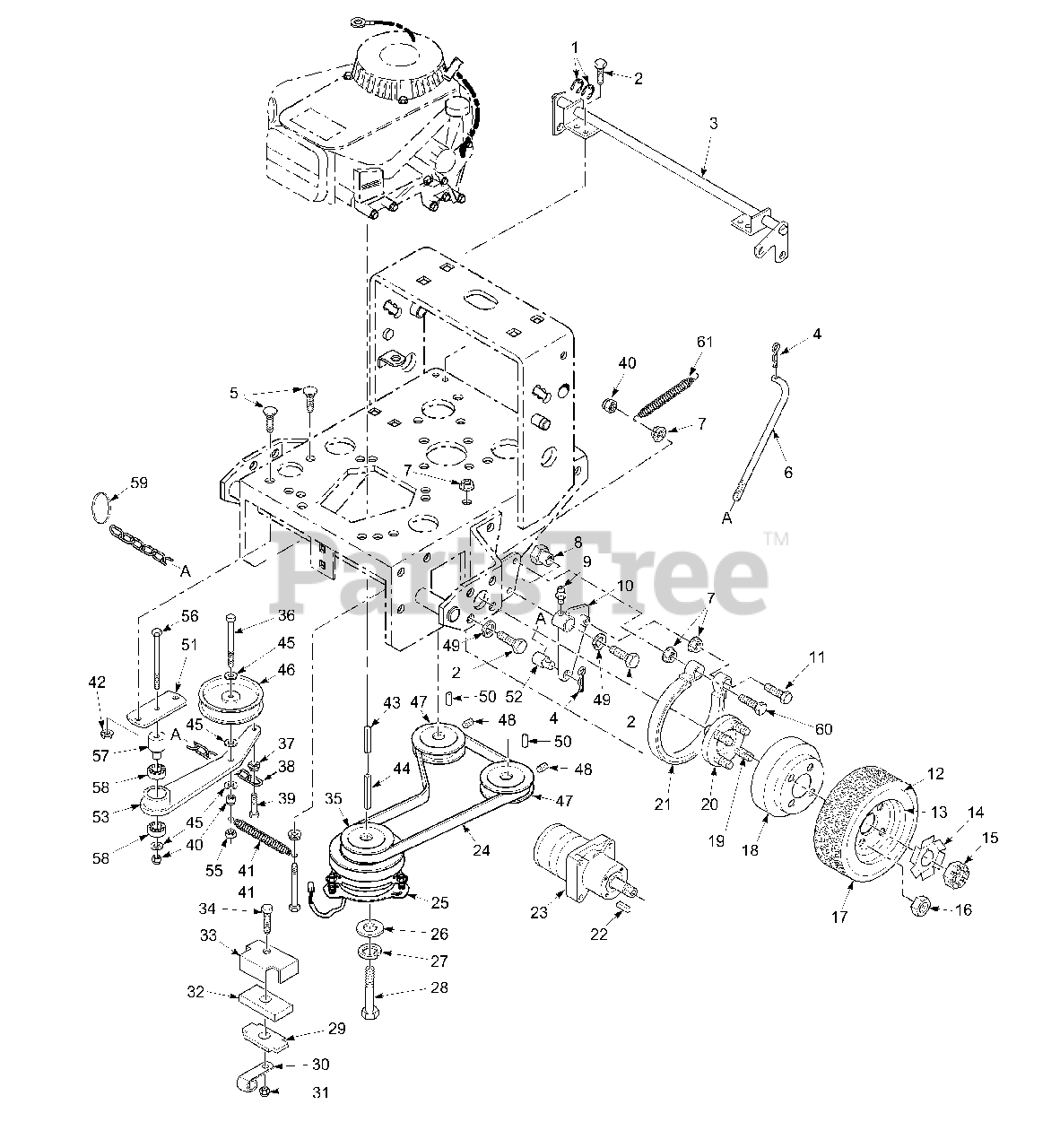

Drive And Brake Components Parts Diagram

  • Title

1

Scag 04050-02

Retaining Ring, 3/4" Ext. "E"

$0.99

$

In Stock, Qty 7

0

2

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 6

0

3

Scag 45842

Brake Shaft Assembly Weldment

$44.99

$

In Stock, only 1 left!

0

4

Scag 04062-01

Hair Pin, Cotter (.094 x 1.62)

$0.99

$

In Stock, Qty 20+

0

5

Scag 04003-12

Bolt, Carriage 5/16-18 x .75"

$0.99

$

In Stock, Qty 20+

0

6

Scag 44126

Brake Rod, Lower

$6.99

$

In Stock, only 1 left!

0

7

Scag 04019-04

Nut, Hex Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

8

Scag 43415

Bushing, Brake

$7.49

$

Usually ships in 2-12 days

0

9

Scag 48114-05

Grease Fitting

$1.49

$

In Stock, Qty 9

0

10

Scag 45860

Brake Actuator Weldment, LH

$41.99

$

Usually ships in 2-12 days

0

Scag 45861

Brake Actuator Weldment, RH

$39.99

$

Usually ships in 2-12 days

0

11

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2.25"

$0.99

$

In Stock, Qty 20+

0

12

Scag 481869

Tire, 18 x 8.50-8, 4 Ply

$216.99

$

Usually ships in 2-12 days

0

13

Scag 481868

Rim Assembly

$185.99

$

Usually ships in 2-12 days

0

14

Scag 422214

Lockwasher, Wheel Motor

$4.49

$

In Stock, only 1 left!

0

15

Scag 48679

Nut, Hex Castle 3/4-28

$26.99

$

Usually ships in 2-12 days

0

16

Scag 04028-01

Nut, Lug

$1.49

$

In Stock, Qty 14

0

17

Scag 481867

Wheel Assembly

Note: (#12 tire mounted to #13 rim)

$318.99

$

Usually ships in 2-12 days

0

18

Scag 422215

Brake Drum

$29.99

$

Usually ships in 2-12 days

0

19

Scag 04008-01

1/2-20 Serrated Bolt

$3.49

$

In Stock, Qty 20+

0

20

Scag 46928

Hub,Wheel

$133.99

$

Usually ships in 2-12 days

0

21

Scag 481470

Brake Band, 7.5"

$53.99

$

Usually ships in 2-12 days

0

22

Scag 04063-07

Key, Woodruff 3/16 x .75"

$0.99

$

In Stock, Qty 12

0

23

Scag 481416

Wheel Motor

$601.99

$

Usually ships in 2-12 days

0

24

Scag 481837

Belt, Pump Drive

$41.99

$

In Stock, only 1 left!

0

25

Scag 461397

Electric Clutch

$306.99

$

In Stock, only 1 left!

0

26

Scag 04041-28

Flatwasher, 7/16" (.469 x 1.75 x .25)

$2.99

$

In Stock, Qty 12

0

27

Scag 04030-05

Lockwasher, 7/16" Spring

$0.99

$

In Stock, Qty 5

0

28

Scag 04103-05

Bolt, Hex Head M10-1.5 x 65mm

$1.99

$

Usually ships in 2-12 days

0

29

Scag 422534

Plate, Backing

$5.49

$

In Stock, only 1 left!

0

30

Scag 48030-09

Clamp, Wire Loom

$1.49

$

In Stock, Qty 5

0

31

Scag 04021-10

Nut, Hex Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

32

Scag 481716

Rubber Pad, Clutch Stop

$11.99

$

Usually ships in 2-12 days

0

33

Scag 422533

Retainer, Clutch Stop

$13.99

$

In Stock, only 1 left!

0

34

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1.75"

$0.99

$

In Stock, Qty 20+

0

35

Scag 481934

Pulley,Pump Drive-Engine
(Superseded to 482754)

$138.99

$

Usually ships in 2-12 days

0

36

Scag 04001-22

Bolt, Hex Head 3/8-16 x 2.75"

$1.49

$

In Stock, Qty 10

0

37

Scag 04019-02

Nut, Hex Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

38

Scag 481873

Chain

$7.49

$

In Stock, only 1 left!

0

39

Scag 04001-59

Bolt, Hex Head 1/4-20 x 1.25"

$0.99

$

In Stock, Qty 5

0

40

Scag 04021-09

Nut, Hex Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

41

Scag 481835

Spring, Pump Belt Idler
(Superseded to 483526)

$25.99

$

In Stock, only 3 left!

0

42

Scag 04019-03

Nut, Hex Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

43

Scag 04063-24

Key, 1/4 x 1/4 x 2.75"

$1.99

$

In Stock, only 3 left!

0

44

Scag 04063-20

Key, 1/4 x 1/4 x 1"

$1.49

$

In Stock, Qty 5

0

45

Scag 04043-04

Flatwasher, 3/8" (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

46

Scag 482306

Pulley, Idler 4.5"
(Superseded to 483213)

$52.99

$

Usually ships in 2-12 days

0

47

Scag 48586

Pulley, Pump Shaft
(Superseded to 482751)

$103.99

$

In Stock, only 1 left!

0

48

Scag 04012-04

Setscrew, 5/16-18 x 3/8"

$0.99

$

In Stock, Qty 14

0

49

Scag 04030-04

Lockwasher, 3/8" Spring

$0.99

$

In Stock, Qty 7

0

50

Scag 04063-14

Key, 5mm x 5mm x 25mm

$0.99

$

In Stock, Qty 5

0

51

Scag 422713

Base, Idler Pivot

$13.99

$

In Stock, only 1 left!

0

52

Scag 43032

Swivel Joint

$6.49

$

In Stock, Qty 7

0

53

Scag 461183

Idler Arm Weldment, Pump
(Superseded to 461783)

$77.99

$

Usually ships in 2-12 days

0

?54

Scag 04001-77

Bolt, Hex Head 3/8-16 x 3.5"

$1.49

$

In Stock, Qty 7

0

55

Scag 04021-05

Locknut, 3/8-16 Center Lock

$0.99

$

In Stock, Qty 20+

0

56

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3"

$0.99

$

In Stock, Qty 9

0

57

Scag 43504

Pivot, Idler (Long)

$28.99

$

In Stock, only 1 left!

0

58

Scag 48224

Ball Bearings

$12.99

$

In Stock, Qty 20+

0

59

Scag 481876

Ring, Split

$5.49

$

In Stock, only 2 left!

0

60

Scag 04001-151

Bolt, Hex Head 3/8-16 x 2.63"

$4.49

$

Usually ships in 2-12 days

0

61

Scag 48494-02

Spring, Return

$6.49

$

In Stock, only 1 left!

0
